Beretta 486 20G Parts Guide
5 exploded diagrams, exact Beretta codes and linked spare parts for Beretta 486 20G.
Action / frame
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 10 | |||
| 11 | C5B418 | Not Available | CONNECTING LEVER LEFT LH SX 486 PARALLELO NEWSON GA 20 AND 28 |
| 12 | C5B414 | Not Available | CONNECTING LEVER RIGHT RH DX - 486 PARALLELO GA 20 AND 28 |
| 13 | C5F023 | Not Available | SEAR LEVER LEFT LH SX GA 20 |
| 14 | C5F022 | Not Available | SEAR LEVER RIGHT RH DX GA 20 |
| 15 | C5E058 | Not Available | LEVER SPRING RH |
| 16 | |||
| 17 | C5E355 | Not Available | SCREW GA20 |
| 18 | C5E356 | Not Available | TOP LEVER GA20 |
| 19 | C5E259 | Not Available | HINGE PIN GA20 |
| 20 | C5D931 | Not Available | TOP LEVER SCREW |
| 21 | C5E037 | Not Available | TOP LEVER SPRING PIN |
| 22 | |||
| 23 | C5E352 | Not Available | SCREW 486 GA 20 |
| 24 | C5D958C5E012C5E222 | Not Available Not Available Not Available | BOLT ENLARGED GA 20 - GA 28 +0.15 486 LOCKING BOLT GA 20 - GA 28 ENLARGED +0.30 486 LOCKING BOLT GA 20 - GA 28 486 |
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | C5E369 | Not Available | SELECTOR LEVER SINGLE SELECTIVE TRIGGER - 486 GA 20/28 |
| 29 | C92008 | Not Available | PIN |
| 30 | C5B592 | Not Available | SAFETY PALM CHROMED |
| 31 | |||
| 32 | |||
| 33 | C5B471 | Not Available | SAFETY LEVER - 486 GA 20 |
| 34 | |||
| 35 | C8C013 | Not Available | SAFETY ASSY - 486 GA 20 AND GA 28 |
| 6 | C95445 | Not Available | FIRING PIN SPRING - 486 GA 12 - 20 - 28 |
| 7 | C5E725 | Not Available | FIRING PIN GA20 |
| 8 | C95457 | Not Available | SPINA 2X6 SPINA 2X5,5 |
| 9 |

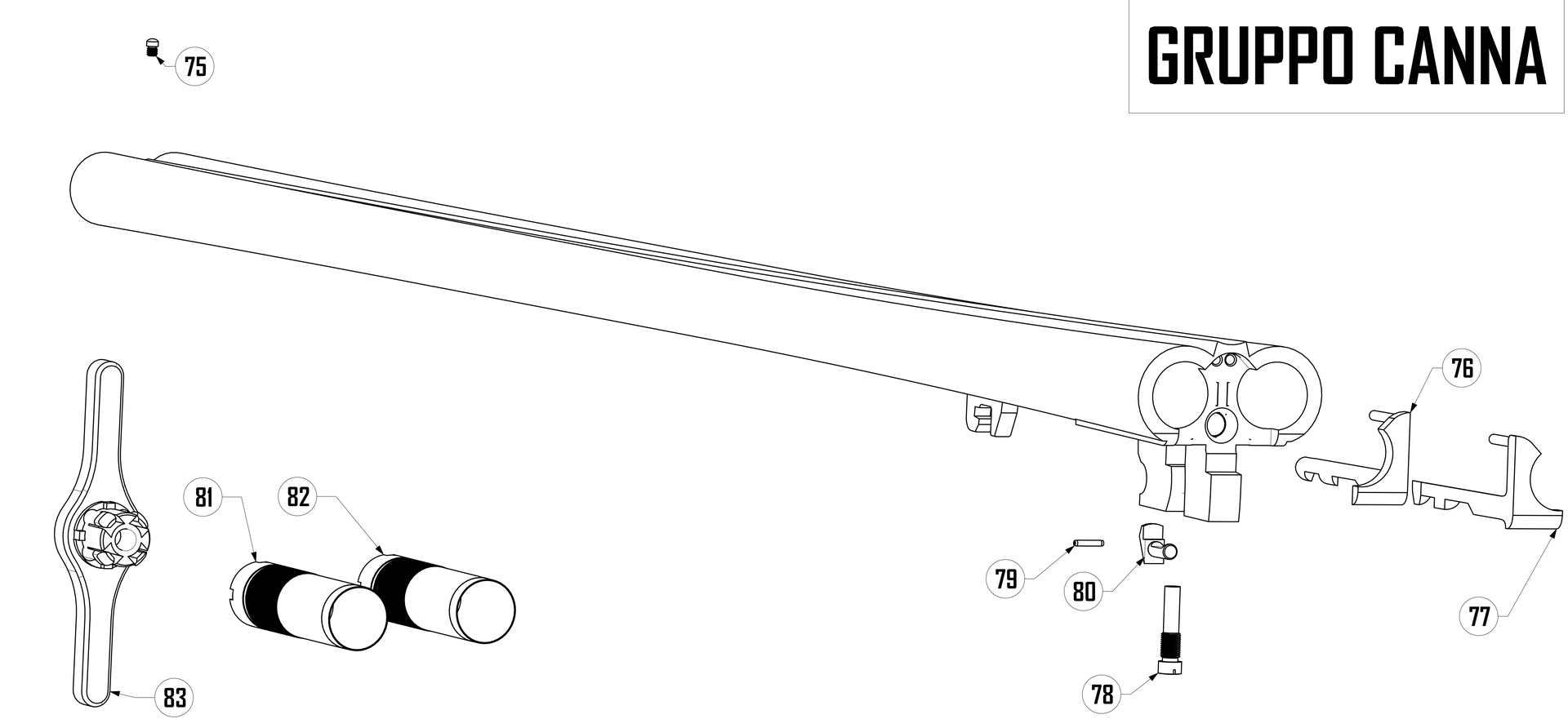

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 75 | C53674 | Not Available | FRONT SIGHT FOR SIDE BY SIDE SHOTGUN 486 - 625 |
| 76 | C76624 | Not Available | EJECTOR RH GA20 |
| 77 | C76623 | Not Available | EJECTOR LH GA20 |
| 78 | C5E283 | Not Available | EJECTOR STOP SCREW PARALLELO 486 GA 12 - 20 - 28 |
| 79 | |||
| 80 | C5E282 | Not Available | NOSE SIDE BY SIDE PARALLELO 486 GA 12 - 20 -28 |
Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 100 | C58006 | Not Available | SELECTOR |
| 101 | C58008 | Not Available | HAMMER STOP LEVER LEFT SX 470 |
| 102 | |||
| 103 | C53132 | Not Available | HAMMER LEVER LEFT LH SX - 426 470 471 486 VARIOUS GAUGES |
| 104 | C53131 | Not Available | HAMMER LEVER RIGHT 426 626 |
| 105 | |||
| 106 | C58007 | Not Available | HAMMER STOP LEVER 470 |
| 107 | |||
| 108 | C92065 | Not Available | PIN |
| 109 | |||
| 110 | C92071 | Not Available | PIN |
| 111 | C5F501 | Not Available | HAMMER RIGHT SIDE BY SIDE 486 |
| 112 | C5F502 | Not Available | HAMMER LEFT SIDE BY SIDE 486 |
| 113 | C52931 | Not Available | HAMMER SPRING GUIDE 626 |
| 114 | |||
| 115 | C5F357C5F384 | Not Available Not Available | FOREND BEAVERTAIL OIL FINISH - 486 20 GA FOREND STANDARD - 486 20 GA |
| 90 | C5D899 | Not Available | BUTTON FOREND SIDE BY SIDE PARALLELO 486 GA 12 - 20 -28 |
| 91 | C5D960 | Not Available | SCREW FOREND SIDE BY SIDE PARALLELO 486 GA 12 - 20 - 28 |
| 92 | C5D965 | Not Available | SPRING FOR FOREND BUTTON SIDE BY SIDE PARALLELO 486 CAL 12 - 20 - 28 |
| 93 | C5F353 | Not Available | FOREND BLOCK GA20 |
| 94 | C5D955 | Not Available | CROCE CAL.20 PARALLELO CROCE CAL.20 PARALLELO |
| 95 | |||
| 96 | |||
| 97 | C95125 | Not Available | SCREW |
| 98 | C5D948 | Not Available | PIASTRINA CROCE PIASTRINA CROCE |
| 99 | C95126 | Not Available | SCREW PLATE GUIDE 626 SIDE BY SIDE PARALLELO 486 |

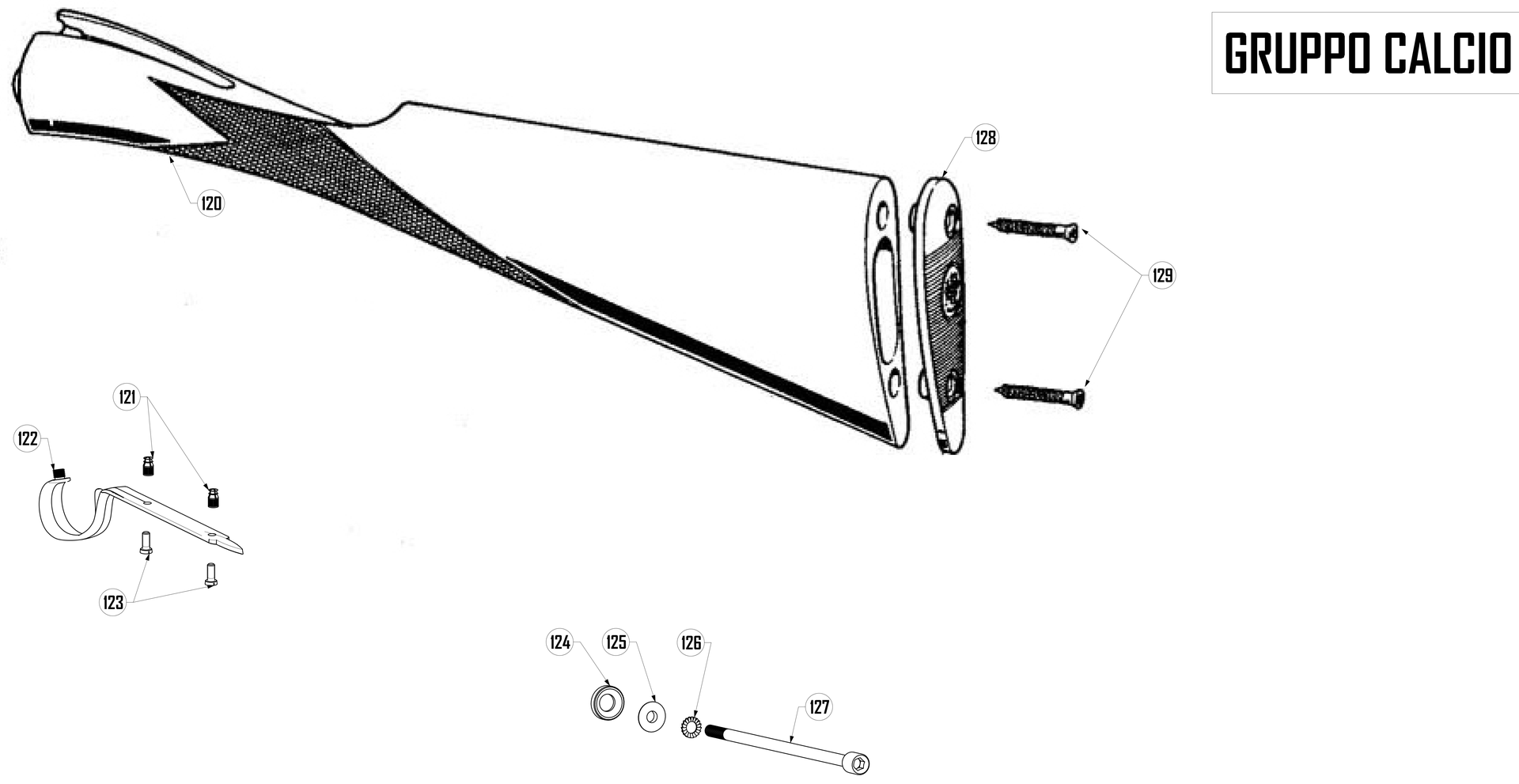

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 120 | C5F385C5F399C8C014C8C017 | Not Available Not Available Not Available Not Available | STOCK P 20 GA STOCK ENGLISH GRIP 486 20 GA ENGLISH STOCK OIL FINISH RIGHT HAND DX 486 GA 20 AND 486 GA 28 STOCK PISTOL GRIP OIL FINISH RIGHT HAND DX - 486 GA 20 AND 486 GA 28 |
| 123 | C8A120 | Not Available | TRIGGER GUARD ASSY - 486 PARALLELO GA 20 |
| 124 | C58038 | Not Available | WASHER ADJUSTABLE STOCK 12 GA S682 |
| 125 | |||
| 126 | |||
| 127 | |||
| 128 | C5F435 | Not Available | RECOIL PAD WOOD THIN OIL FINISH - 486 GA 20 AND 486 GA 28 |
| 129 |

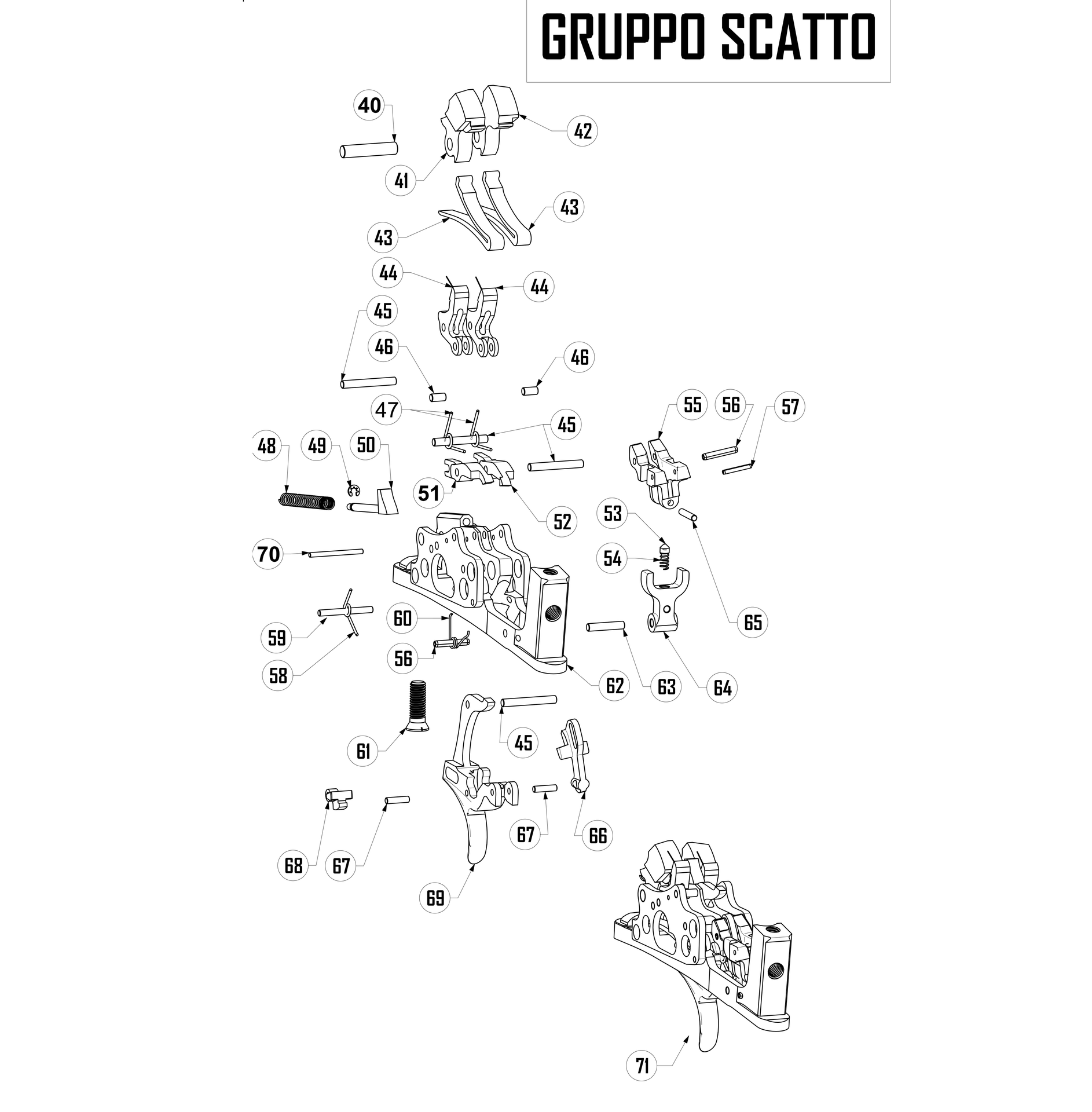

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 40 | |||
| 41 | C5E358 | Not Available | HAMMER LEFT LH SX - 485 GA 20 |
| 42 | C5E359 | Not Available | HAMMER RIGHT RH DX - 486 GA20 |
| 43 | C5E998 | Not Available | HAMMER SPRING 486 GA 12 - 20 - 28 |
| 44 | C5D901 | Not Available | SEAR LEVER 486 GA 12 - 20 - 28 |
| 45 | C95453 | Not Available | PERNO 2,5X19 PERNO 2,5X19 |
| 46 | C95458 | Not Available | SPINA 2,5X5 SPINA 2,5X5 |
| 47 | |||
| 48 | |||
| 49 | C5B751 | Not Available | RING SWIVEL |
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | C92106 | Not Available | INERTIA SPRING PIN SINGLE SELECTIVE TRIGGER - 627EELL |
| 54 | C90097 | Not Available | INERTIA SPRING SINGLE SELECTIVE TRIGGER - 426 625 |
| 55 | C5E366 | Not Available | MASS GA 20 |
| 56 | |||
| 57 | C97084 | Not Available | ELASTIC PIN 1,50X10 UNI 6876 |
| 58 | C5E044 | Not Available | TRIGGER SPRING 486 PARALLELO |
| 59 | C95451 | Not Available | PERNO 2X19 PERNO 2X19 |
| 60 | |||
| 61 | C5E052 | Not Available | SCREW - TRIGGER GUARD |
| 62 | C5E013 | Not Available | TRIGGER GUARD SINGLE SELECTIVE TRIGGER - 486 GA 20 - GA 28 |
| 63 | C95448 | Not Available | MASS SUPPORT PIN 2,5X13 |
| 64 | |||
| 65 | C92133 | Not Available | MASS STOP PIN 2X10 - 486 GA 20 |
| 66 | |||
| 67 | C92373 | Not Available | PIN 2X8 - 466 PARALLELO GA 12 |
| 68 | C5D923 | Not Available | TRIGGER STOP 486 GA 12 |
| 69 | C5E361 | Not Available | TRIGGER, SINGLE SELECTIVE SST 486 GA 20 - GA 28 |
| 70 | C95450 | Not Available | SPINA 1,5X19 SPINA 1,5X19 |
| 71 | C8A100 | Not Available | TRIGGER GROUP ASSY SIDE BY SIDE PARALLELO 486 GA 12 AND GA 20 SINGLE SELECTIVE TRIGGER |
