Beretta 486 12G Parts Guide
5 exploded diagrams, exact Beretta codes and linked spare parts for Beretta 486 12G.

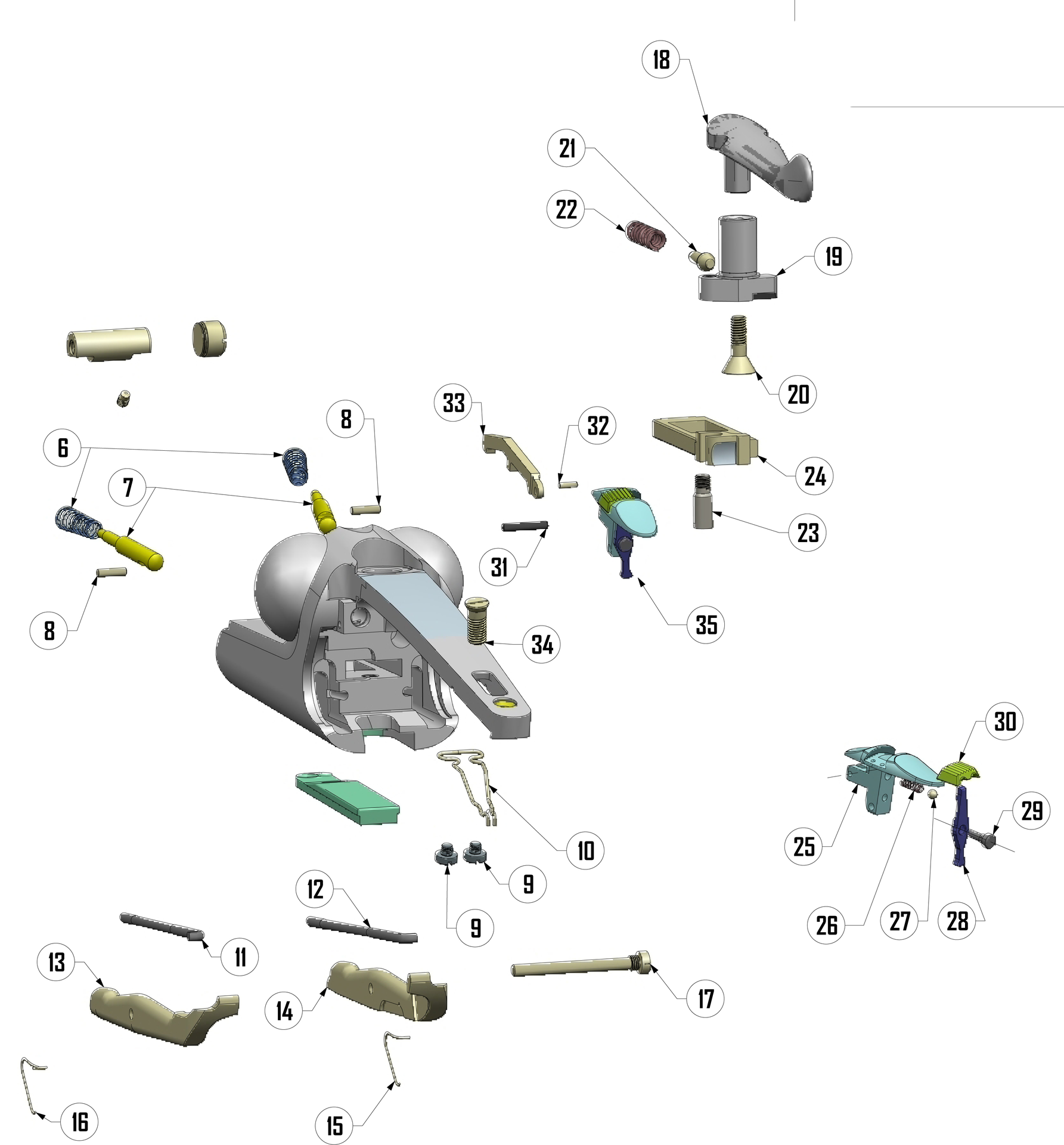

Action / frame
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 10 | |||
| 11 | |||
| 12 | C5F200 | Not Available | CONNECTING ROD LEFT LH SX GA12 |
| 13 | C5D913 | Not Available | LEVER LF |
| 14 | C5D912 | Not Available | LEVER RH |
| 15 | C5E058 | Not Available | LEVER SPRING RH |
| 16 | |||
| 17 | C5D990 | Not Available | SCREW |
| 18 | C5D917 | Not Available | TOP LEVER |
| 19 | |||
| 20 | C5D931 | Not Available | TOP LEVER SCREW |
| 21 | C5E037 | Not Available | TOP LEVER SPRING PIN |
| 22 | |||
| 23 | C5D916 | Not Available | LOCKING BLOCK SCREW - 486 PARALLELO GA 12 |
| 24 | C5B590C5B591 | Not Available Not Available | LOCKING BLOCK OVERSIZED +0.15 - 486 GA 12 LOCKING BLOCK OVERSIZED +0.30 - 486 GA 12 |
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | C5D918 | Not Available | LEVA SELETTORE LEVA SELETTORE |
| 29 | C92008 | Not Available | PIN |
| 30 | C5B592 | Not Available | SAFETY PALM CHROMED |
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 6 | C95445 | Not Available | FIRING PIN SPRING - 486 GA 12 - 20 - 28 |
| 7 | |||
| 8 | C92373 | Not Available | PIN 2X8 - 466 PARALLELO GA 12 |
| 9 |

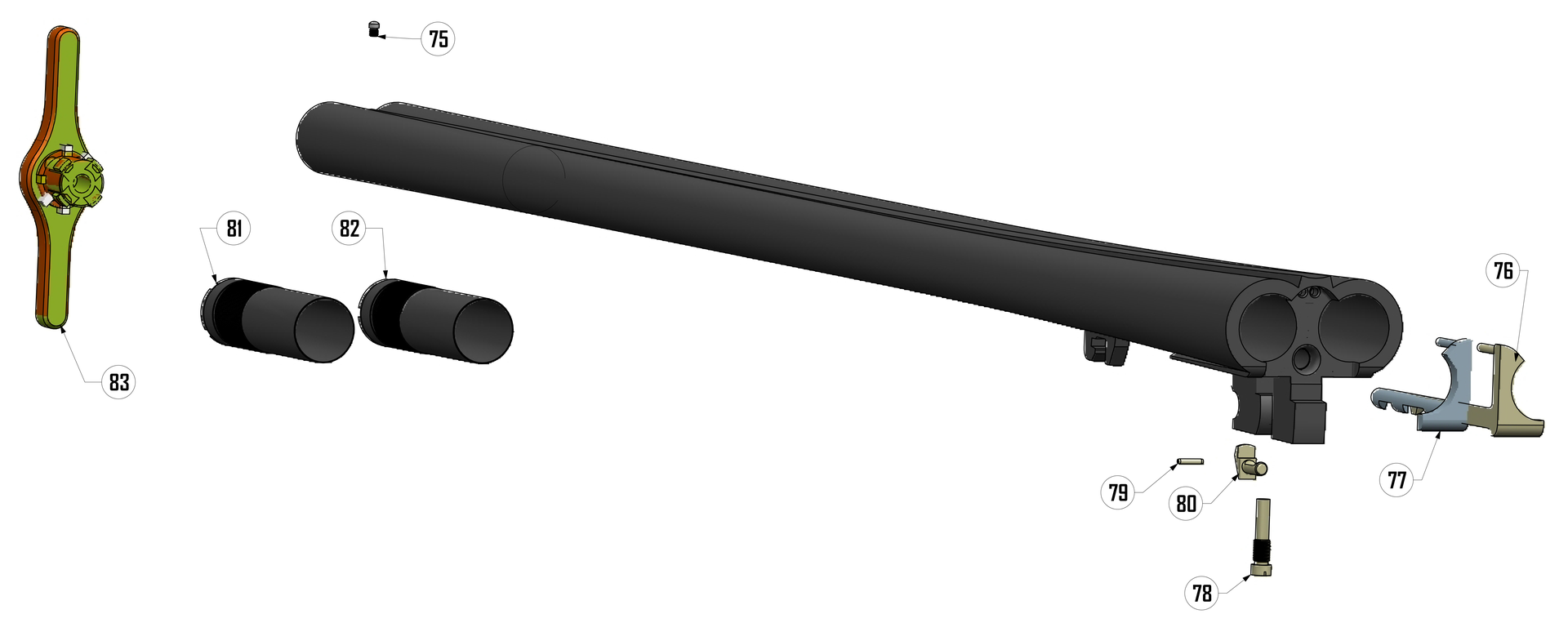

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 75 | C53674 | Not Available | FRONT SIGHT FOR SIDE BY SIDE SHOTGUN 486 - 625 |
| 76 | |||
| 77 | |||
| 78 | C5E283 | Not Available | EJECTOR STOP SCREW PARALLELO 486 GA 12 - 20 - 28 |
| 79 | |||
| 80 | C5E282 | Not Available | NOSE SIDE BY SIDE PARALLELO 486 GA 12 - 20 -28 |

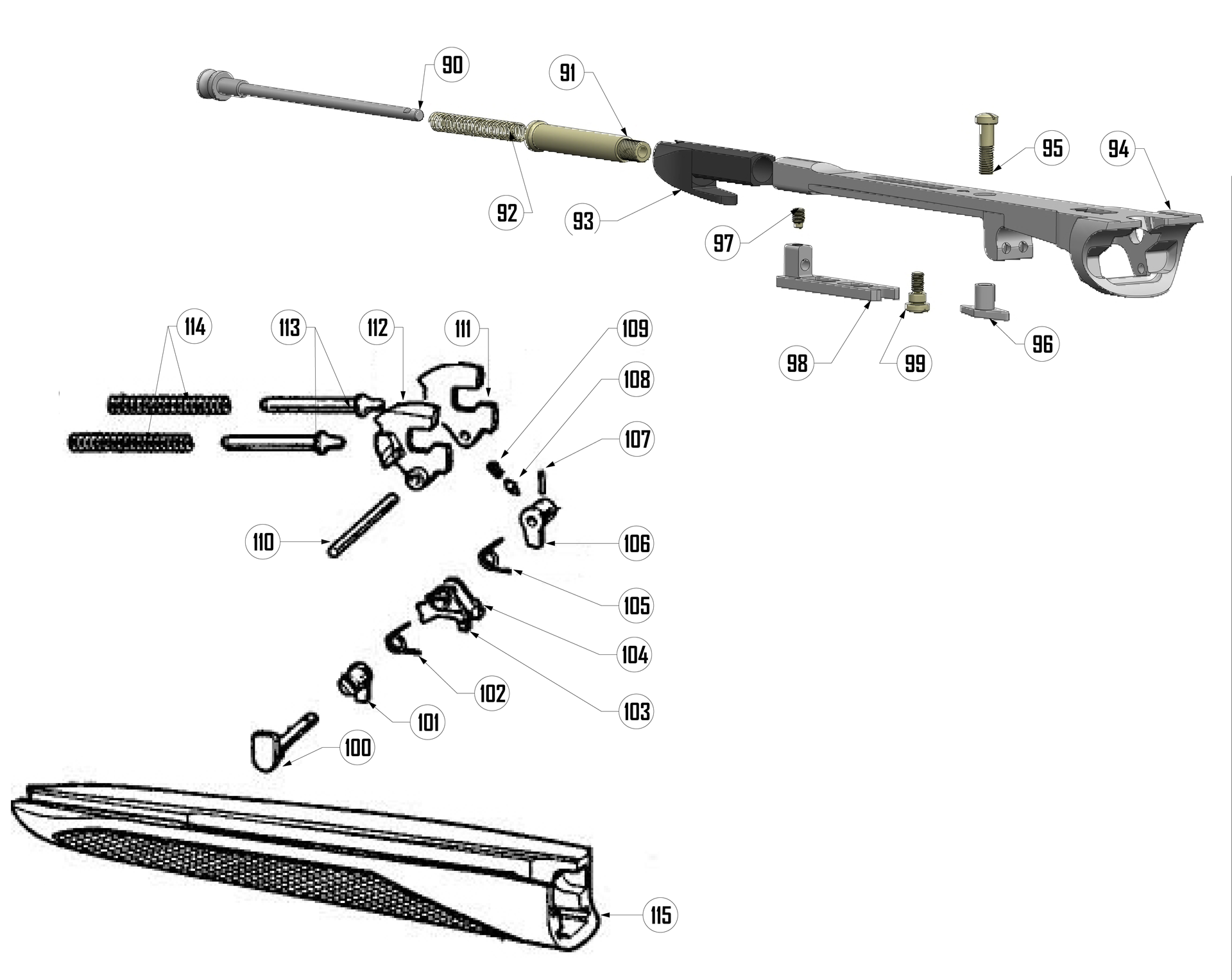

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 100 | C58006 | Not Available | SELECTOR |
| 101 | C58008 | Not Available | HAMMER STOP LEVER LEFT SX 470 |
| 102 | |||
| 103 | C53132 | Not Available | HAMMER LEVER LEFT LH SX - 426 470 471 486 VARIOUS GAUGES |
| 104 | C53131 | Not Available | HAMMER LEVER RIGHT 426 626 |
| 105 | |||
| 106 | C58007 | Not Available | HAMMER STOP LEVER 470 |
| 107 | |||
| 108 | C92065 | Not Available | PIN |
| 109 | |||
| 110 | C92071 | Not Available | PIN |
| 111 | C5F501 | Not Available | HAMMER RIGHT SIDE BY SIDE 486 |
| 112 | C5F502 | Not Available | HAMMER LEFT SIDE BY SIDE 486 |
| 113 | C52931 | Not Available | HAMMER SPRING GUIDE 626 |
| 114 | |||
| 115 | C5F217C5F500C8B277C8B281 | Not Available Not Available Not Available Not Available | FOREND BEAVERTAIL 486 12 GA FOREND STANDARD 486 12 GA SET STOCK PISTOL GRIP 37/59 RH RIGHT HAND AND BEAVERTAIL FOREND 12 GA 486 SET ENGLISH STOCK 37/59 RIGHT HAND RH DX OIL FINISH AND FOREND - 486 GA 12 |
| 90 | C5D899 | Not Available | BUTTON FOREND SIDE BY SIDE PARALLELO 486 GA 12 - 20 -28 |
| 91 | C5D960 | Not Available | SCREW FOREND SIDE BY SIDE PARALLELO 486 GA 12 - 20 - 28 |
| 92 | C5D965 | Not Available | SPRING FOR FOREND BUTTON SIDE BY SIDE PARALLELO 486 CAL 12 - 20 - 28 |
| 93 | C5E017 | Not Available | FORE-END COVER GA 12 |
| 95 | |||
| 96 | |||
| 97 | C95125 | Not Available | SCREW |
| 98 | C5D948 | Not Available | PIASTRINA CROCE PIASTRINA CROCE |
| 99 | C95126 | Not Available | SCREW PLATE GUIDE 626 SIDE BY SIDE PARALLELO 486 |

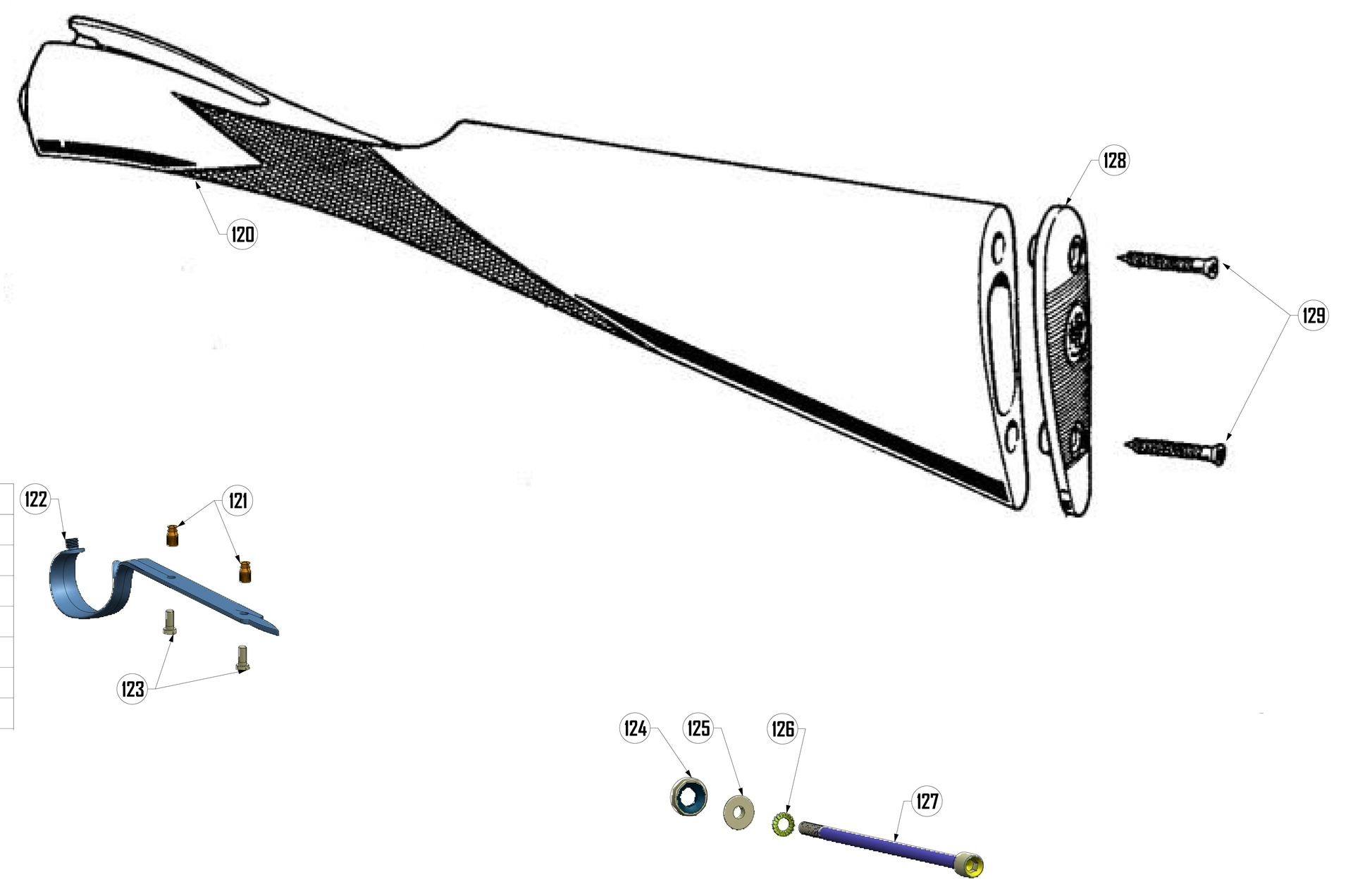

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 120 | C8B277C8B281C8B288 | Not Available Not Available Not Available | SET STOCK PISTOL GRIP 37/59 RH RIGHT HAND AND BEAVERTAIL FOREND 12 GA 486 SET ENGLISH STOCK 37/59 RIGHT HAND RH DX OIL FINISH AND FOREND - 486 GA 12 ENGLISH STOCK 37/59 RH RIGHT OIL FINISH CLASS 2 - 12 GA 486 |
| 121 | C6A088 | Not Available | BUSH M4X9 |
| 122 | C5E416 | Not Available | TRIGGER GUARD - 486 PARALLELO GA 12 GA 28 |
| 123 | |||
| 124 | C58038 | Not Available | WASHER ADJUSTABLE STOCK 12 GA S682 |
| 125 | |||
| 126 | |||
| 127 | |||
| 128 | |||
| 129 |

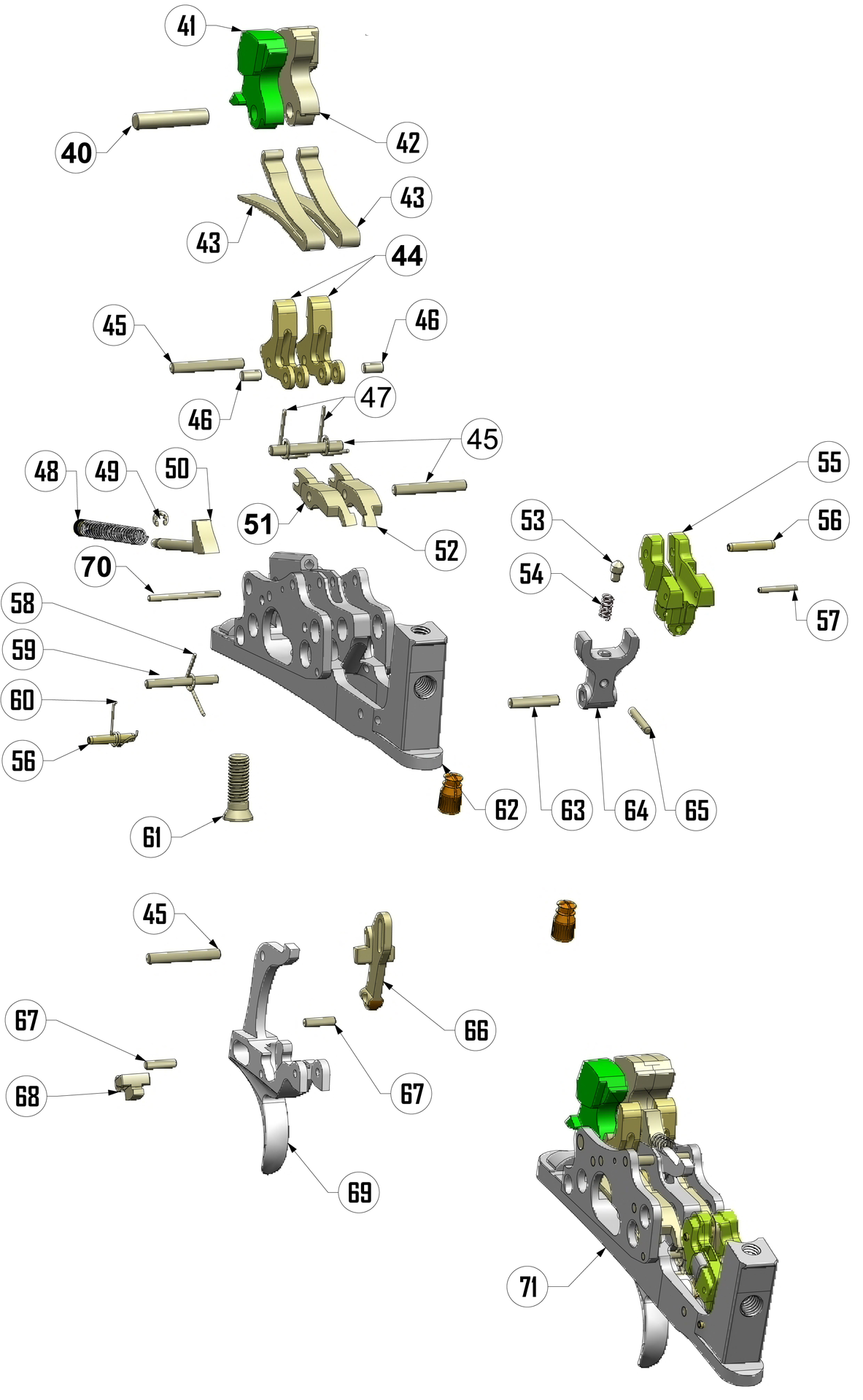

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 40 | |||
| 41 | C5D909 | Not Available | HAMMER LEFT LH SX 486 GA 12 |
| 42 | C5D910 | Not Available | HAMMER RIGHT RH DX 486 GA 12 |
| 43 | C5E998 | Not Available | HAMMER SPRING 486 GA 12 - 20 - 28 |
| 44 | C5D901 | Not Available | SEAR LEVER 486 GA 12 - 20 - 28 |
| 45 | C95453 | Not Available | PERNO 2,5X19 PERNO 2,5X19 |
| 46 | C95458 | Not Available | SPINA 2,5X5 SPINA 2,5X5 |
| 47 | |||
| 48 | |||
| 49 | C5B751 | Not Available | RING SWIVEL |
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | C92106 | Not Available | INERTIA SPRING PIN SINGLE SELECTIVE TRIGGER - 627EELL |
| 54 | C90097 | Not Available | INERTIA SPRING SINGLE SELECTIVE TRIGGER - 426 625 |
| 55 | C5E027 | Not Available | MASS SINGLE SELECTIVE TRIGGER |
| 56 | |||
| 57 | C97084 | Not Available | ELASTIC PIN 1,50X10 UNI 6876 |
| 58 | C5E044 | Not Available | TRIGGER SPRING 486 PARALLELO |
| 59 | C95451 | Not Available | PERNO 2X19 PERNO 2X19 |
| 60 | |||
| 61 | C5E052 | Not Available | SCREW - TRIGGER GUARD |
| 62 | C5D900 | Not Available | TRIGGER GUARD SINGLE TRIGGER 486 GA 12 |
| 63 | C95448 | Not Available | MASS SUPPORT PIN 2,5X13 |
| 64 | |||
| 65 | C92133 | Not Available | MASS STOP PIN 2X10 - 486 GA 20 |
| 66 | C5D911 | Not Available | TRIGGER POINT 486 GA 12 |
| 67 | C92373 | Not Available | PIN 2X8 - 466 PARALLELO GA 12 |
| 68 | C5D923 | Not Available | TRIGGER STOP 486 GA 12 |
| 69 | C5D904 | Not Available | TRIGGER SINGLE SELECTIVE TRIGGER 466 GA 12 |
| 70 | C95450 | Not Available | SPINA 1,5X19 SPINA 1,5X19 |
| 71 | C8A100 | Not Available | TRIGGER GROUP ASSY SIDE BY SIDE PARALLELO 486 GA 12 AND GA 20 SINGLE SELECTIVE TRIGGER |
