Beretta 1301 Tactical Parts Guide
7 exploded diagrams, exact Beretta codes and linked spare parts for Beretta 1301 Tactical.

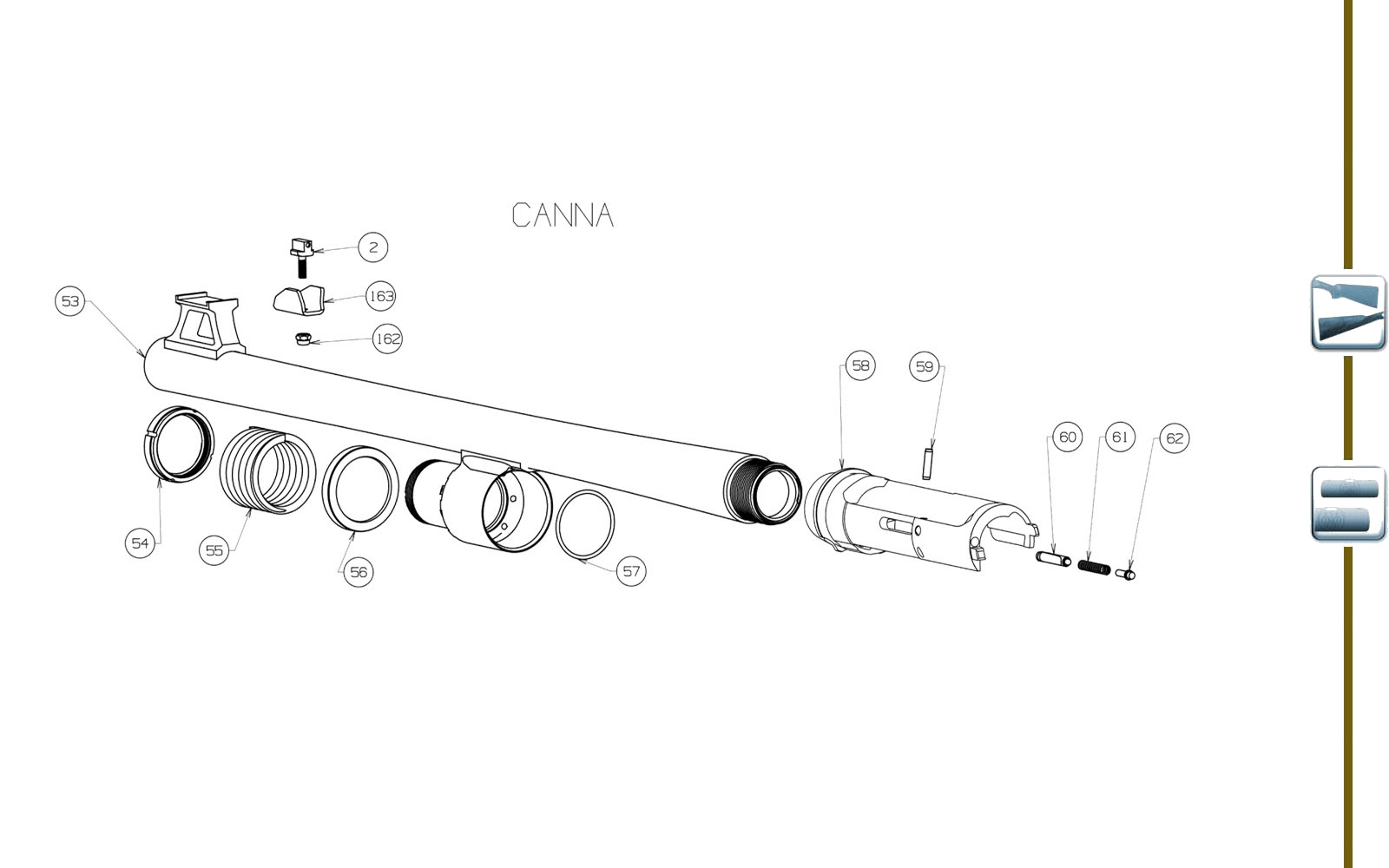

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 162 | C97275 | Not Available | NUT M3 SELFBLOCKING 1301 TACTICAL GA 12 |
| 163 | C5F187 | Not Available | FRONT SIGHT COVER 1301 TACTICAL GA 12 AND 1301 COMPETITION GA 12 |
| 2 | C5F188 | Not Available | FRONT SIGHT WHITE DOT 1301 TACTICAL GA 12 |
| 54 | |||
| 55 | C95447 | Not Available | VALVE SPRING 1301 TACTICAL GA 12 |
| 56 | C5A041 | Not Available | VALVE A391 XTREMA GA 12 |
| 57 | |||
| 58 | C5D303 | Not Available | BARREL EXTENSION - A400 RIGHT HAND RH DX GA 12 3" |
| 59 | C92287 | Not Available | EJECTOR SPRING A400 |
| 60 | C5F324 | Not Available | EJECTOR A400 XPLOR ACTION GA 20 - GA 28 |
| 61 | |||
| 62 | |||
| 621 | A6C86352C050001301A6C86352C65000A6C86356C050001301A6C86357C050001301A6C86358C050001301 | Not Available Not Available Not Available Not Available Not Available | TACTICAL 12Ga. BARREL - BLACK 47cm 1301 TACTICAL 12Ga. BARREL - BLACK 47cm // FIXED CONSTRICTION TACTICAL 12Ga. BARREL - GREEN 47cm TACTICAL 12Ga. BARREL - INOX 47cm TACTICAL 12Ga. BARREL - FDE 47cm |

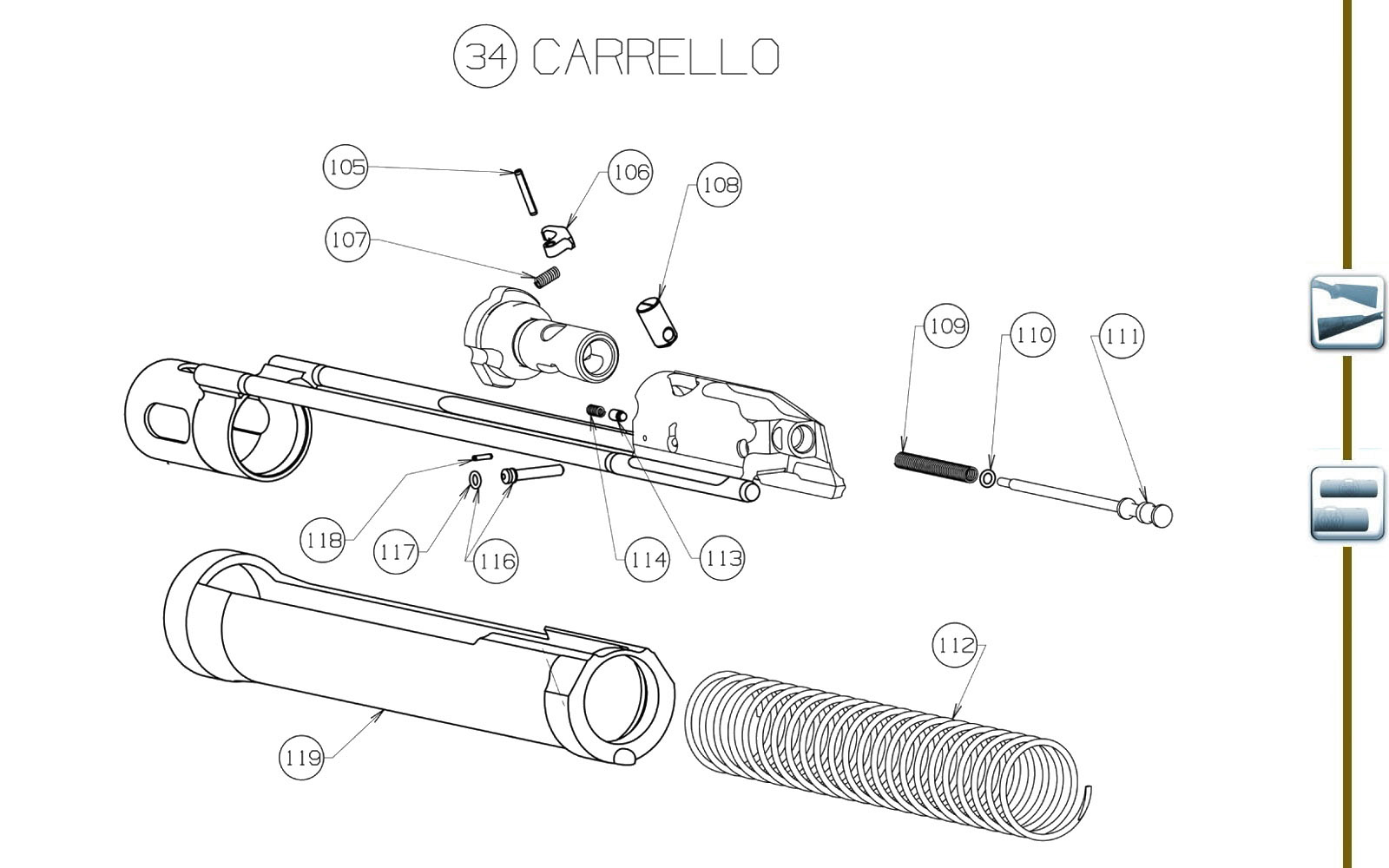

Bolt / slide
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 105 | |||
| 106 | C59922 | Not Available | EJECTOR A400 |
| 107 | |||
| 108 | |||
| 109 | |||
| 110 | |||
| 111 | |||
| 112 | |||
| 113 | |||
| 114 | |||
| 116 | |||
| 118 | |||
| 119 | C5F183 | Not Available | PISTON STOP A400 LITE GA 12 1301 TACTICAL GA 12 |
| 34 | AKF56118111111BOLT | Not Available | FOR SEMIAUTO 1301 TACTICAL GA 12 BLUED STD |

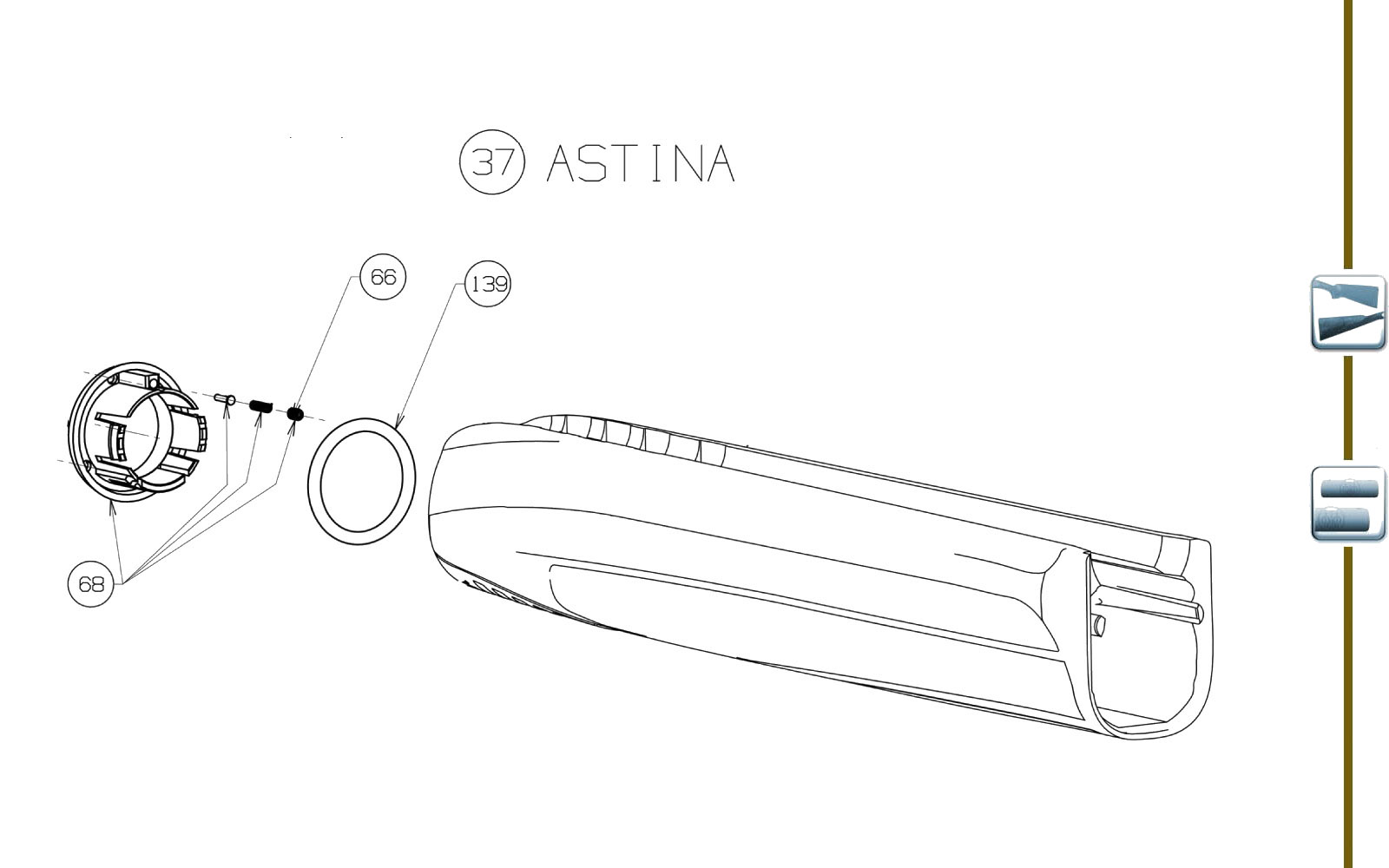

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 37 | C8D274C8D585C8D876C8L556 | Not Available Not Available Not Available Not Available | FOREND POLIPROPILENE CAMO FDE - 1301 TACTICAL GA 12 FOREND POLIPROPILENE CAMO OLIVE DRAB - 1301 TACTICAL GA 12 FOREND A300 XTREMA 12 GA SYNTHETIC BLACK FOREND POLIPROPILENE WOLF GREY - 1301 TACTICAL 12GA |
| 66 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 68 | |||
| 681 |

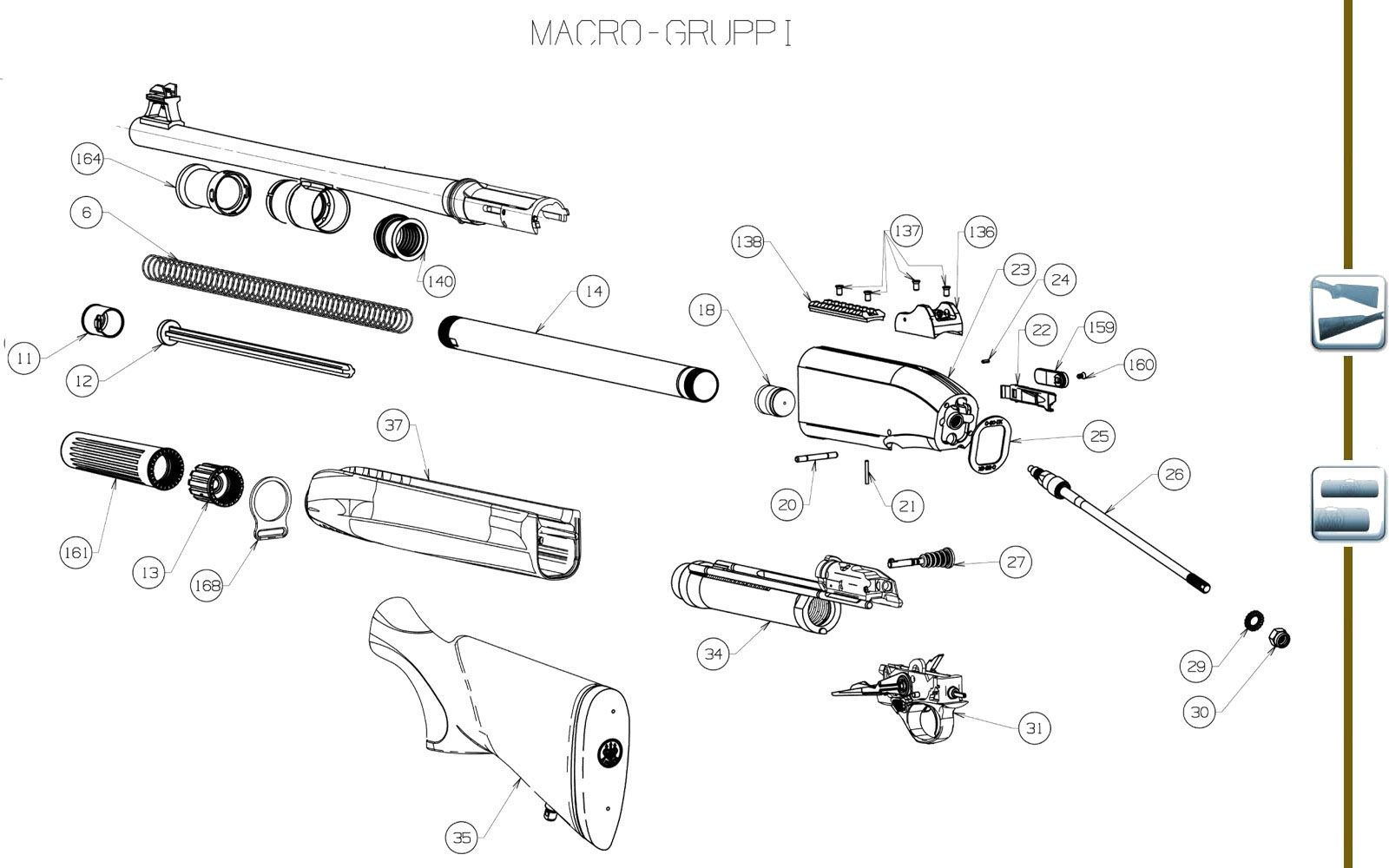

Overview
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 11 | |||
| 12 | C59940C5A573 | Not Available Not Available | REDUCER 2 SHOTS - A300 XTREMA GA 12 REDUCER 1 SHOT - A300 XTREMA GA 12 |
| 13 | |||
| 136 | C8A884 | Not Available | ADUSTABLE SIGHT ASSY FOR 1301 TACTICAL GA 12 |
| 137 | C5F544 | Not Available | SCREW M4 TORX T15 FOR PICATINNY RAIL SEMIAUTO |
| 138 | |||
| 14 | |||
| 140 | |||
| 159 | |||
| 160 | |||
| 161 | |||
| 164 | C5F172 | Not Available | BUSH SPACER FOREND 1301 TACTICAL GA 12 |
| 168 | |||
| 18 | C5D834 | Not Available | MAGAZINE TUBE COVER A400 XPLOR CAL 12 |
| 20 | |||
| 21 | |||
| 22 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 29 | |||
| 30 | |||
| 31 | C8A910 | Not Available | TRIGGER GUARD ASSY FOR 1301 TACTICAL GA 12 3 INCHES |
| 35 | C8A962 | Not Available | STOCK PISTOL GRIP POLIPROPILENE BLACK - 1301 TACTICAL GA 12 SYNTHETIC |
| 37 | C8D876 | Not Available | FOREND A300 XTREMA 12 GA SYNTHETIC BLACK |
| 6 | |||
| 61 | AKF56118111111BOLT | Not Available | FOR SEMIAUTO 1301 TACTICAL GA 12 BLUED STD |

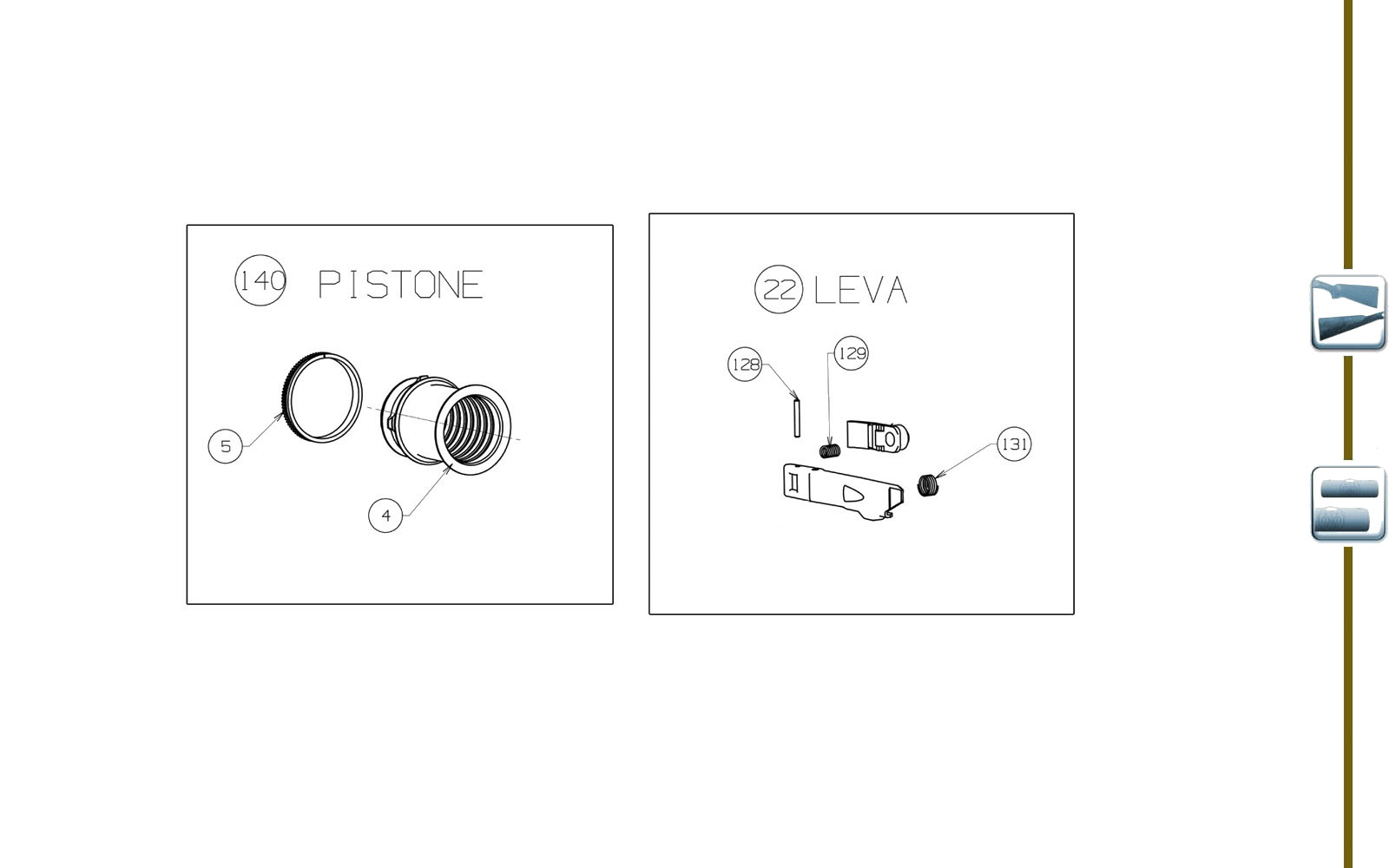

Piston and cartridge-latch lever
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 128 | C92212 | Not Available | CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20 |
| 129 | |||
| 131 | |||
| 140 | |||
| 22 | |||
| 4 | C5F191 | Not Available | FRONT SIGHT |
| 5 |

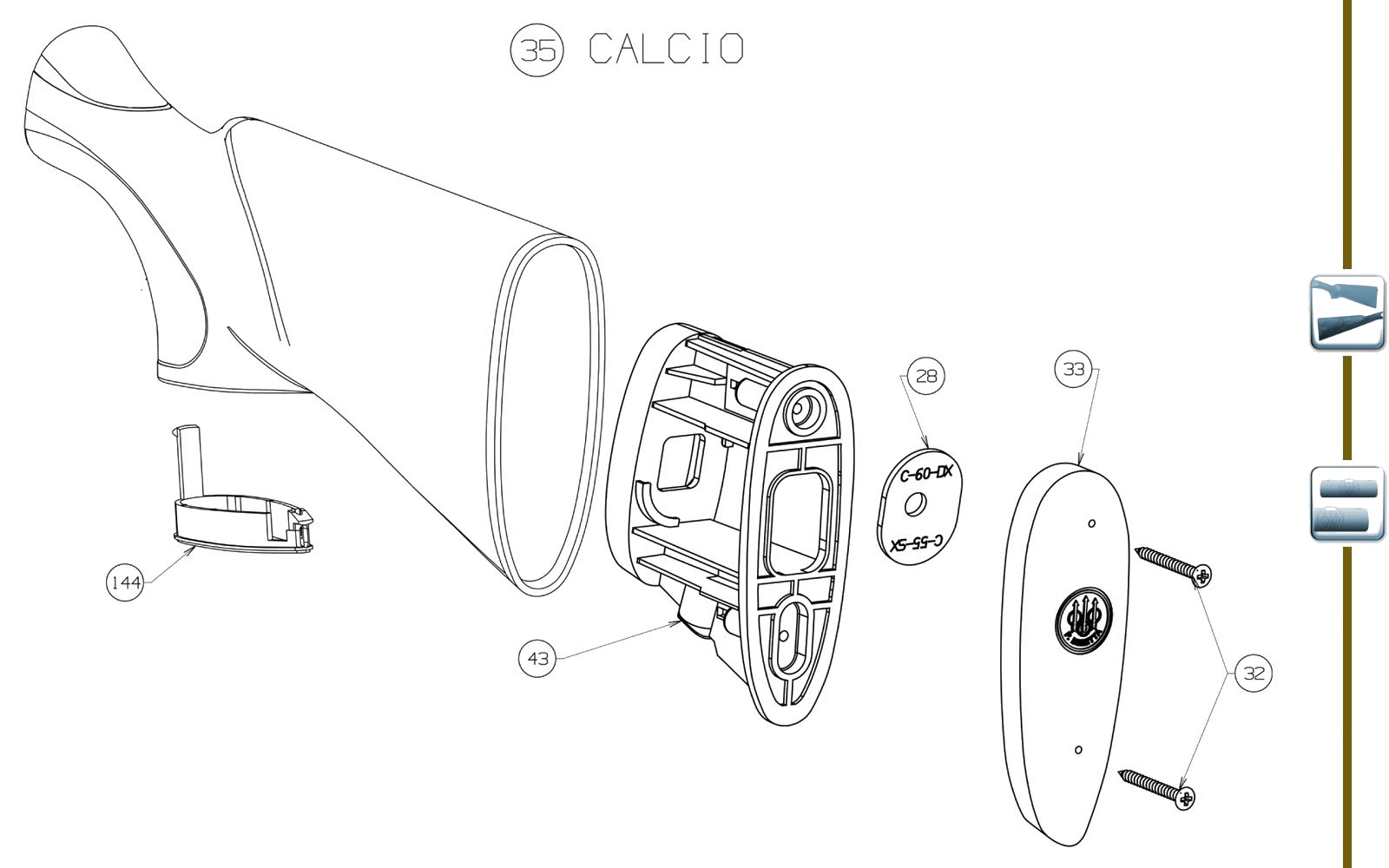

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 144 | C5E223 | Not Available | STOCK CAP CLOSED BLACK FOR POLYMER STOCK - A391 XTREMA GA 12 |
| 28 | |||
| 32 | |||
| 33 | C53661 | Not Available | RECOIL PAD FIELD RUBBER BLACK FULL THIN 12MM GA 12 AND GA 20 |
| 35 | C8A962C8D250C8D586C8N376 | Not Available Not Available Not Available Not Available | STOCK PISTOL GRIP POLIPROPILENE BLACK - 1301 TACTICAL GA 12 SYNTHETIC STOCK PISTOL GRIP POLIPROPILENE CAMO FDE FLAT DARK EARTH SAND - 1301 TACTICAL GA 12 STOCK PISTOL GRIP POLIPROPILENE CAMO OLIVE DRAB GREEN - 1301 TACTICAL GA 12 STOCK PISTOL GRIP POLIPROPILENE WOLF GREY - 1301 TACTICAL GA 12 |
| 43 | C5C645 | Not Available | SYNTHETIC STOCK INSERT 12 GA AL391 XTREMA 1301 |

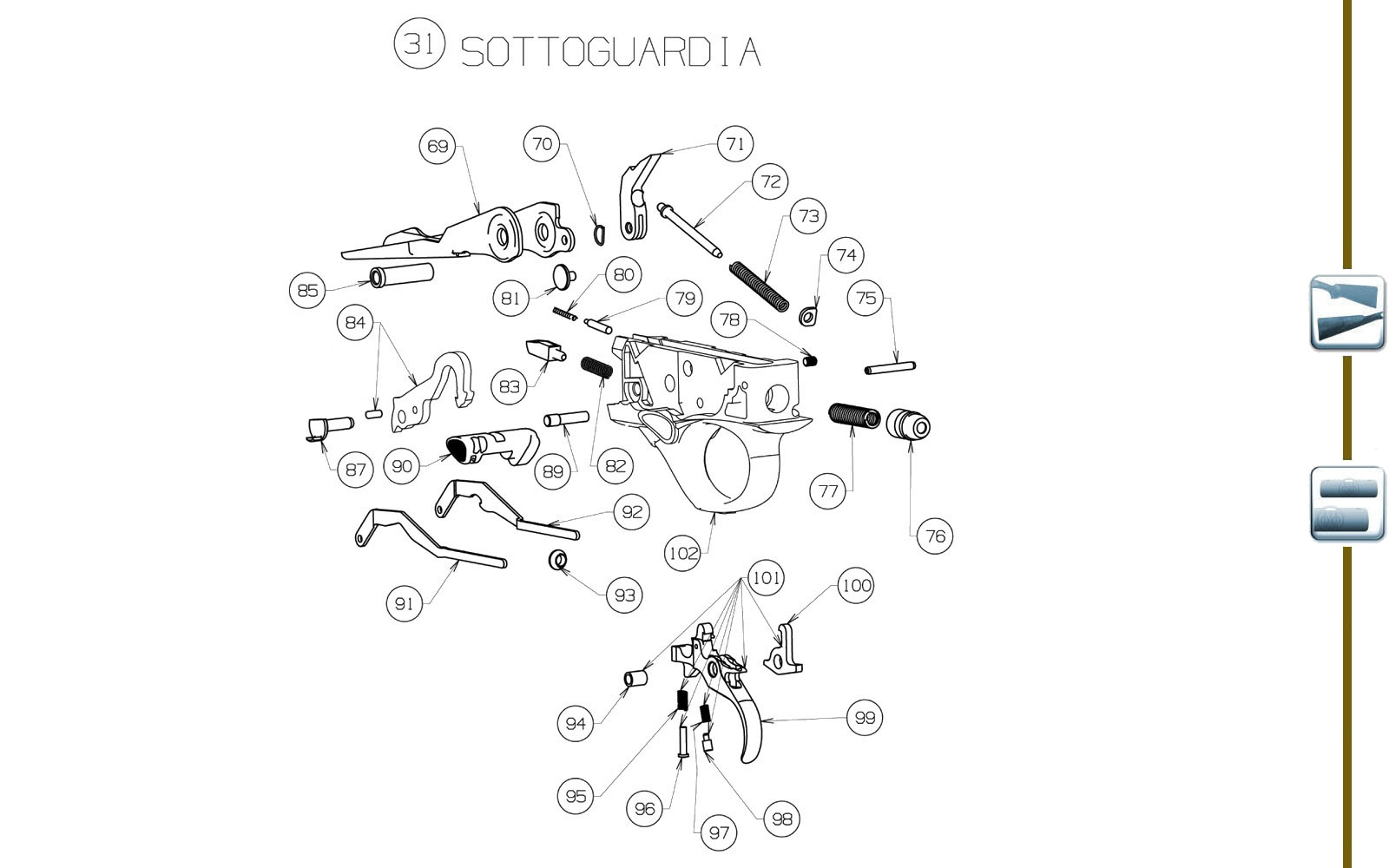

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 100 | C5D838 | Not Available | STOP PIN - A400 GA 12 AND GA 20 |
| 101 | C8A154 | Not Available | TRIGGER ASSY BLUED |
| 102 | C5D951 | Not Available | PLEASE ORDER FULL ASSY |
| 31 | C8A910 | Not Available | TRIGGER GUARD ASSY FOR 1301 TACTICAL GA 12 3 INCHES |
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | C5D533 | Not Available | ELEVATOR LEVER SPRING GUIDE A400 |
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | C5B992 | Not Available | HAMMER SPRING GUIDE 12 GA A400 |
| 77 | |||
| 78 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 79 | |||
| 80 | |||
| 81 | |||
| 82 | C95323 | Not Available | ELEVATOR STOP PIN SPRING A400 |
| 83 | |||
| 84 | C7E421 | Not Available | HAMMER ASSY - AX800 GA 12 / A400L GA 12 |
| 85 | |||
| 87 | C92213 | Not Available | HAMMER PIN |
| 89 | |||
| 90 | C5F152 | Not Available | SAFETY OVERSIZED RIGHT HAND FOR 1301 TACTICAL AND 1301 COMPETITION GA12 |
| 91 | |||
| 92 | |||
| 93 | C5D426 | Not Available | HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20 |
| 94 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 95 | |||
| 96 | C5D697 | Not Available | TRIGGER SPRING GUIDE A400 |
| 97 | |||
| 98 | |||
| 99 | C5D865 | Not Available | TRIGGER BLUED GLOSSY FINISH TX4 STORM - 1301 COMPETITION |
