Beretta 1301 Comp Parts Guide
6 exploded diagrams, exact Beretta codes and linked spare parts for Beretta 1301 Comp.

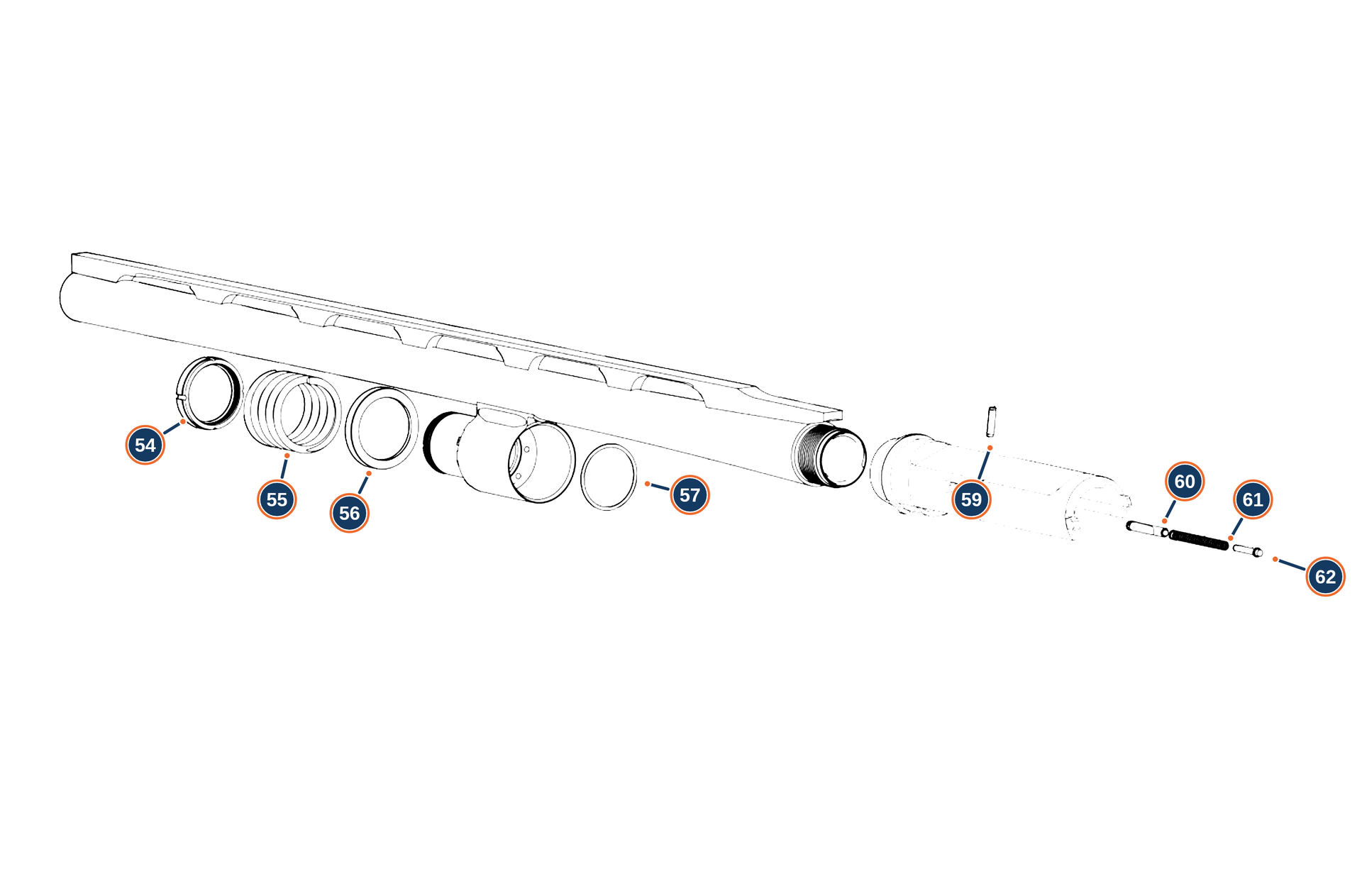

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 54 | |||
| 55 | C95387 | Not Available | VALVE SPRING A391 XTREMA GA 12 |
| 56 | C5A041 | Not Available | VALVE A391 XTREMA GA 12 |
| 57 | |||
| 59 | C92287 | Not Available | EJECTOR SPRING A400 |
| 60 | C5D335 | Not Available | EJECTOR 12 GA A400 |
| 61 | |||
| 62 |

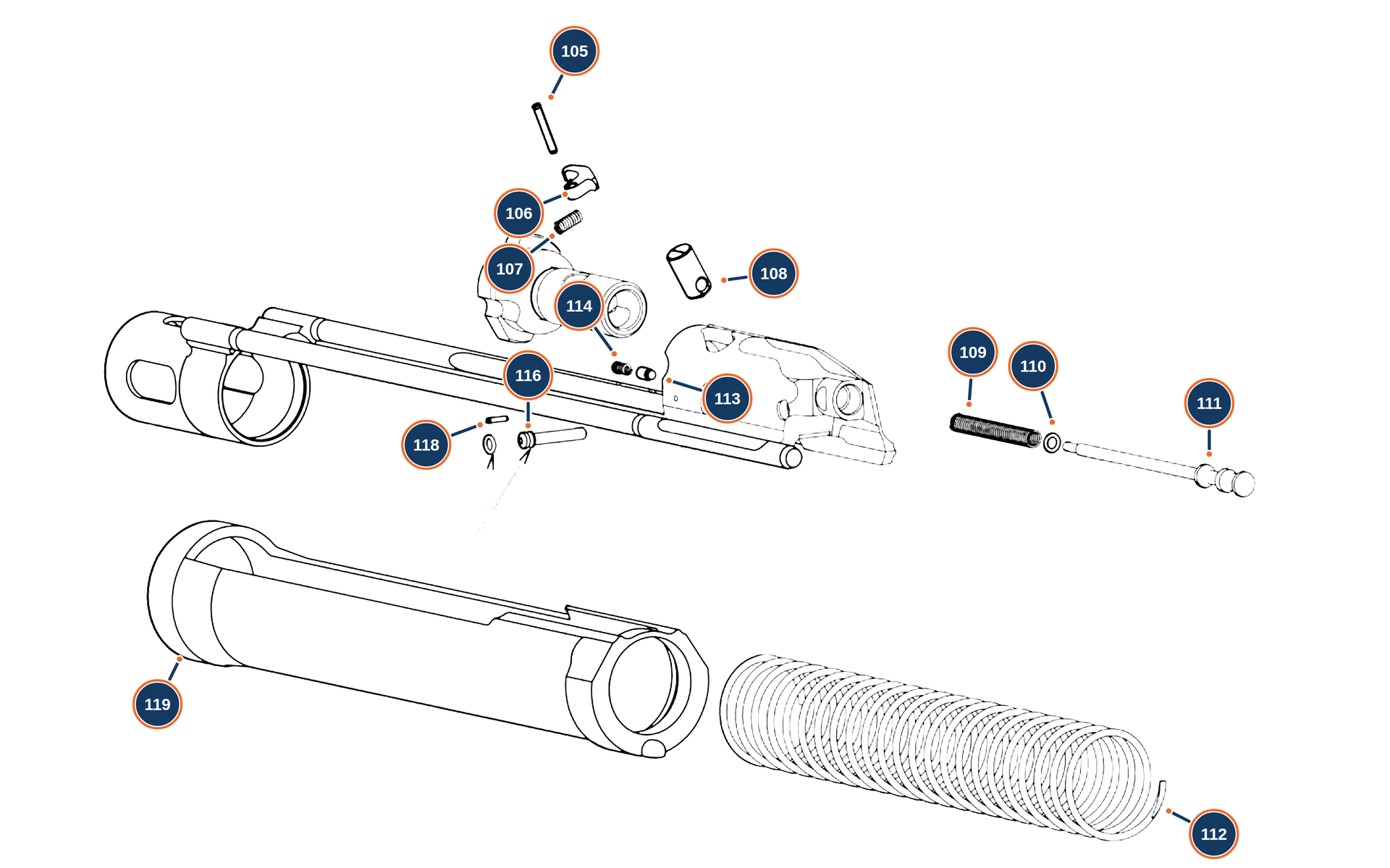

Bolt / slide
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 105 | |||
| 106 | C59922 | Not Available | EJECTOR A400 |
| 107 | |||
| 108 | |||
| 109 | |||
| 110 | |||
| 111 | |||
| 112 | |||
| 113 | |||
| 114 | |||
| 116 | |||
| 118 | |||
| 119 | |||
| 34 | AKF66118111111 | Not Available | BOLT FOR SEMIAUTO 1301 COMPETITION, TX4 STORM A400 XTREME GA 12 BLUED STD |
Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 37 | C8D876 | Not Available | FOREND A300 XTREMA 12 GA SYNTHETIC BLACK |
| 66 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 68 |

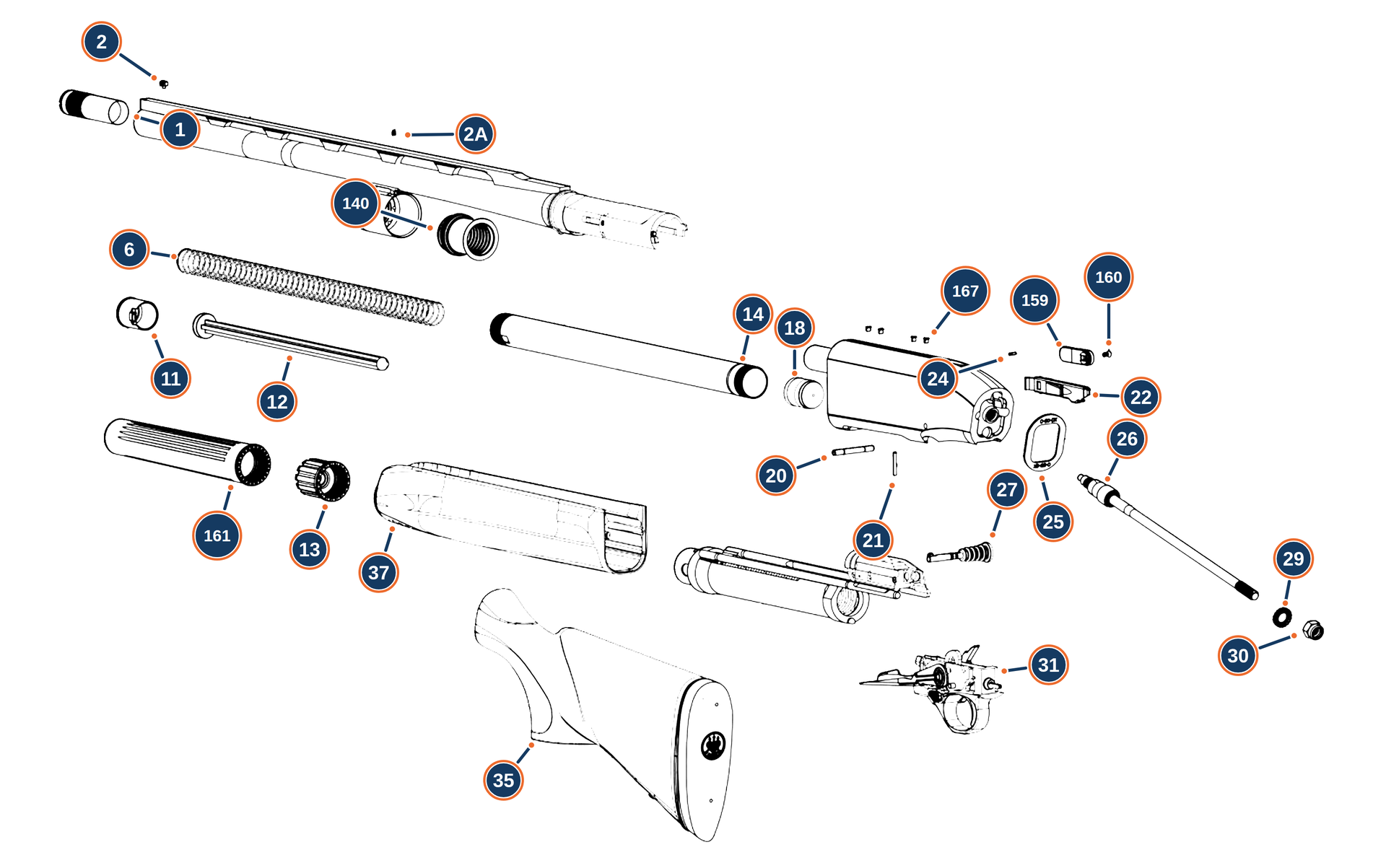

Overview
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | C62073 | Not Available | OCHP12 FLUSH - IC |
| 2 | |||
| 11 | |||
| 12 | C59940C5A573 | Not Available Not Available | REDUCER 2 SHOTS - A300 XTREMA GA 12 REDUCER 1 SHOT - A300 XTREMA GA 12 |
| 13 | |||
| 14 | |||
| 140 | |||
| 159 | |||
| 160 | |||
| 161 | |||
| 167 | C5F300 | Not Available | PLUG WEAVER HOELS FOR PER SEMIAUTOMATO 1301 COMPETITION |
| 18 | C5D834 | Not Available | MAGAZINE TUBE COVER A400 XPLOR CAL 12 |
| 20 | |||
| 21 | |||
| 22 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | C7A702 | Not Available | OVERSIZED COCKING HANDLE WITH CARBON HANDLE COVER FOR SERIE 1301 AND SERIE A400 GA 12 GA 20 |
| 29 | |||
| 2A | |||
| 30 | |||
| 31 | C8A793 | Not Available | TRIGGER GUARD ASSY 1301 COMPETITION GA 12 |
| 34 | AKF66118111111 | Not Available | BOLT FOR SEMIAUTO 1301 COMPETITION, TX4 STORM A400 XTREME GA 12 BLUED STD |
| 35 | C8A959 | Not Available | STOCK PISTOL GRIP POLIPROPILENE BLACK - 1301 COMPETITION 12 GA SYNTHETIC |
| 37 | C8D876 | Not Available | FOREND A300 XTREMA 12 GA SYNTHETIC BLACK |
| 6 |

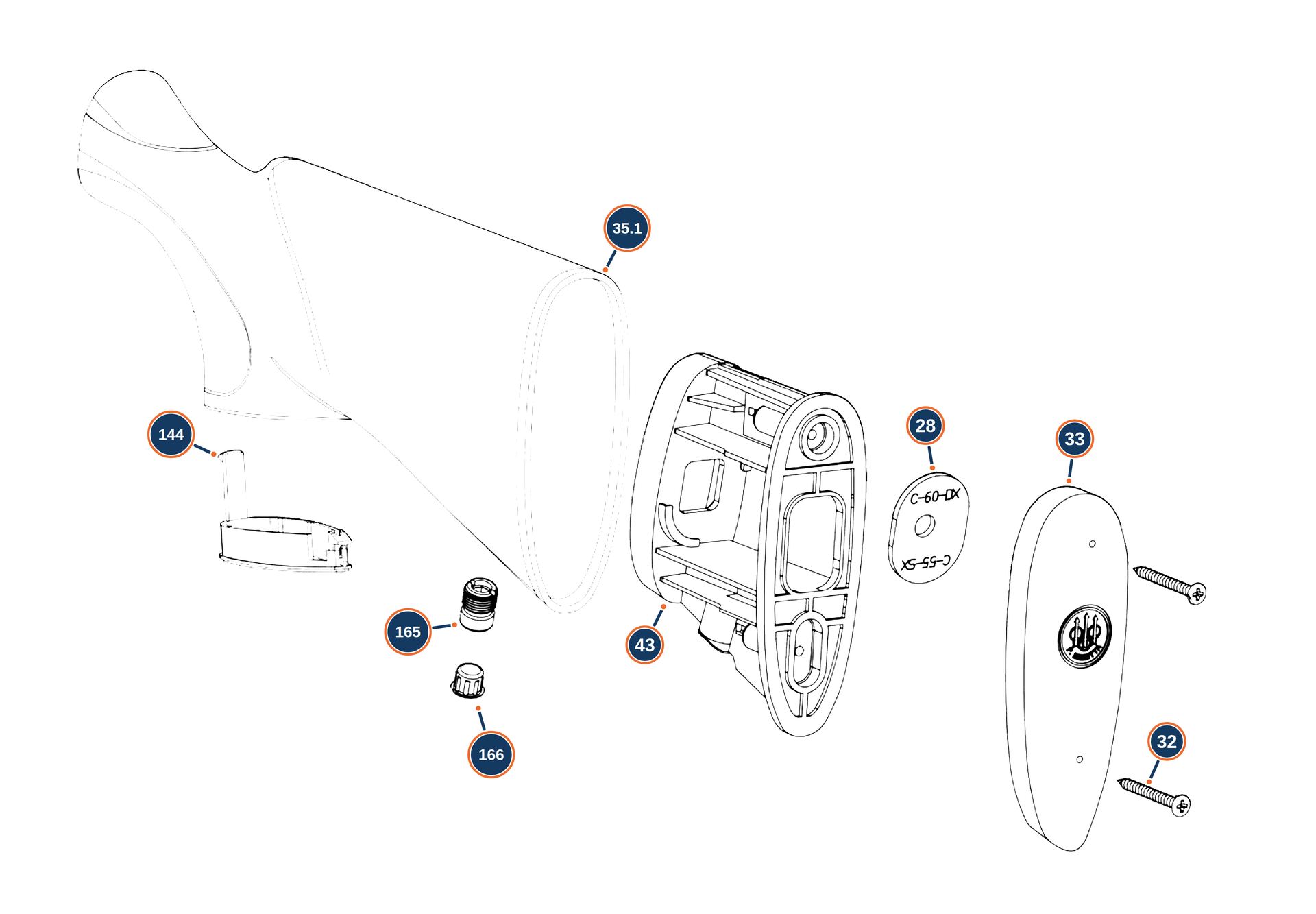

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 144 | C5E223 | Not Available | STOCK CAP CLOSED BLACK FOR POLYMER STOCK - A391 XTREMA GA 12 |
| 165 | C5B209 | Not Available | QUICK DETACH SWIVEL BUSH FOR SYNTHETIC AND CAMO STOCKS |
| 166 | C5B226 | Not Available | SWIVEL PLUG PROTECTION FOR QUICK MOUNT SWIVEL |
| 28 | |||
| 32 | |||
| 33 | C53661 | Not Available | RECOIL PAD FIELD RUBBER BLACK FULL THIN 12MM GA 12 AND GA 20 |
| 35 | C8A959 | Not Available | STOCK PISTOL GRIP POLIPROPILENE BLACK - 1301 COMPETITION 12 GA SYNTHETIC |
| 43 | C5C645 | Not Available | SYNTHETIC STOCK INSERT 12 GA AL391 XTREMA 1301 |

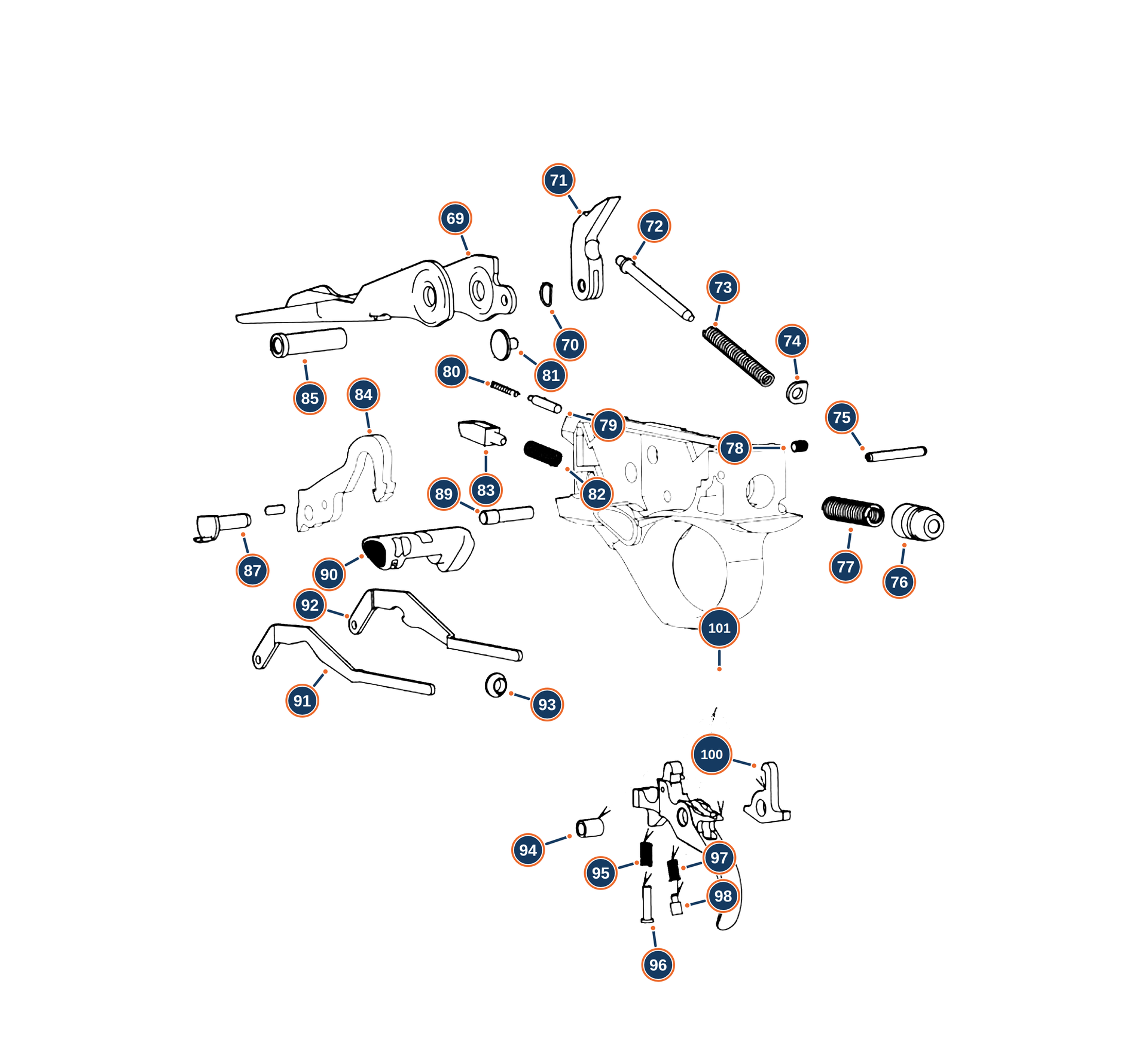

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 100 | C5D838 | Not Available | STOP PIN - A400 GA 12 AND GA 20 |
| 101 | |||
| 102 | C5D951 | Not Available | PLEASE ORDER FULL ASSY |
| 31 | C8A793 | Not Available | TRIGGER GUARD ASSY 1301 COMPETITION GA 12 |
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | C5D533 | Not Available | ELEVATOR LEVER SPRING GUIDE A400 |
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | C5B992 | Not Available | HAMMER SPRING GUIDE 12 GA A400 |
| 77 | C90380 | Not Available | HAMMER SPRING A400 |
| 78 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 79 | |||
| 80 | |||
| 81 | |||
| 82 | C95323 | Not Available | ELEVATOR STOP PIN SPRING A400 |
| 83 | |||
| 84 | C7E421 | Not Available | HAMMER ASSY - AX800 GA 12 / A400L GA 12 |
| 85 | |||
| 87 | C92213 | Not Available | HAMMER PIN |
| 89 | |||
| 90 | C5F152 | Not Available | SAFETY OVERSIZED RIGHT HAND FOR 1301 TACTICAL AND 1301 COMPETITION GA12 |
| 91 | |||
| 92 | |||
| 93 | C5D426 | Not Available | HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20 |
| 94 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 95 | |||
| 96 | C5D697 | Not Available | TRIGGER SPRING GUIDE A400 |
| 97 | |||
| 98 | |||
| 99 | C5D865 | Not Available | TRIGGER BLUED GLOSSY FINISH TX4 STORM - 1301 COMPETITION |
