Beretta Ultraleggero 12G spare parts
Beretta Ultraleggero 12G Parts Guide
Use the exploded diagrams and part numbers below to find Beretta Ultraleggero 12G spares and accessories available from Blue Fieldsports.
Shop Ultraleggero 12G parts
Browse Ultraleggero 12G parts available from Blue Fieldsports.
| Part | Part code | Status | Price | |
|---|---|---|---|---|
| Beretta 68 Series Ejector Plunger - 12G | BER-C92208 | In stock | £5.00 | View product |
| Beretta 68 Series Ejector Spring - 12g | BER-C90421 | In stock | £5.00 | View product |
| Beretta 690 Ejector Disc | BER-C5G823 | In stock | £10.00 | View product |
| Nickel Bead Front Sight - Round | BER-C53659 | In stock | £10.00 | View product |
| Pad Screw - 40mm | BER-C95192 | In stock | £5.00 | View product |
Beretta Ultraleggero 12G exploded diagrams and parts
Trigger Group

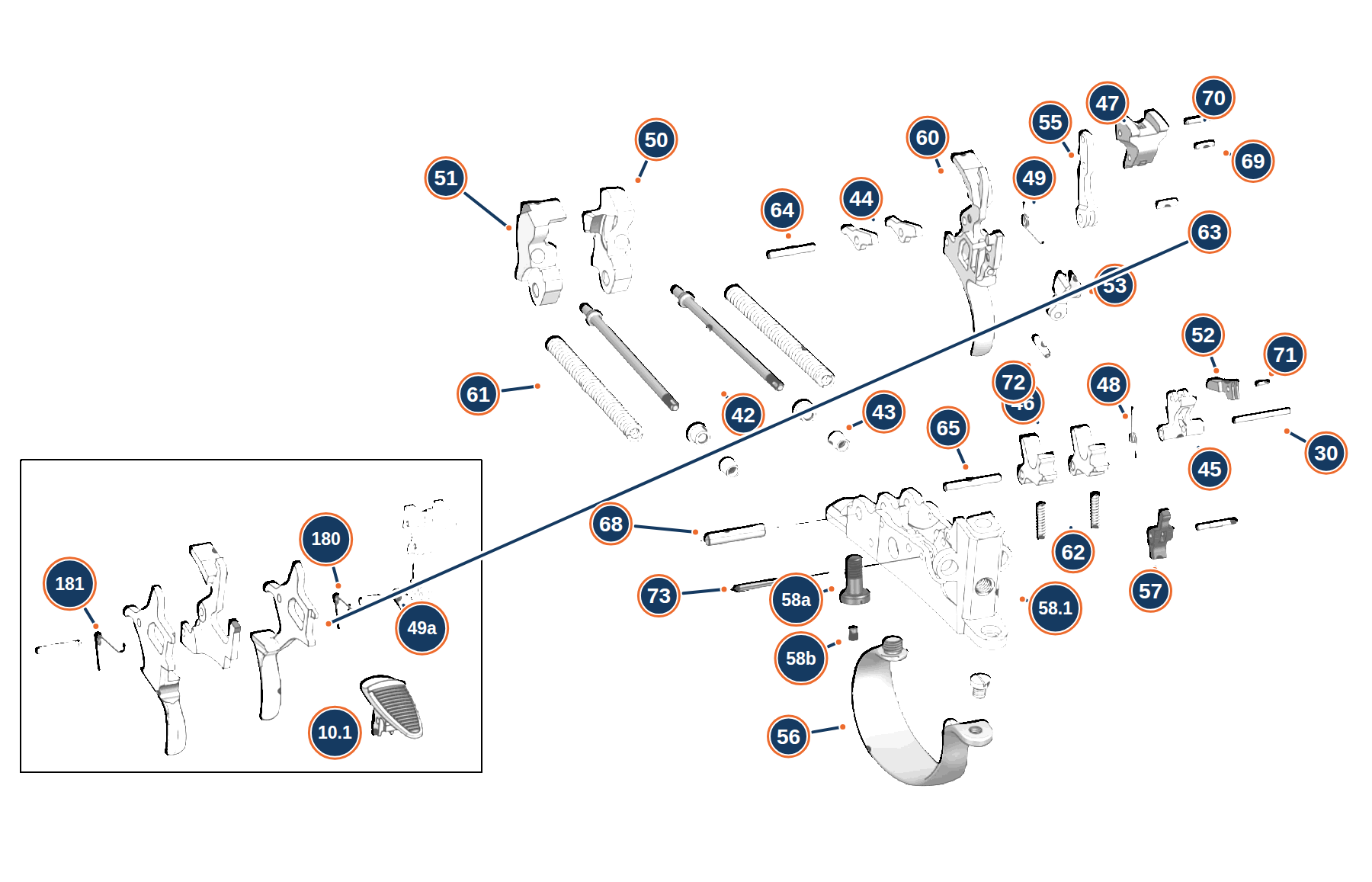

Ultraleggero 12G Trigger Group exploded diagram.
| Position | Beretta Code | Description | Product Link |
|---|---|---|---|
| 10.1 | BER-C5J009, BER-C5J008 | Double Trigger safety | BER-C5J009 Not AvailableBER-C5J008 Not Available |
| 30 | BER-C92182 | Double single selective trigger mass lever pin | Warehouse Stock Beretta Inertia Reset Arm Pin |
| 42 | BER-C52270 | Hammer Spring Guide Bush | BER-C52270 Not Available |
| 43 | BER-C52271 | Hammer Spring Guide Nut | BER-C52271 Not Available |
| 44 | BER-C53023 | Connecting Lever | Warehouse Stock Beretta Sear Arm |
| 45 | BER-C53123 | Inertia Block Lever | Warehouse Stock Beretta Inertia Reset Arm Body |
| 46 | BER-C53195 | Trigger lever | Warehouse Stock Beretta Sear 680/690 Series |
| 47 | BER-C53629 | Mass lever | Warehouse Stock Beretta Inertia Block |
| 48 | BER-C53760 | Inertia Block Lever Spring | Warehouse Stock Beretta Inertia Block Reset Spring |
| 49 | BER-C54221 | Inertia Block Spring | Warehouse Stock Beretta Inertia Block Spring |
| 49a | BER-C5K184 | Double trigger mass spring | BER-C5K184 Not Available |
| 50 | BER-C5G987 | Right double mount hammer | Warehouse Stock Beretta 12G Bottom Hammer R/H |
| 51 | BER-C5G988 | Left double mount hammer | Warehouse Stock Beretta 12G Top Hammer L/H |
| 52 | BER-C54618 | Mass lever Pawl | Warehouse Stock Beretta Inertia Reset Arm |
| 53 | BER-C54627 | Selector Pawl | Warehouse Stock Beretta Selector Pawl |
| 55 | BER-C56723 | Mass lever support | Warehouse Stock Beretta Inertia Block Rest |
| 56 | BER-C5G192 | Single Trigger forend | BER-C5G192 Not Available |
| 57 | BER-C5D004, BER-C5E378 | Safety lever | Warehouse Stock Beretta 690 694 Sv10 Safety Lever (BER-C5D004) Warehouse Stock Beretta 690 694 Sv10 Safety Lever (BER-C5E378) |
| 58.1 | BER-C5H129, BER-C95182 | Trigger guard | Warehouse Stock Beretta Ultraleggero Trigger FrameBER-C95182 Not Available |
| 58a | BER-C95182, BER-C95260 | Trigger guard fixing screw | BER-C95182 Not AvailableWarehouse Stock Beretta Trigger Plate Screw Silver |
| 58b | BER-C95140 | Trigger guard locking screw | Warehouse Stock Beretta Trigger Plate Locking Screw Black |
| 60 | BER-C5E129 | Trigger | BER-C5E129 Not Available |
| 61 | BER-C90182 | Hammer spring | BER-C90182 Not Available |
| 62 | BER-C90183 | Sear lever spring | Warehouse Stock Beretta 690 692 680 Sear Spring |
| 63 | BER-C92039 | Right trigger | Warehouse Stock Beretta Front Trigger Blade Pin |
| 64 | BER-C92180 | Trigger pin | Warehouse Stock Beretta Trigger Pin Forend Iron Catch Pin |
| 65 | BER-C92183 | Sear lever pin | Warehouse Stock Beretta Sear Pin |
| 68 | BER-C92184 | Hammer pin | Warehouse Stock Beretta Hammer Pin (BER-C92184) |
| 69 | BER-C97004 | Elastic pin 2x6 | Warehouse Stock Beretta Inertia Block Roll Pin (Small) |
| 70 | BER-C97037 | Elastic pin 2x12 | Warehouse Stock Beretta Inertia Block Roll Pin (Large) |
| 71 | BER-C97054 | Elastic pin 1.5x4 | Warehouse Stock Beretta Inertia Reset Arm/Body Roll Pin |
| 72 | BER-C97060 | Elastic pin 2x10 | Warehouse Stock Beretta Forend Iron Catch Pin Selector Pawl Pin |
| 73 | BER-C97087 | Elastic pin 2x14 | Warehouse Stock Beretta 1301 Elastic Roll Pin 2x14 |
| 180 | BER-C53933 | Double trigger body spring | Warehouse Stock Beretta Front Trigger Spring |
| 181 | BER-C54071 | Double trigger spring | Warehouse Stock Beretta Rear Trigger Spring |
Calcio

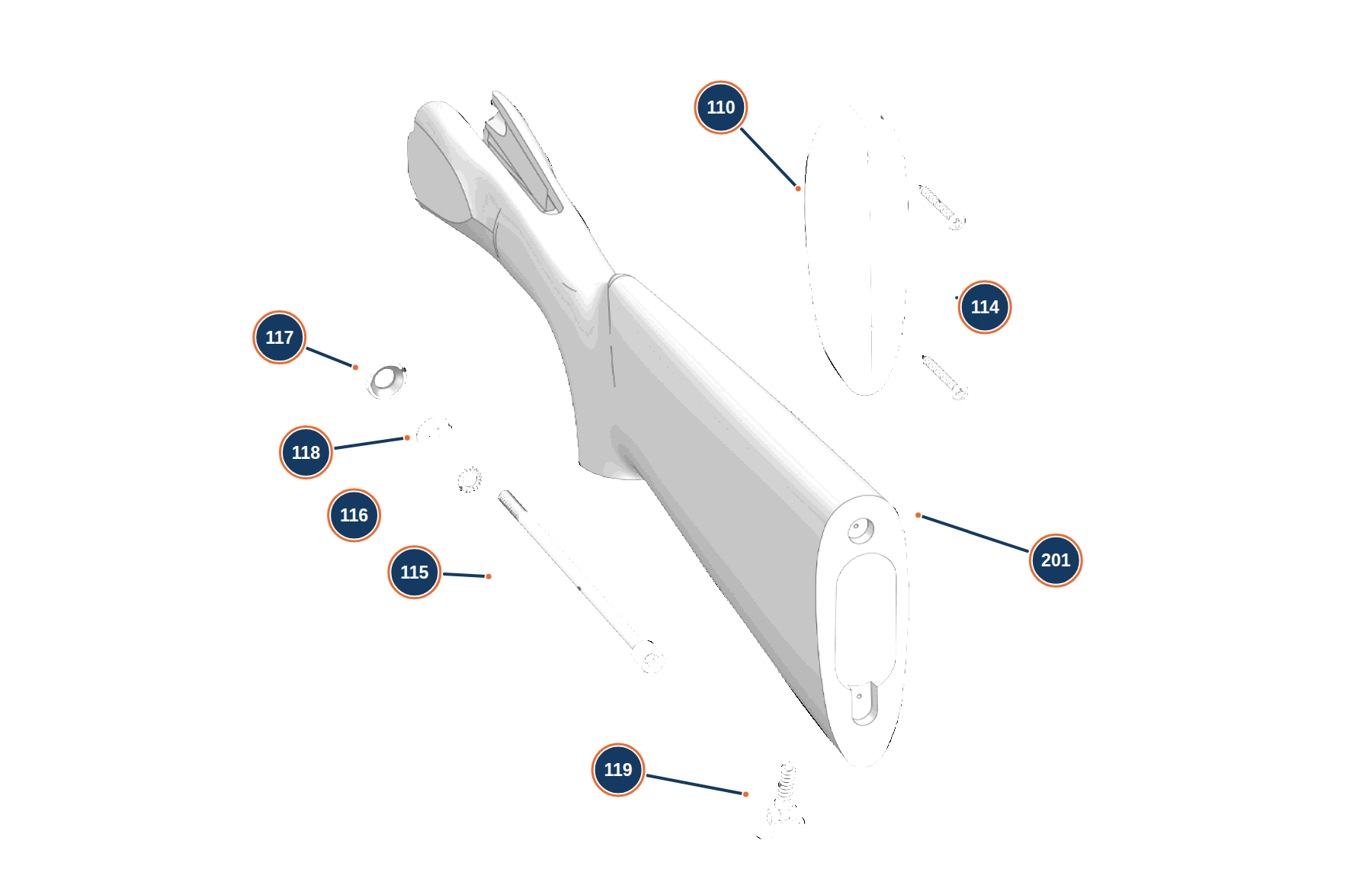

Ultraleggero 12G Calcio exploded diagram.
| Position | Beretta Code | Description | Product Link |
|---|---|---|---|
| 110 | BER-C7C097, BER-C7C098, BER-C7C099, BER-C7C100 | Recoil Pad | Warehouse Stock Beretta Extralight Recoil Pad (Field/All Gauges) 10mm Not currently in stock Beretta Extralight Recoil Pad (Field/All Gauges) 15mm Not currently in stock Beretta Extralight Recoil Pad (Field/All Gauges) 20mm Not currently in stock Beretta Extralight Recoil Pad (Field/All Gauges) 25mm |
| 114 | BER-C95192 | Recoil Pad | In stock Pad Screw - 40mm |
| 115 | BER-C95329 | Recoil Pad tensioner | BER-C95329 Not Available |
| 116 | BER-C97079 | Elastic washer | Warehouse Stock Beretta Stock Bolt Spring Washer (680'S Bin 113) |
| 117 | BER-C58038 | Concave washer | BER-C58038 Not Available |
| 118 | BER-C56147 | Convex washer | Warehouse Stock Beretta Stock Bolt Washer Small (680'S Bin79) |
| 119 | BER-C62021 | Stock sleeve | Warehouse Stock Beretta Rear Swivel S/Auto |
| 201 | BER-C5H968, BER-C8G092, BER-C8G091, BER-C8G092, BER-C8G093, BER-C8G094, BER-C8G812, BER-C5H609, BER-C5H968, BER-C5L650, BER-C5L651 | Stock | BER-C5H968 Not AvailableBER-C8G092 Not AvailableBER-C8G091 Not AvailableBER-C8G092 Not AvailableWarehouse Stock Beretta Ultraleggero Stock Set RH Round 12G BER-C8G094 Not AvailableBER-C8G812 Not AvailableBER-C5H609 Not AvailableBER-C5H968 Not AvailableBER-C5L650 Not AvailableBER-C5L651 Not Available |
Forend

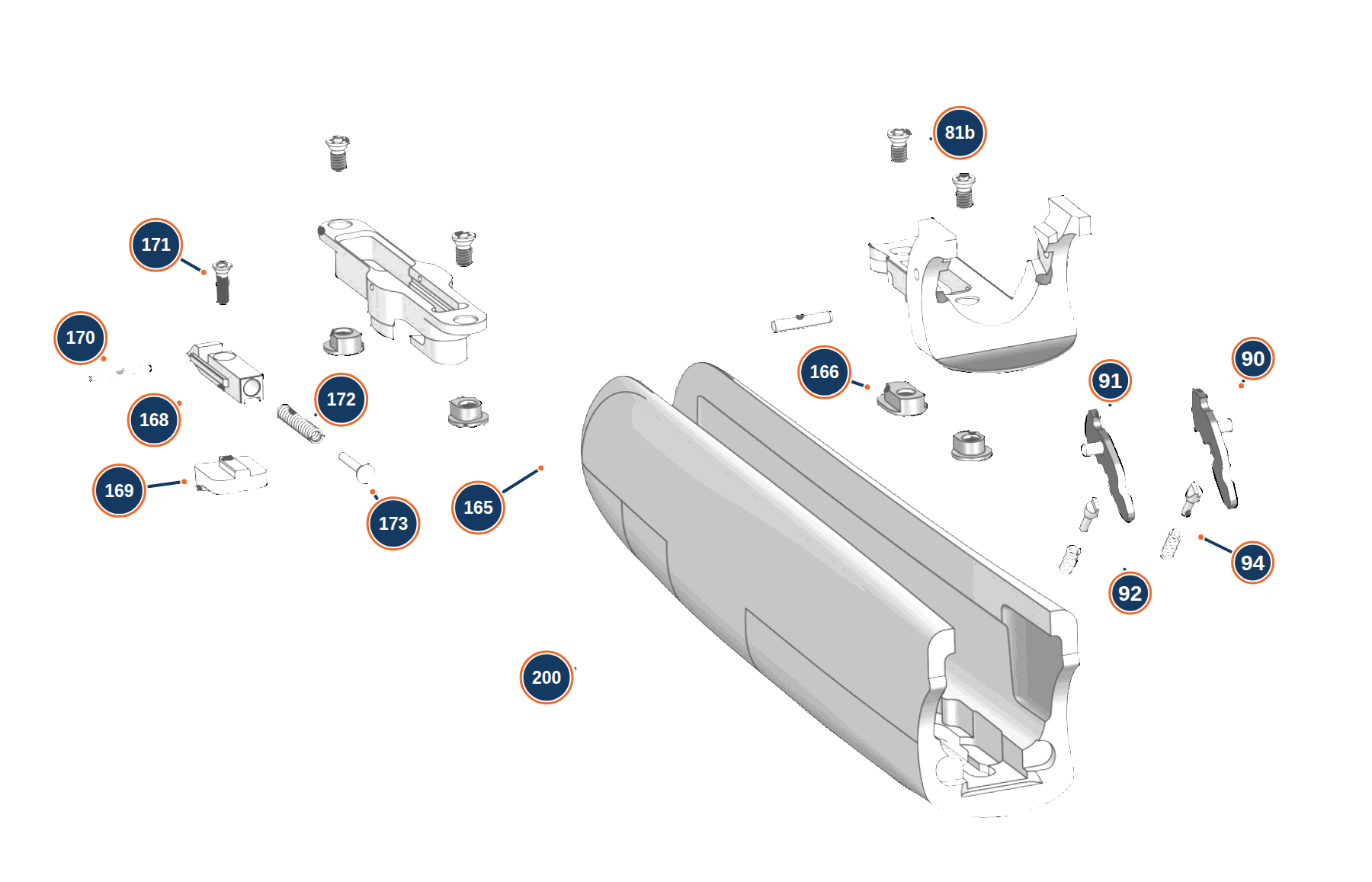

Ultraleggero 12G Forend exploded diagram.
| Position | Beretta Code | Description | Product Link |
|---|---|---|---|
| 81b | BER-C5K079 | Cross screw forend Torx 4x7.5 | Warehouse Stock Beretta 694 Forend Screw |
| 90 | BER-C5J405 | Right cross lever | BER-C5J405 Not Available |
| 91 | BER-C5J404 | Left cross lever | BER-C5J404 Not Available |
| 92 | BER-C91116 | Cross lever pin spring | Warehouse Stock Beretta Ejector Trip Spring (BER-C91116) |
| 94 | BER-C5J403 | Cross lever spring reinforcement pin | Warehouse Stock Beretta 694 Ejector Trip Plunger 94 |
| 165 | BER-C5H584 | Forend Bush | Warehouse Stock Beretta 694 Forend Bush Short |
| 166 | BER-C5J755 | Bush Long Forend | Warehouse Stock Beretta 694 Forend Bush Long 166 |
| 168 | BER-C5J382 | Lug engagement dowel | BER-C5J382 Not Available |
| 169 | BER-C5K128 | Dowel | BER-C5K128 Not Available |
| 170 | BER-C5J417 | Elastic pin 1.5x16 | BER-C5J417 Not Available |
| 171 | BER-C5J381 | Carriage assembly screw | Warehouse Stock Beretta 694 Forend Catch Screw 171 |
| 172 | BER-C5L653 | Dowel spring | BER-C5L653 Not Available |
| 173 | BER-C5J754 | Sear assembly spring holder | BER-C5J754 Not Available |
| 200 | BER-C5H589 | Forend | Not currently in stock Beretta Ultraleggero Forend Round 12G |
Receiver

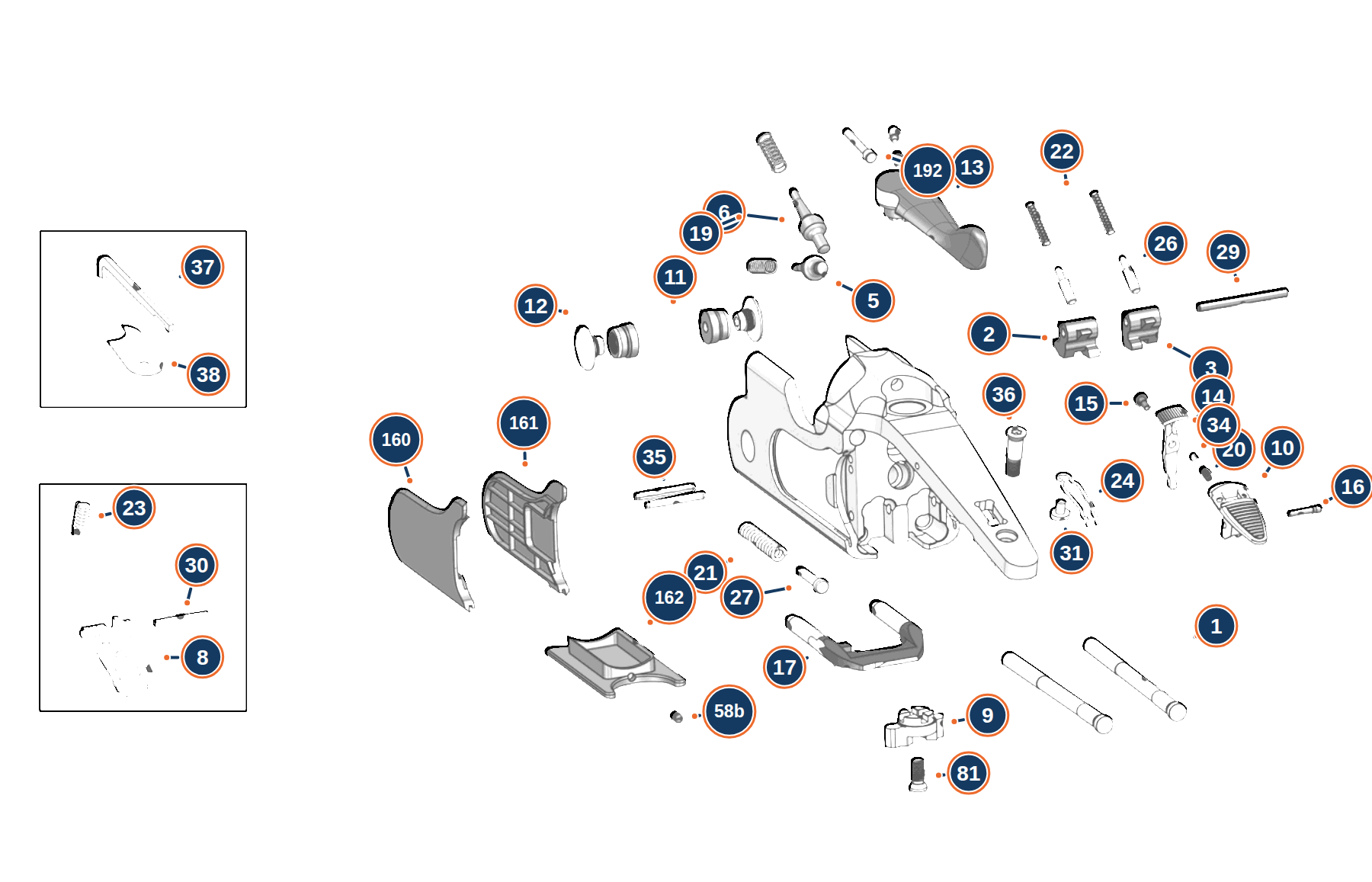

Ultraleggero 12G Receiver exploded diagram.
| Position | Beretta Code | Description | Product Link |
|---|---|---|---|
| 1 | BER-C50317 | Basic cocking rod | BER-C50317 Not Available |
| 2 | BER-C52982 | Left cocking lever | Warehouse Stock Beretta 12G Cocking Dog L/H |
| 3 | BER-C52983 | Right cocking lever | Warehouse Stock Beretta 12G Cocking Dog R/H |
| 5 | BER-C54832 | Lower right firing pin | Warehouse Stock Beretta 12G Bottom Striker |
| 6 | BER-C54833 | Upper left firing pin | Warehouse Stock Beretta 12G Top Striker |
| 8 | BER-C57268 | Safety lever | Warehouse Stock Beretta 12G Safety Rocker |
| 9 | BER-C5G833 | Key pin | Warehouse Stock Beretta 694 Top Lever Cam |
| 10 | BER-C5J006 | Single selective Trigger safety | BER-C5J006 Not Available |
| 11 | BER-C5C866 | Hinge pin | Warehouse Stock Beretta 690 Hinge Disc 11mm Std |
| 12 | BER-C5K727 | Hinge pin screw | BER-C5K727 Not Available |
| 13 | BER-C5L652 | Key | BER-C5L652 Not Available |
| 14 | BER-C5G196 | Selector lever | BER-C5G196 Not Available |
| 15 | BER-C5D029 | Lever pin | Warehouse Stock Beretta Safety Selector Pivot Pin (BER-C5D029) |
| 16 | BER-C5D442 | Safety spring pin | Warehouse Stock Beretta 690 Series Safety Catch Pin |
| 17 | BER-C5D465 | Latch | BER-C5D465 Not Available |
| 19 | BER-C90113 | Firing pin spring | Warehouse Stock Beretta Striker Return Spring |
| 20 | BER-C90143 | Selector Lever Spring | Warehouse Stock Beretta Safety Selector Spring |
| 21 | BER-C90180 | Key retrieval spring | Warehouse Stock Beretta 12G Top Lever Spring |
| 22 | BER-C90225 | Cocking lever spring | Warehouse Stock Beretta Cocking Dog Spring |
| 23 | BER-C90354 | Safety lever spring | Warehouse Stock Beretta 12G Safety Rocker Spring |
| 24 | BER-C90364 | Safety spring | Warehouse Stock Beretta 690 Safety Spring |
| 26 | BER-C92177 | Cocking lever pin | Warehouse Stock Beretta Cocking Dog Plunger |
| 27 | BER-C92178 | Key spring pin | Warehouse Stock Beretta 12G Top Lever Spring Plunger |
| 29 | BER-C92181 | Cocking lever pin | Warehouse Stock Beretta 12G Cocking Dog Retaining Pin |
| 30 | BER-C92182 | Inertia Block Pin | Warehouse Stock Beretta Inertia Reset Arm Pin |
| 31 | BER-C95012 | Safety spring screw | Warehouse Stock Beretta Safety Spring Screw |
| 34 | BER-C97053 | 2.5mm ball | Warehouse Stock Beretta Safety Selector Ball |
| 35 | BER-C97093 | Elastic pin 2.50x20 | Warehouse Stock Beretta 1301 Elastic Pin |
| 36 | BER-C5H216 | Reinforced trigger guard locking screw | Warehouse Stock Beretta 690 Top Tang Screw New Black |
| 37 | BER-C5D715 | Automatic safety rod | Warehouse Stock Beretta Auto Safe Rod |
| 38 | BER-C56138 | Automatic safety washer | Warehouse Stock Beretta Auto Safe Plate |
| 58b | BER-C95140 | Trigger guard locking screw | Warehouse Stock Beretta Trigger Plate Locking Screw Black |
| 81 | BER-C5F787 | Torx screw 4x10 | Warehouse Stock Beretta DT11 Black Top Lever Screw |
| 160 | BER-C5H605 | Left side plate | Warehouse Stock Beretta Ultraleggero LH 12G Side Plate |
| 161 | BER-C5H606 | Right side plate | BER-C5H606 Not Available |
| 162 | BER-C7C960 | Receiver forend cap | BER-C7C960 Not Available |
| 192 | BER-C90097 | Key stop pin spring | BER-C90097 Not Available |
Barrel

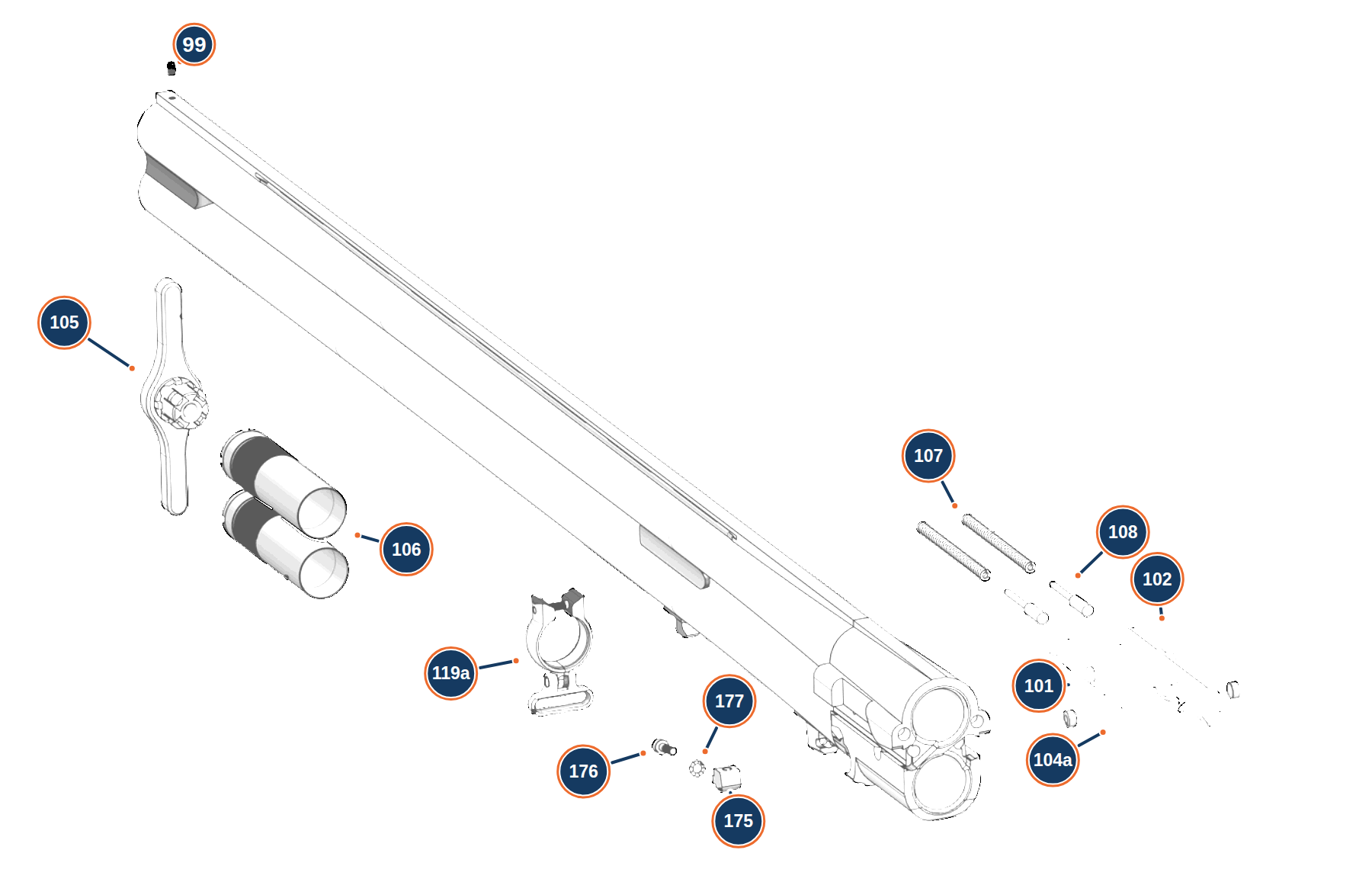

Ultraleggero 12G Barrel exploded diagram.
