Beretta A400 Xplor Action 12G Parts Guide

Use the exploded diagrams and part numbers below to find Beretta A400 Xplor Action 12G spares and accessories available from Blue Fieldsports.

Shop A400 Xplor Action 12G parts

Browse A400 Xplor Action 12G parts available from Blue Fieldsports.

Part	Part code	Status	Price
Beretta 1301 Comp Trigger Bush D-Clip (70)	`BER-C5A326`	In stock	£3.00	View product
Beretta 1301 Trigger Group Pin	`BER-C92407`	In stock	£8.00	View product
Beretta 391 Cut Off Spring Pin	`BER-C97038`	In stock	£7.50	View product
Beretta 391/ 400 carrier Latch Retaining Pin	`BER-C92168`	In stock	£7.00	View product
Beretta A400 Striker Retaining O Ring	`BER-C5A354`	In stock	£7.00	View product
Pad Screw - 40mm	`BER-C95192`	In stock	£5.00	View product

Beretta A400 Xplor Action 12G exploded diagrams and parts

Trigger Group

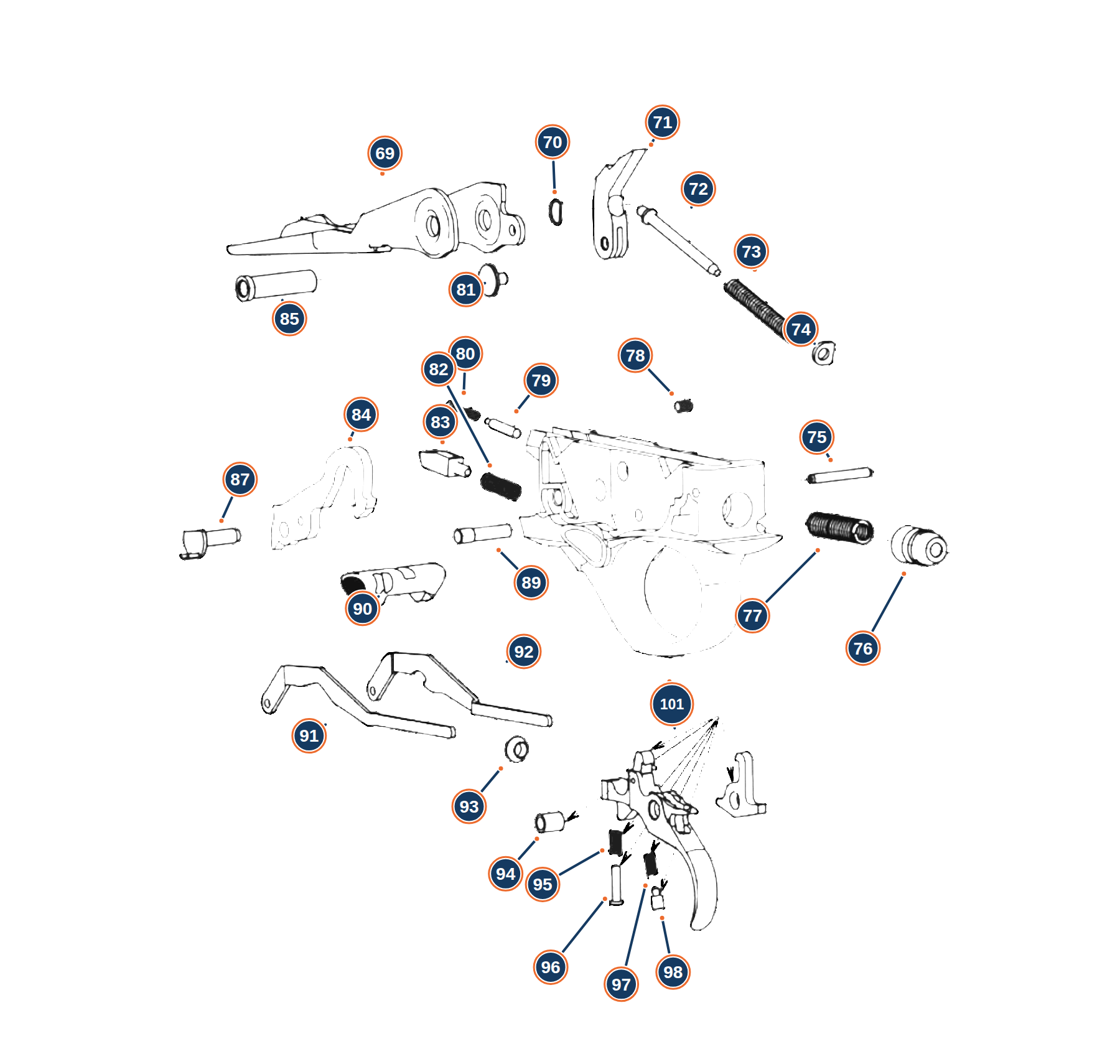

A400 Xplor Action 12G Trigger Group exploded diagram.

Position	Beretta Code	Description	Product Link
69	`BER-C5D552`	Elevator	Warehouse Stock Beretta A400 1301 Carrier 3 Inch
70	`BER-C5A326`	Retaining Ring Coaster Plug	In stock Beretta 1301 Comp Trigger Bush D-Clip (70)
71	`BER-C5D343`	Elevator Lever	Warehouse Stock Beretta A400 Carrier Lever
72	`BER-C5D533`	Elevator Lever Spring Guide	`BER-C5D533` Not Available
73	`BER-C95315`	Elevator Lever Spring	Warehouse Stock Beretta 1301 / A400 Carrier Lever Spring
74	`BER-C5D774`	Elevator Lever Guide Plate	Warehouse Stock Beretta 1301 Carrier Lever Spring Guide Plate
75	`BER-C97093`	Elastic plug 2.50x20	Warehouse Stock Beretta 1301 Elastic Pin
76	`BER-C5B992`	Hammer Bag Holder	`BER-C5B992` Not Available
77	`BER-C97258`	Spring Hammer	Warehouse Stock Beretta A400 Hammer Spring
78	`BER-C59072`	Forend cap grain M 3x4	`BER-C59072` Not Available
79	`BER-C58985`	Safety Spring Peg	Warehouse Stock Beretta 1301 Safety Spring Plunger
80	`BER-C90382`	Safety spring	Warehouse Stock Beretta 1301 Safety Spring
81	`BER-C92286`	Elevator Pivot	Warehouse Stock Beretta 1301 Carrier Lever Pin
82	`BER-C95323`	Elevator stop peg spring	`BER-C95323` Not Available
83	`BER-C59929`	Elevator Stop Peg	Warehouse Stock Beretta 1301 Carrier Stop Pin
84	`BER-C76616`	Complete hammer	Warehouse Stock Beretta 1301 Hammer
85	`BER-C5D775`	Elevator Bushing	Warehouse Stock Beretta 1301 Elevator Bush
87	`BER-C92213`	Hammer Pin Type	`BER-C92213` Not Available
89	`BER-C5F383`	Trigger Pin Type	`BER-C5F383` Not Available
90	`BER-C5D323`	Ambidextrous safety	`BER-C5D323` Not Available
91	`BER-C5D328`	Left shoulder strap	Warehouse Stock Beretta 1301 Left Hammer Brace
92	`BER-C5D329`	Right shoulder strap	Warehouse Stock Beretta 1301 Right Hammer Brace
93	`BER-C5D426`	Hammer Spring Sleeve	`BER-C5D426` Not Available
94	`BER-C50757`	Trigger Compass	`BER-C50757` Not Available
95	`BER-C90093`	Trigger Spring	Warehouse Stock Beretta 1301 Trigger Spring
96	`BER-C5D697`	Trigger spring guide	`BER-C5D697` Not Available
97	`BER-C90094`	Spring pawl Retention Snap	Warehouse Stock Beretta 1301 Locking Bolt Trip Spring
98	`BER-C92028`	Spring Peg Retaining Snap	`BER-C92028` Not Available
101	`BER-C88449`	Full Trigger	Warehouse Stock Beretta 1301 Chrome Trigger Assembly

Slide

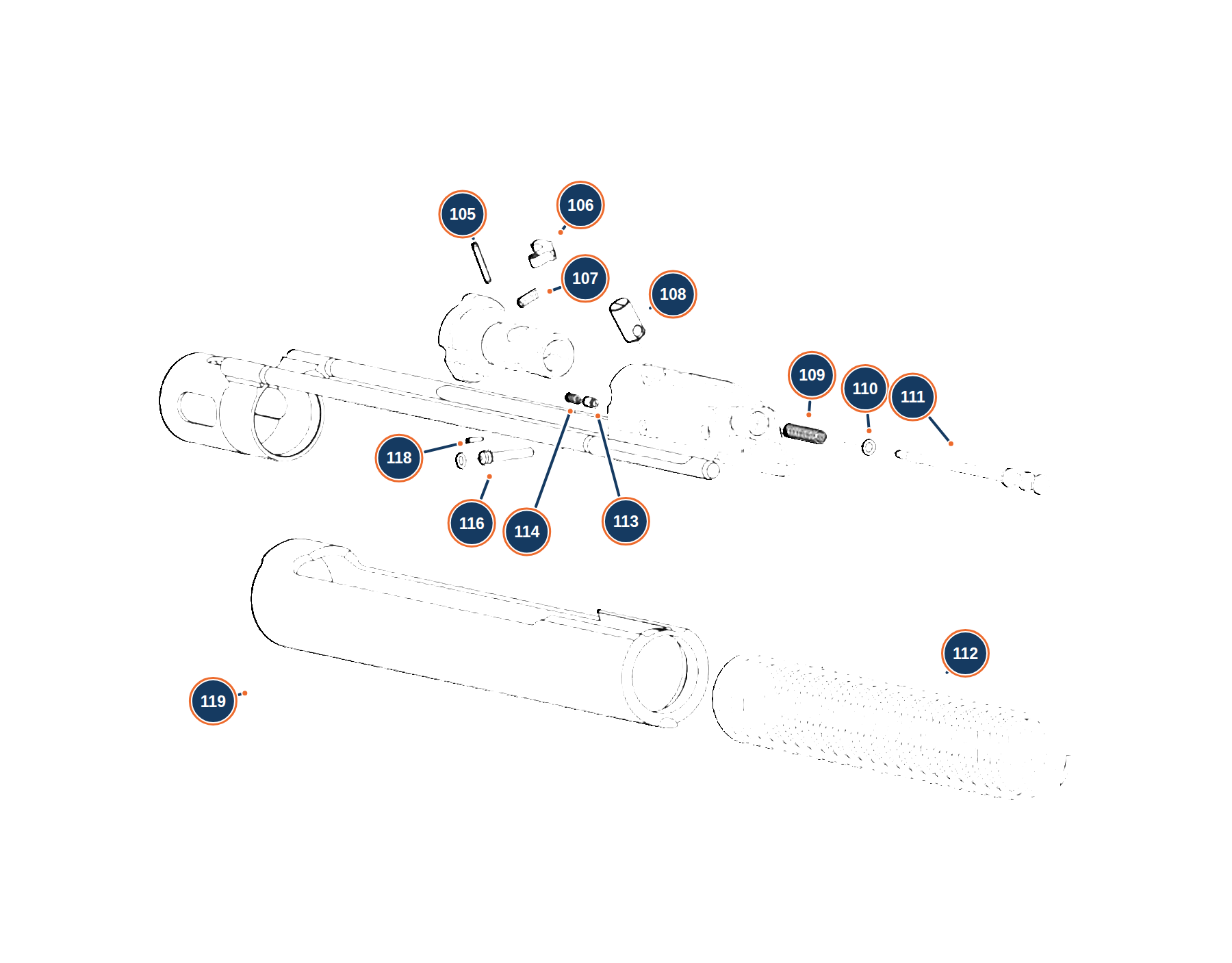

A400 Xplor Action 12G Slide exploded diagram.

Position	Beretta Code	Description	Product Link
105	`BER-C97887`	Elastic plug 2x14	`BER-C97887` Not Available
106	`BER-C59922`	Extractor	`BER-C59922` Not Available
107	`BER-C95316`	Spring Puller Spring	Warehouse Stock Beretta 1301 Extractor Spring
108	`BER-C92278`	Shutter pin	Warehouse Stock Beretta 1301 Breech Bolt Pin
109	`BER-C95322`	Firing Pin Spring	Warehouse Stock Beretta 1301 Firing Pin Spring
110	`BER-C5A354`	Ring 3x1	In stock Beretta A400 Striker Retaining O Ring
111	`BER-C5D326`	Firing pin	Warehouse Stock Beretta 1301 Firing Pin
112	`BER-C95313`	Recovery Spring	Warehouse Stock Beretta 1301 Recoil Spring
113	`BER-C59930`	Piston pull	Warehouse Stock Beretta 1301 Cocking Handle Plunger
114	`BER-C95324`	Piston spring puller	Warehouse Stock Beretta 1301 Cocking Handle Plunger Spring
116	`BER-C72332`	Striker Plug Retainer Assembly	Warehouse Stock Beretta 1301 Firing Pin Retaining Pin Assembly
118	`BER-C97122`	Safety Lever Plug	Warehouse Stock Beretta 1301 Cocking Handle Roll Pin
119	`BER-C5B965`	Body Bag Tube	Warehouse Stock Beretta A400 Recoil Spring Guide Tube

Forend

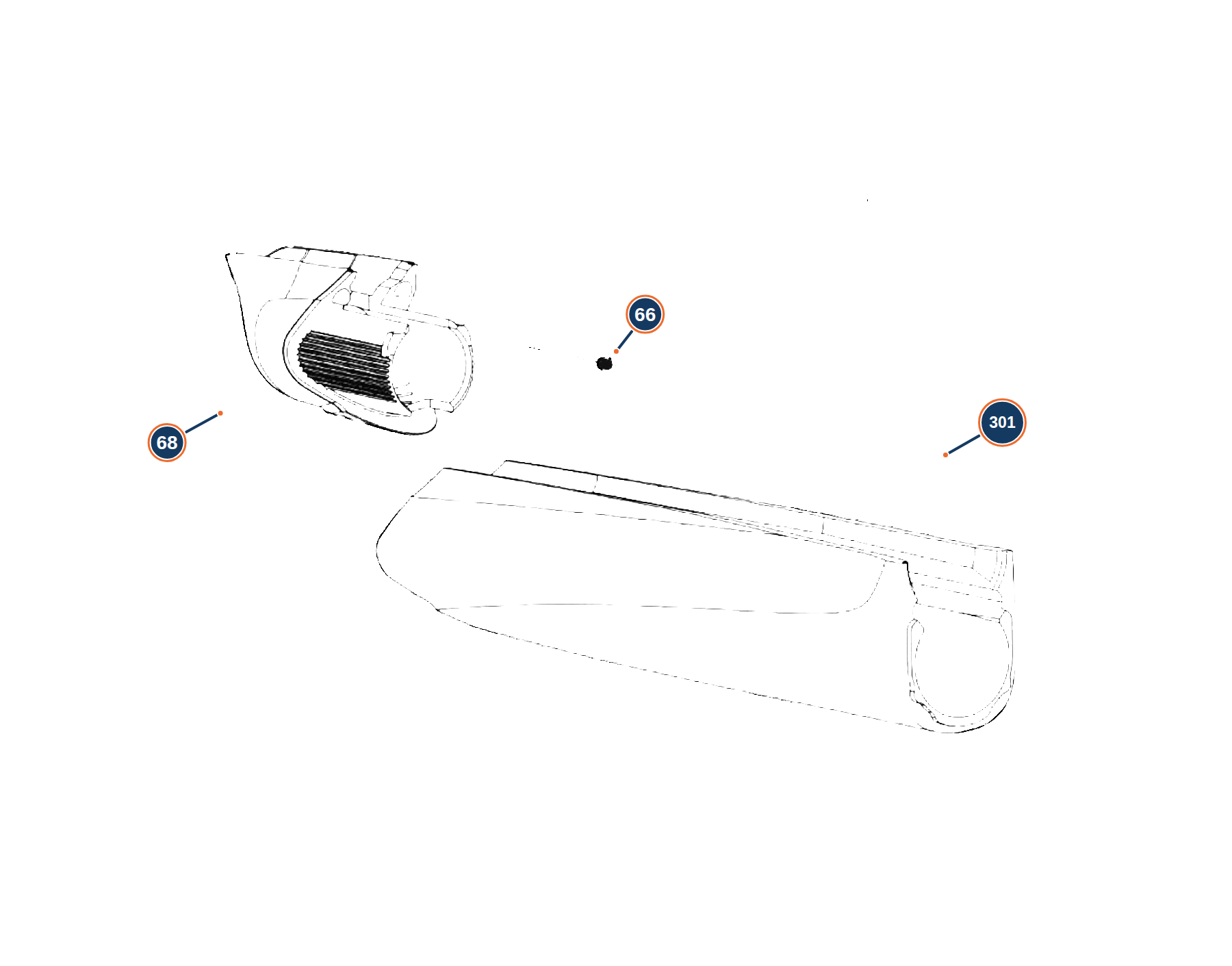

A400 Xplor Action 12G Forend exploded diagram.

Position	Beretta Code	Description	Product Link
301	`BER-C8A420`	Forend	`BER-C8A420` Not Available
66	`BER-C59072`	Front Sight Hood	`BER-C59072` Not Available
68	`BER-C8A040`	Front Sight Hood Assembly	`BER-C8A040` Not Available

Gunpod

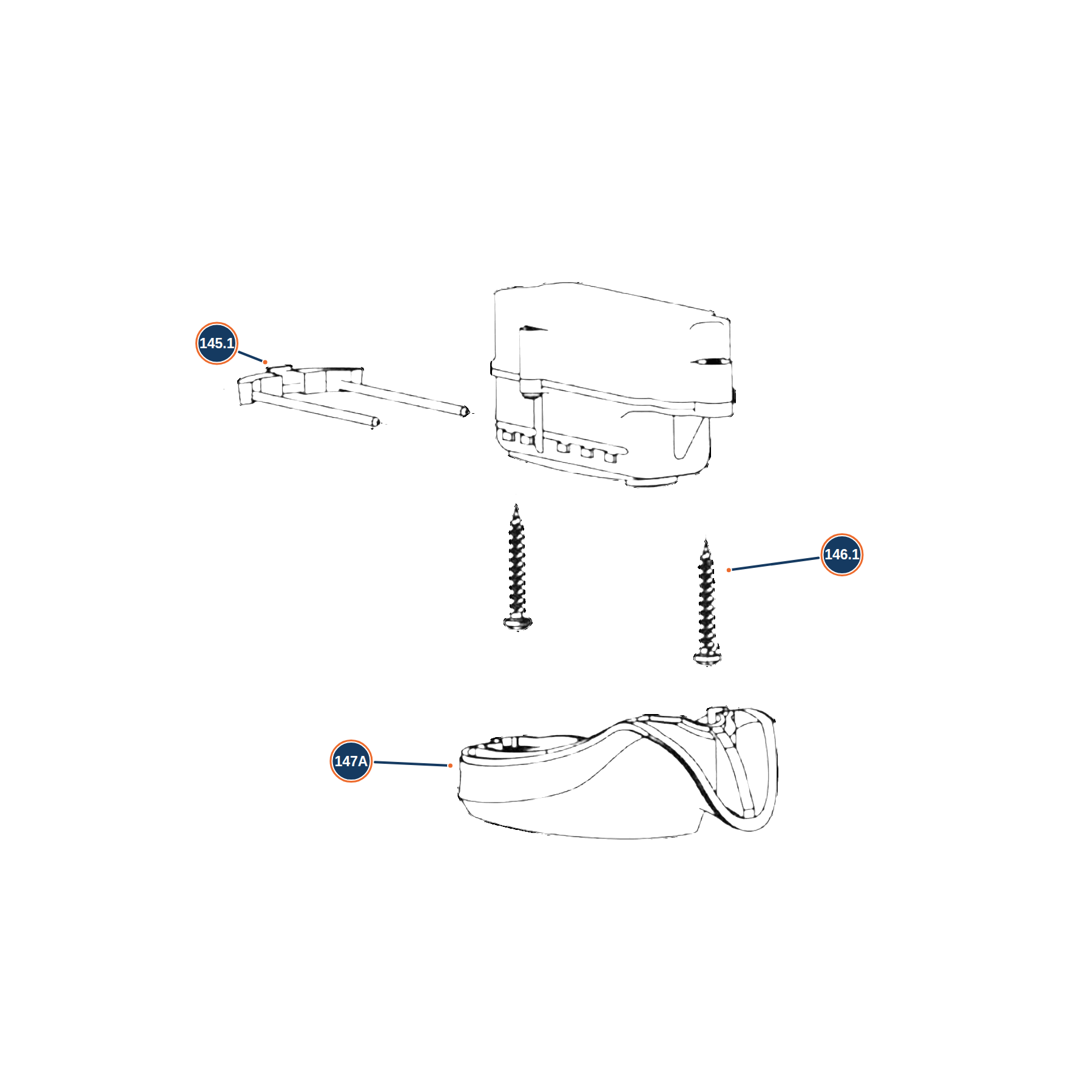

A400 Xplor Action 12G Gunpod exploded diagram.

Position	Beretta Code	Description	Product Link
145.1	`BER-C5E010`	Gun Pod Retaining Spring	`BER-C5E010` Not Available
146.1	`BER-C97253`	Screw 146	`BER-C97253` Not Available
147A	`BER-C5D995`	Buttstock Cap Gun Pod	`BER-C5D995` Not Available

Overview

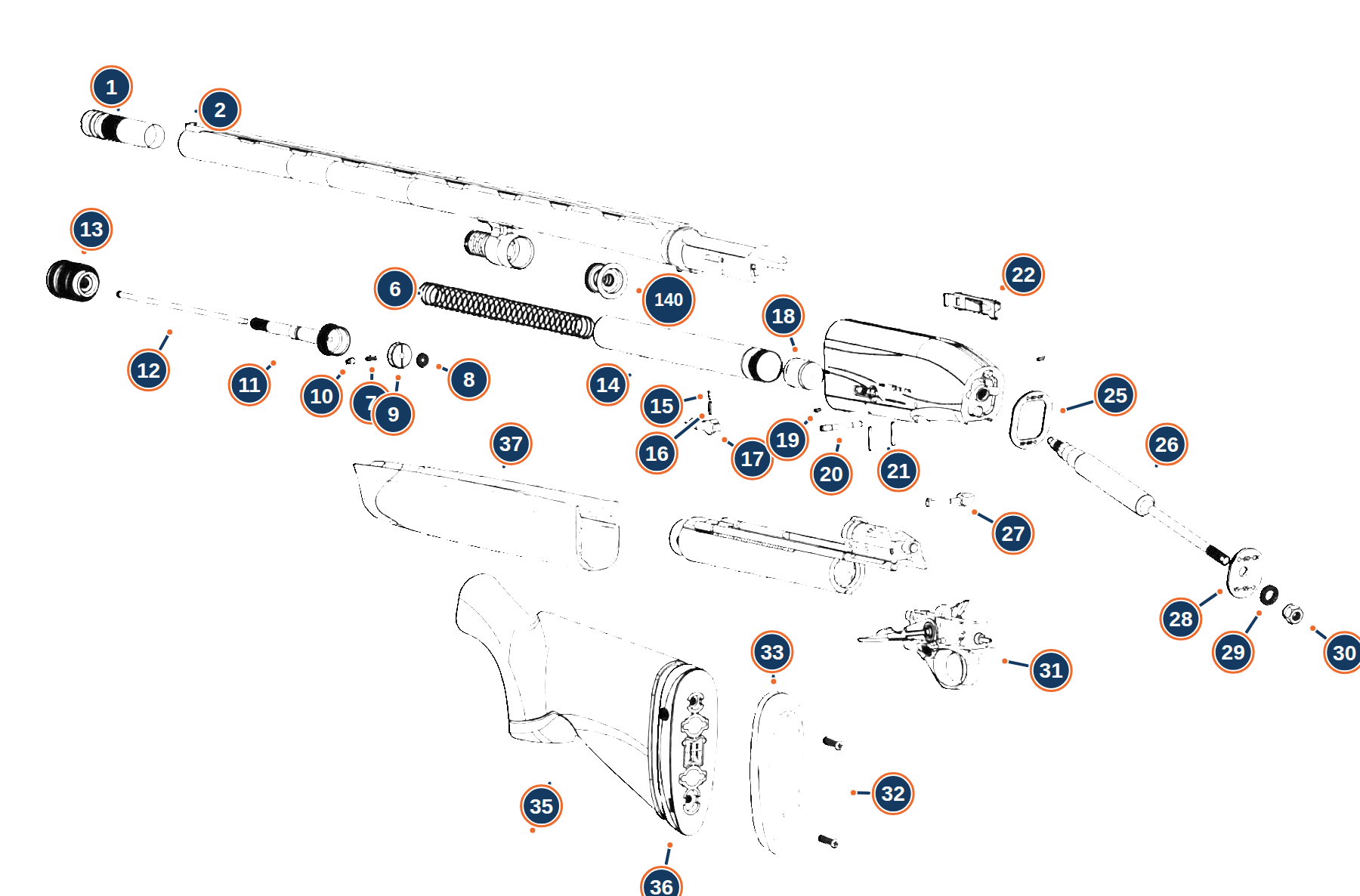

A400 Xplor Action 12G Overview exploded diagram.

Position	Beretta Code	Description	Product Link
1	`BER-C62073`, `BER-C62074`	Chokes	Warehouse Stock Beretta 12G OptimaChoke HP Flush 1/4 Choke Warehouse Stock Beretta Choke - O/C.Hp Flush 12G Cyl
2	`BER-C55674`	Front Sight	Not currently in stock Beretta 1301 Small Red Front Bead Sight
6	`BER-C9A008`	Magazine Spring	Warehouse Stock Beretta Magazine Spring A400 Xplor
7	`BER-C90094`	Spring pawl retaining snap	Warehouse Stock Beretta 1301 Locking Bolt Trip Spring
8	`BER-C97192`	Spring washer for fixing gearbox	`BER-C97192` Not Available
9	`BER-C59094`	Magazine tube cap plunger guide	Warehouse Stock Beretta 391 12G Mag Tube Cap Packing
10	`BER-C59095`	Tank Hose Stopper	Warehouse Stock Beretta 391 12G Mag Tube Cap Stop Pin
11	`BER-C5D197`	Tank Hose Cap	Warehouse Stock Beretta A400 Mag Tube Cap
12	`BER-C5B984`, `BER-C5B985`	Tank reducer	`BER-C5B984` Not Available `BER-C5B985` Not Available
13	`BER-C8A118`	Tank Hose Cap Assembly	Warehouse Stock Beretta A400 Forend Nut
14	`BER-C5D196`, `BER-C5D789`	Fuel Tank Hose	`BER-C5D196` Not Available Warehouse Stock Beretta A400 Xplor Crimped Mag Tube 12G
15	`BER-C92034`	Piol cut off	Warehouse Stock Beretta 391 Cut Off Switch Plunger
16	`BER-C90377`	Safety spring	`BER-C90377` Not Available
17	`BER-C89290`	Cut off	`BER-C89290` Not Available
18	`BER-C5B602`	Tank Tube Cap	Warehouse Stock Beretta 1301 12G Magazine Follower
19	`BER-C97038`	Elastic plug cut off	In stock Beretta 391 Cut Off Spring Pin
20	`BER-C92407`	Under guard mounting plug	In stock Beretta 1301 Trigger Group Pin
21	`BER-C92168`	Pin cut off	In stock Beretta 391/ 400 carrier Latch Retaining Pin
22	`BER-C8B012`	Axiom cartridge control lever	Warehouse Stock Beretta Cartridge Latch Assy For A400 Lite Ga 12
25	`BER-C58978`, `BER-C58979`	Front plate	Warehouse Stock Beretta 1301 Front Stock Shim 55/60 Warehouse Stock Beretta 1301 Front Stock Shim 50/65
26	`BER-C8A326`	Shock Absorber Tie Rod Assembly	Warehouse Stock Beretta A400 Stock Bolt Tube Assembly Xcel Action Parallel
27	`BER-C5J292`	Puller	Warehouse Stock Beretta A400 Cocking Handle Blued 12G 20G
28	`BER-C55403`, `BER-C55404`	Back plate	Warehouse Stock Beretta 1301 Stock Drop Plate 50/65 Warehouse Stock Beretta 1301 Stock Drop Plate 55/60
29	`BER-C97200`	Stock Elastic Washer	Warehouse Stock Beretta 1301 Stock Retaining Nut Washer
30	`BER-C97174`	Locking nut stock	Warehouse Stock Beretta 1301 Stock Retaining Nut
31	`BER-C89785`	Trigger group	Warehouse Stock Beretta A400 Trigger Group Assy Black Light/Xcel/Action
32	`BER-C95192`, `BER-C97237`	Butt Plug Screw	In stock Pad Screw - 40mm Warehouse Stock Beretta A400 Pad Screw M5X20
33	`BER-E73004`, `BER-E73005`, `BER-E73006`	Recoil pad	Not currently in stock Beretta Microcore Field Pad Thick 20MM Not currently in stock Beretta Micro Core Field Pad Medium 15mm Warehouse Stock Beretta Micro Core Field Pad Thin 10mm
35	`BER-C8A865`, `BER-E8A442`, `BER-E8A443`	Stock 1	`BER-C8A865` Not Available `BER-E8A442` Not Available `BER-E8A443` Not Available
36	`BER-C88306`	Kick-off	Warehouse Stock Beretta Field Kick Off Unit
37	`BER-C8A420`	Forend	`BER-C8A420` Not Available
140	`BER-C8A323`	Piston assembly	Warehouse Stock Beretta A400 Piston Assembly

Barrel

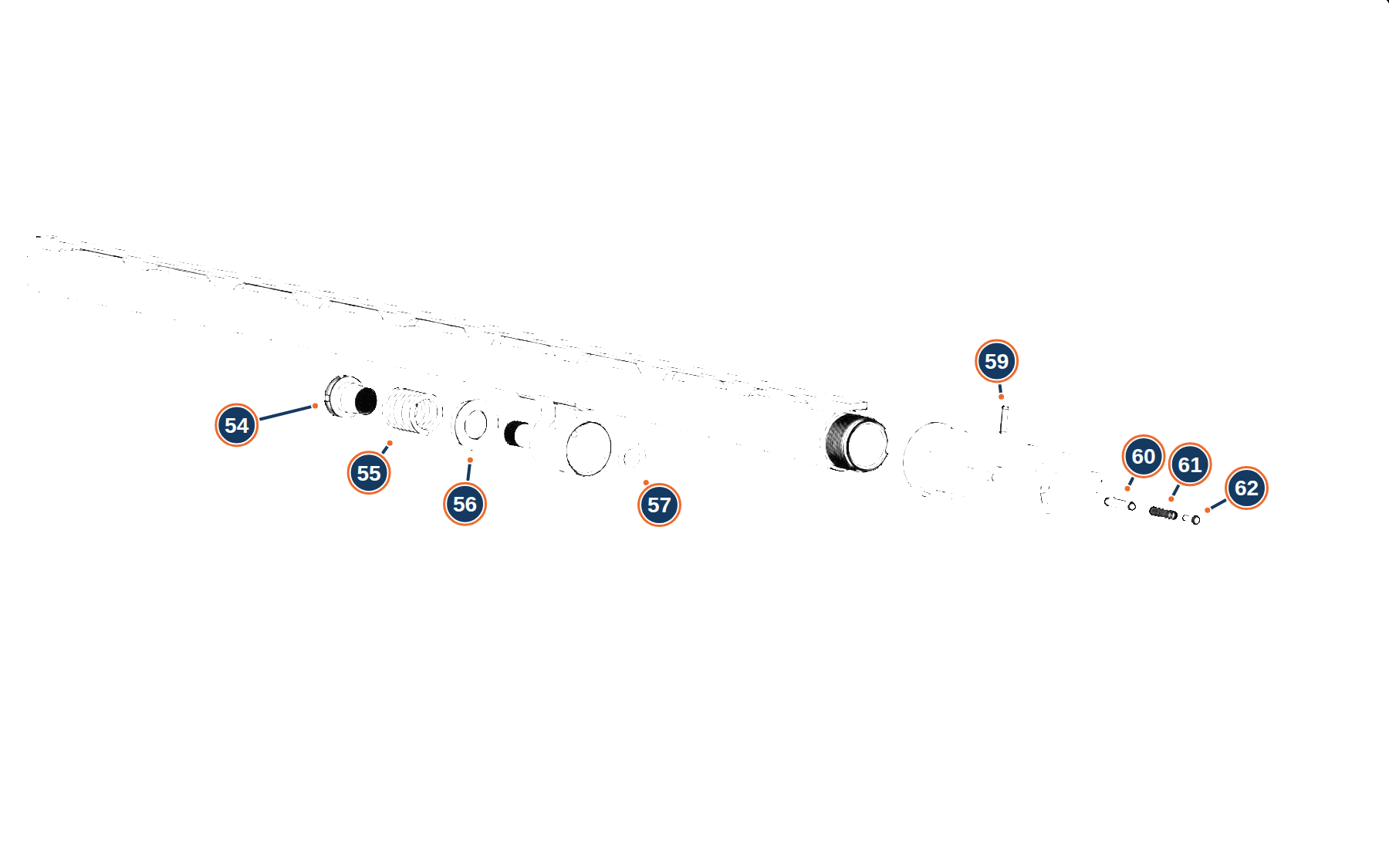

A400 Xplor Action 12G Barrel exploded diagram.

Position	Beretta Code	Description	Product Link
54	`BER-C5D199`	Valve Ring	Warehouse Stock Beretta A400 Gas Valve Nut
55	`BER-C58929`	Valve Spring	Warehouse Stock Beretta 391 Gas Valve Spring
56	`BER-C58930`	Valve	Warehouse Stock Beretta 391 Gas Valve Washer
57	`BER-C5D334`	Seal / Ring	Warehouse Stock Beretta A400 Xtreme Magazine Tube Cap Insert Plunger Oring
59	`BER-C92287`	Elastic Pin 3x12	Warehouse Stock Beretta 1301 Ejector Roll Pin
60	`BER-C5F324`, `BER-C5G575`	Extractor	`BER-C5F324` Not Available Warehouse Stock Beretta 1301 Ejector
61	`BER-C90378`	Extractor Spring	Warehouse Stock Beretta A400 Ejector Spring 3 Inch
62	`BER-C92393`	Extractor Retaining Pin	Warehouse Stock Beretta A400 Ejector Spring Guide 3 Inch

Stock

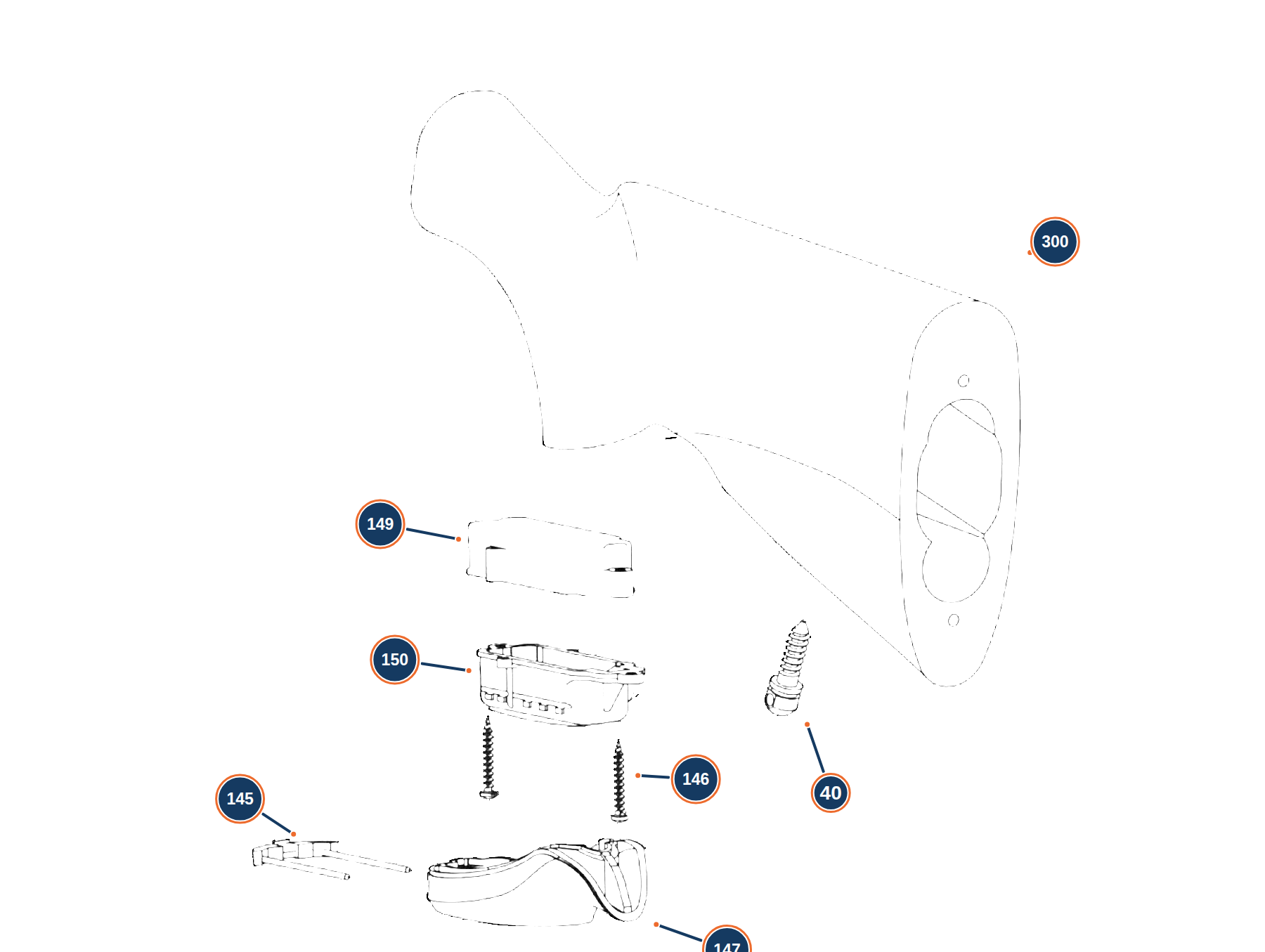

A400 Xplor Action 12G Stock exploded diagram.

Position	Beretta Code	Description	Product Link
40	`BER-C60197`	Swivel support wood stock	Warehouse Stock Beretta A400 A300 Rear Stock Swivel Stud
145	`BER-C5E010`	Spring Latch Gun Pod	`BER-C5E010` Not Available
146	`BER-C97253`	Screw 2.9x25	`BER-C97253` Not Available
147	`BER-C5E471`	Stock hammer nose no gun pod	`BER-C5E471` Not Available
149	`BER-C5D986`	Lower Counter Blow Cover	`BER-C5D986` Not Available
150	`BER-C5D987`	Upper Counter Blow Cover	`BER-C5D987` Not Available
300	`BER-C8A865`	Stock	`BER-C8A865` Not Available

Need help finding a part?

Send us the diagram section and position number.
