Beretta 687 Silver Pigeon III 12G spare parts
Beretta 687 Silver Pigeon III 12G Parts Guide
Use the exploded diagrams and part numbers below to find Beretta 687 Silver Pigeon III 12G spares and accessories available from Blue Fieldsports.
Shop 687 Silver Pigeon III 12G parts
Browse 687 Silver Pigeon III 12G parts available from Blue Fieldsports.
| Part | Part code | Status | Price | |
|---|---|---|---|---|
| Beretta 68 Series Ejector Plunger - 12G | BER-C92208 | In stock | £5.00 | View product |
| Beretta 68 Series Ejector Spring - 12g | BER-C90421 | In stock | £5.00 | View product |
| Nickel Bead Front Sight - Round | BER-C53659 | In stock | £10.00 | View product |
| Pad Screw - 40mm | BER-C95192 | In stock | £5.00 | View product |
Beretta 687 Silver Pigeon III 12G exploded diagrams and parts
Trigger Group
687 Silver Pigeon III 12G Trigger Group exploded diagram.
Calcio

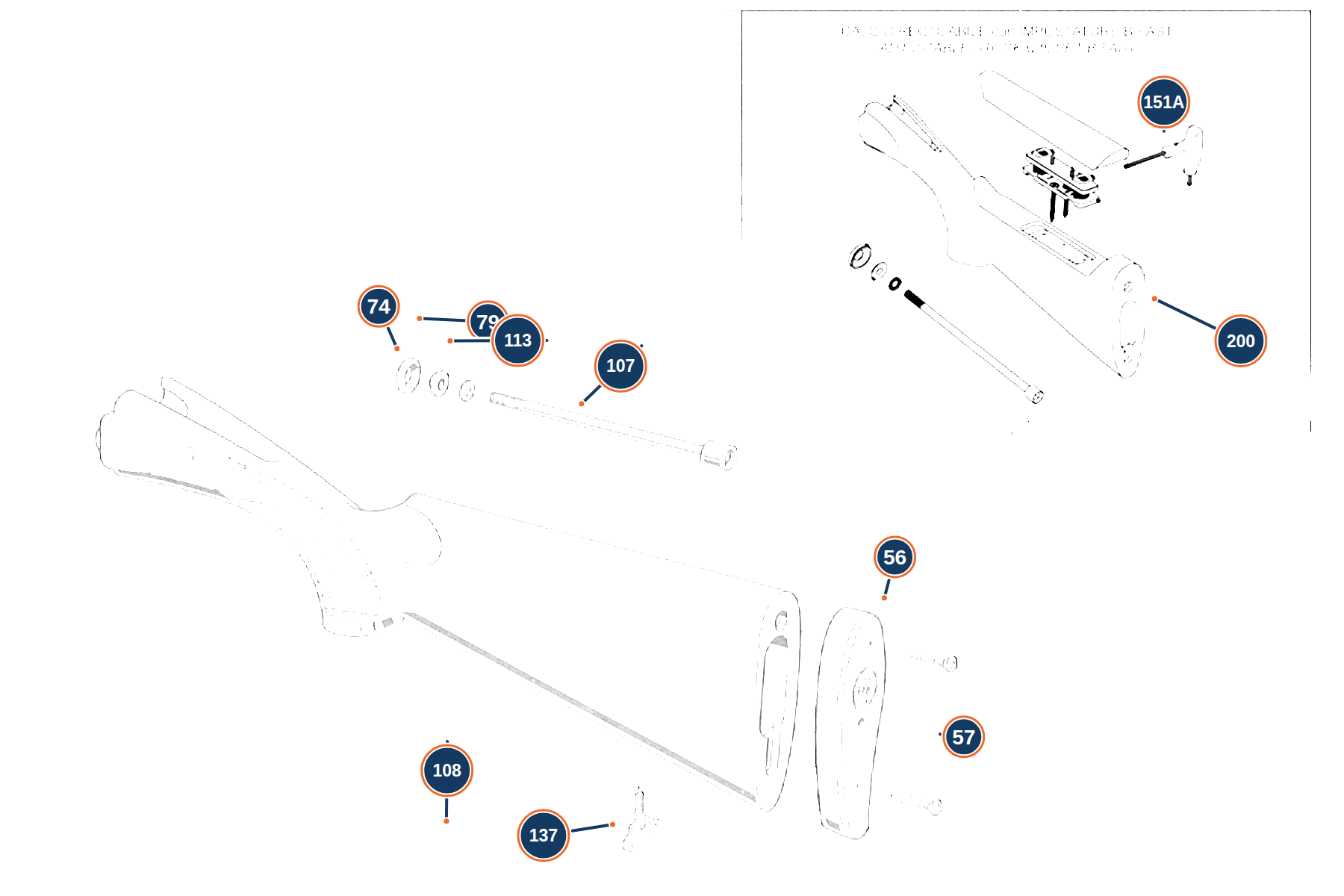

687 Silver Pigeon III 12G Calcio exploded diagram.
| Position | Beretta Code | Description | Product Link |
|---|---|---|---|
| 56 | BER-E73029 | Recoil Pad | Not currently in stock Beretta Micro Core Comp Sport Pad X/Thick 28mm |
| 57 | BER-C95192 | Butt Plate Screw 4x40 | In stock Pad Screw - 40mm |
| 74 | BER-C56146 | Concave Washer | Warehouse Stock Beretta Stock Bolt Washer |
| 79 | BER-C56147 | Convex Washer | Warehouse Stock Beretta Stock Bolt Washer Small (680'S Bin79) |
| 107 | BER-C95205 | Bolt Screw | Warehouse Stock Beretta 680 Stock Bolt |
| 108 | BER-C5L952, BER-C5L953, BER-C5L960, BER-C8G411, BER-C8G412, BER-C8G413, BER-C8G414 | Stock | Warehouse Stock Beretta 687 Silver Pigeon 3 Stock RH Field 12G My20BER-C5L953 Not AvailableBER-C5L960 Not AvailableBER-C8G411 Not AvailableBER-C8G412 Not AvailableWarehouse Stock Beretta 687 Silver Pigeon 3 Stock Set RH Field Rounded 12G Not currently in stock Beretta 687 Silver Pigeon 3 Stock RH Field Vittoria Schn |
| 113 | BER-C97079 | Spring Washer 6,40 | Warehouse Stock Beretta Stock Bolt Spring Washer (680'S Bin 113) |
| 137 | BER-C62021 | Stock Swivel Base Assembly | Warehouse Stock Beretta Rear Swivel S/Auto |
| 151A | BER-C62410 | B-Fast Stock Insert Key | Warehouse Stock Beretta B Fast Adjustable Stock Allen Key |
| 200 | BER-C8G419, BER-C8G420, BER-C8G421, BER-C8G422, BER-C8G425, BER-C8G426, BER-C8G427, BER-C8G428, BER-C8G429 | Adjustable Stock | BER-C8G419 Not AvailableBER-C8G420 Not AvailableBER-C8G421 Not AvailableBER-C8G422 Not AvailableBER-C8G425 Not AvailableBER-C8G426 Not AvailableBER-C8G427 Not AvailableNot currently in stock Beretta Silver Pigeon 3 Sport Vittoria Adj Stock Set 12G BER-C8G429 Not Available |
Forend

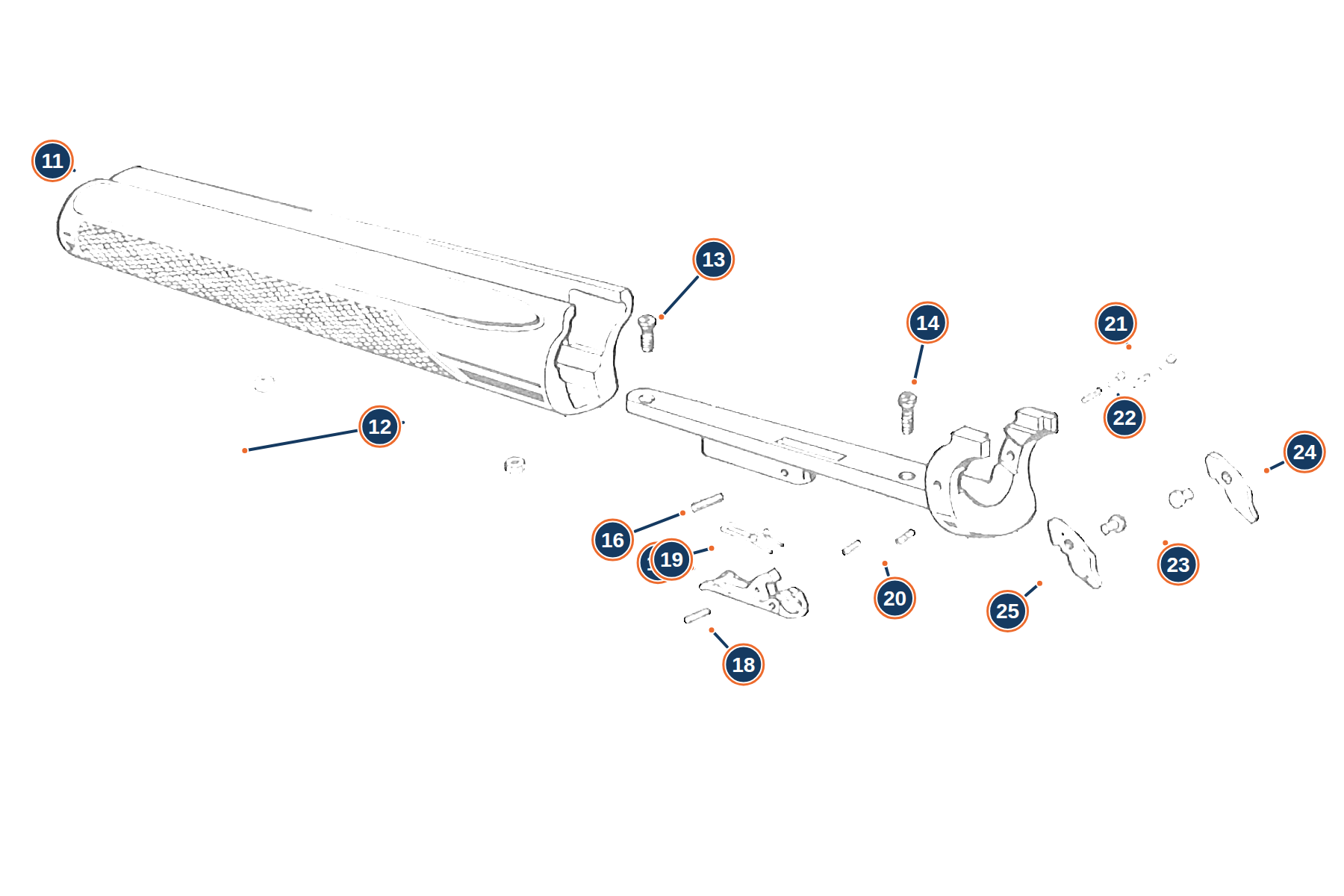

687 Silver Pigeon III 12G Forend exploded diagram.
Receiver

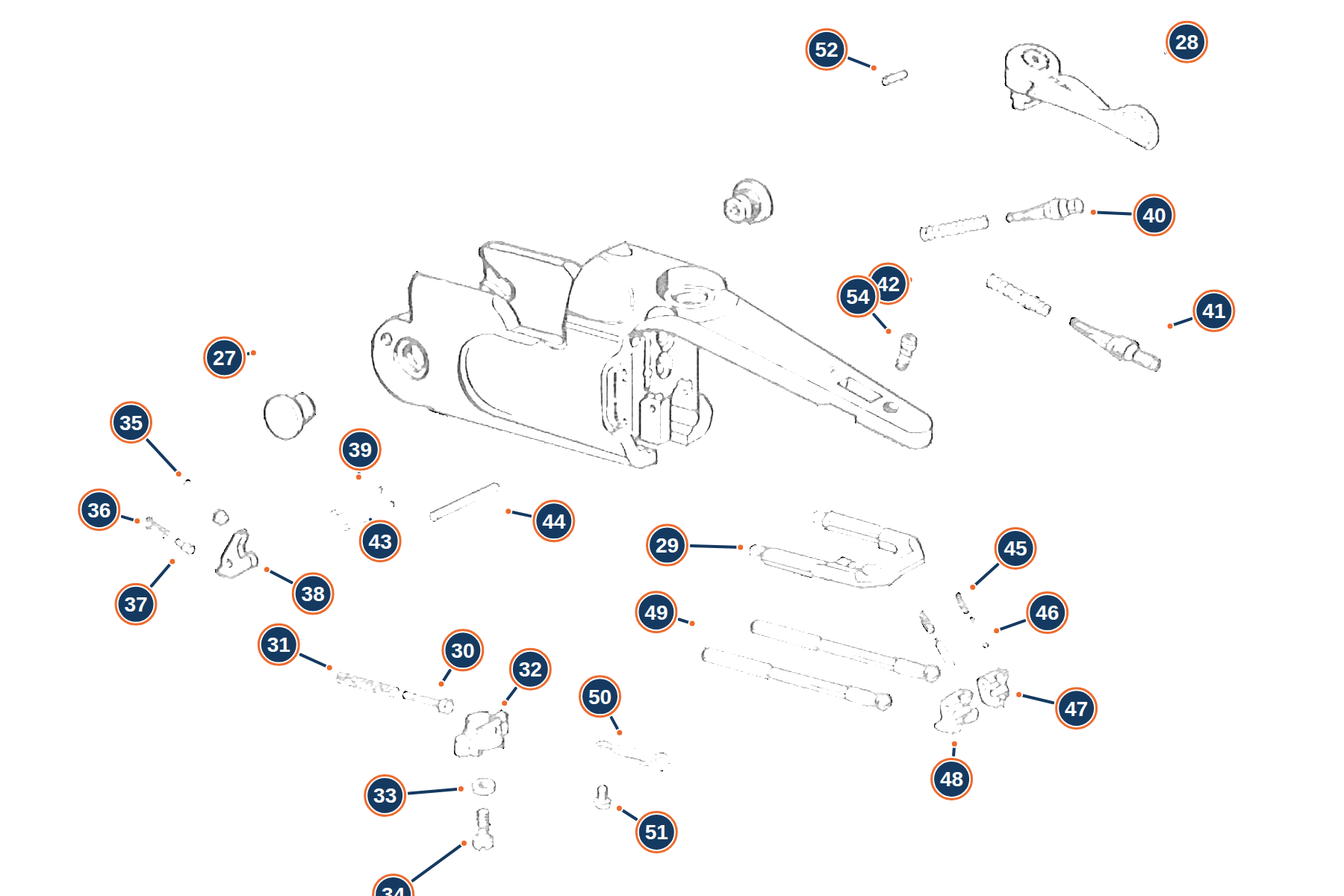

687 Silver Pigeon III 12G Receiver exploded diagram.
Barrel

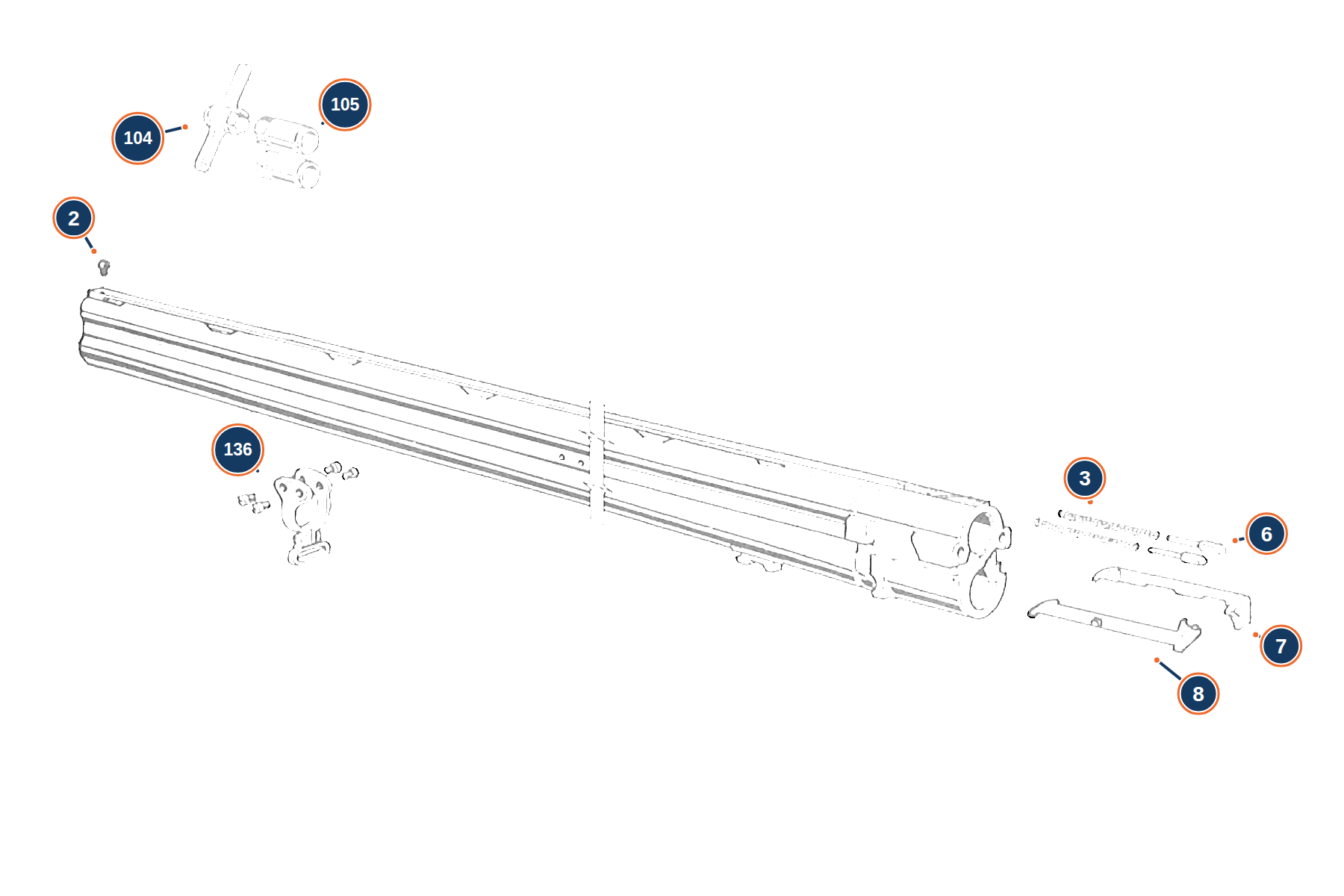

687 Silver Pigeon III 12G Barrel exploded diagram.
| Position | Beretta Code | Description | Product Link |
|---|---|---|---|
| 2 | BER-C53659 | Sight | In stock Nickel Bead Front Sight - Round |
| 3 | BER-C90421 | Extractor Spring | In stock Beretta 68 Series Ejector Spring - 12g |
| 6 | BER-C92208 | Extractor Pin | In stock Beretta 68 Series Ejector Plunger - 12G |
| 7 | BER-E52329 | Right Lower Extractor | Warehouse Stock Beretta 12G Bottom R/H Ejector |
| 8 | BER-E52332 | Left Lower Extractor | Warehouse Stock Beretta 12G Top L/H Ejector |
| 136 | BER-C62040 | Swivel | BER-C62040 Not Available |
| 104 | BER-C71500 | Choke Tube wrench | Not currently in stock Beretta Choke Key 12G |
| 105 | BER-C62070, BER-C62071, BER-C62072, BER-C62073, BER-C62074 | Choketubes | Warehouse Stock Beretta Choke - O/C.Hp Flush 12G Full Warehouse Stock Beretta Choke - O/C.Hp Flush 12G 3/4 Warehouse Stock Beretta Choke - O/C.Hp Flush 12G 1/2 Warehouse Stock Beretta 12G OptimaChoke HP Flush 1/4 Choke Warehouse Stock Beretta Choke - O/C.Hp Flush 12G Cyl |
