Beretta 686 Silver Pigeon I Sport MY19 12G Parts Guide
This partial Sport guide links exact Beretta 686 codes that Beretta lists for Competition use. Positions without code-level Sport evidence are marked Not Available.
Shop 686 Silver Pigeon I Sport MY19 12G shared parts
Browse shared Sport parts currently available from Blue Fieldsports.
| Part | Part code | Status | Price | |
|---|---|---|---|---|
| Beretta 686 / 687 / 694 / DT11 / Ultraleggero Ejector Plunger 12G | BER-C92208 | In stock | £5.00 | View product |
| Beretta 686 / 687 / 694 / DT11 / Ultraleggero Ejector Spring 12G | BER-C90421 | In stock | £5.00 | View product |
Beretta 686 Silver Pigeon I Sport MY19 12G reference diagrams and parts
The reference drawings are based on the corresponding 686 Silver Pigeon I platform register. Use the product links only for the shared Sport parts confirmed below.

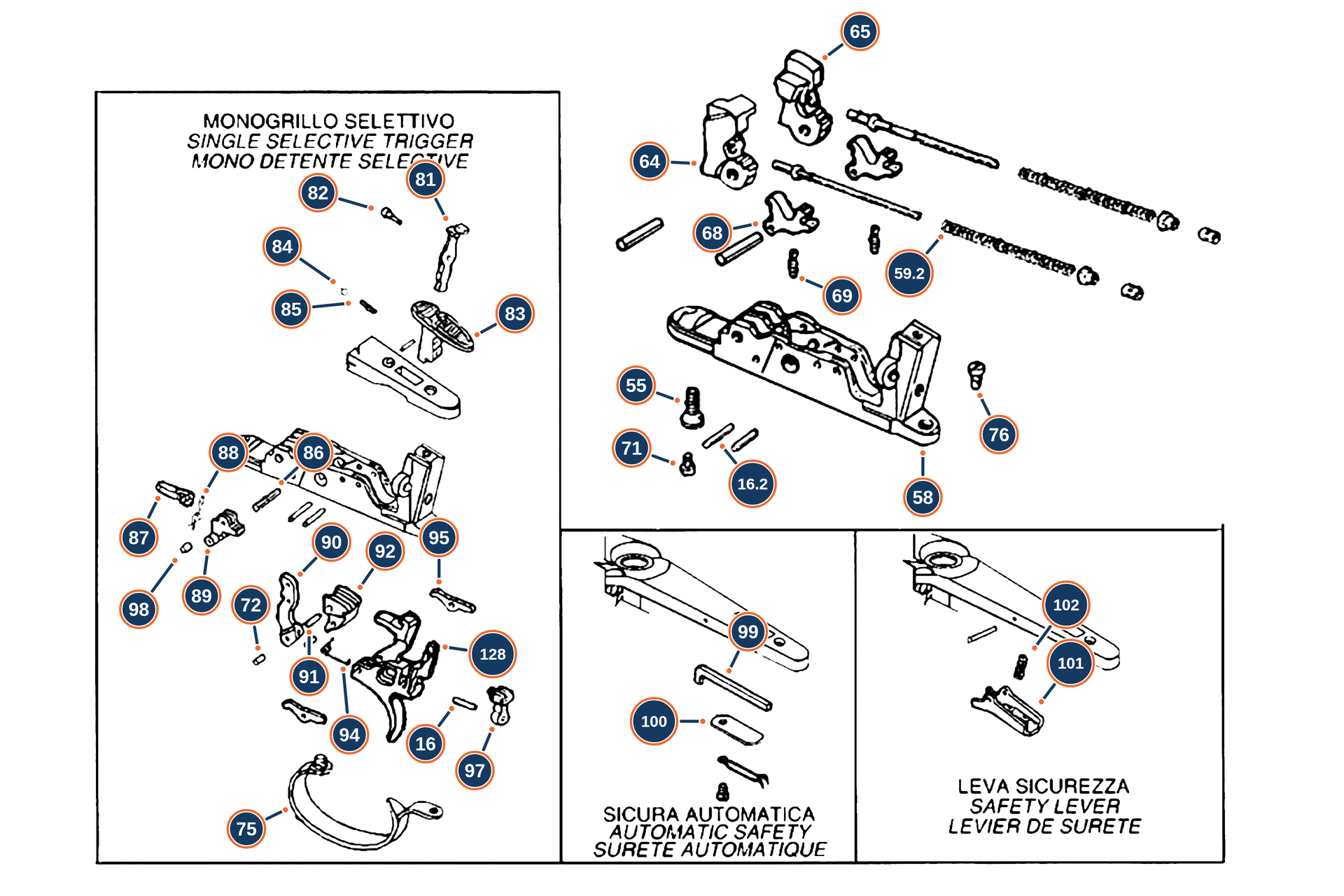

Trigger Group
686 platform reference diagram for 686 Silver Pigeon I Sport MY19 12G. Only rows with a product link are confirmed shared Sport parts.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 16 | BER-C92180 | Not Available | Elastic pin 2x10 |
| 16.2 | BER-C92180 | Not Available | Trigger–latch hook pin |
| 55 | BER-C95260 | Not Available | Trigger‑guard fixing screw |
| 58 | BER-C58884 | Not Available | Trigger guard |
| 59.2 | BER-C88992 | ||
| 64 | BER-C5G988 | ||
| 65 | BER-C5G987 | ||
| 68 | BER-C92183 | ||
| 69 | BER-C90183 | Not Available | Sear lever spring |
| 71 | BER-C97087 | Not Available | Elastic pin 2x14 |
| 72 | BER-C92039 | ||
| 75 | BER-C7C318 | Not Available | Nickel forend iron |
| 76 | BER-C95239 | Not Available | Nickel forend screw |
| 81 | BER-C55294 | Not Available | Selector lever, nickel finish |
| 82 | BER-C55217 | Not Available | Selector lever pin |
| 83 | BER-C58948 | ||
| 84 | BER-C97053 | ||
| 85 | BER-C90143 | Not Available | Single‑trigger selector lever spring |
| 86 | BER-C92182 | ||
| 87 | BER-C54618 | ||
| 88 | BER-C53760 | ||
| 89 | BER-C53123 | ||
| 90 | BER-C56723 | Not Available | Single‑trigger mass support |
| 91 | BER-C97037 | Not Available | Elastic pin 2x12 |
| 92 | BER-C53629 | ||
| 94 | BER-C54221 | ||
| 95 | BER-C53023 | ||
| 97 | BER-C54627 | ||
| 98 | BER-C97054 | ||
| 99 | BER-C5D715 | Not Available | Automatic safety rod |
| 100 | BER-C56138 | Not Available | Automatic safety washer |
| 101 | BER-C57268 | Not Available | Safety lever |
| 102 | BER-C90354 | ||
| 128 | BER-C5J249 | Not Available | Selective single trigger |

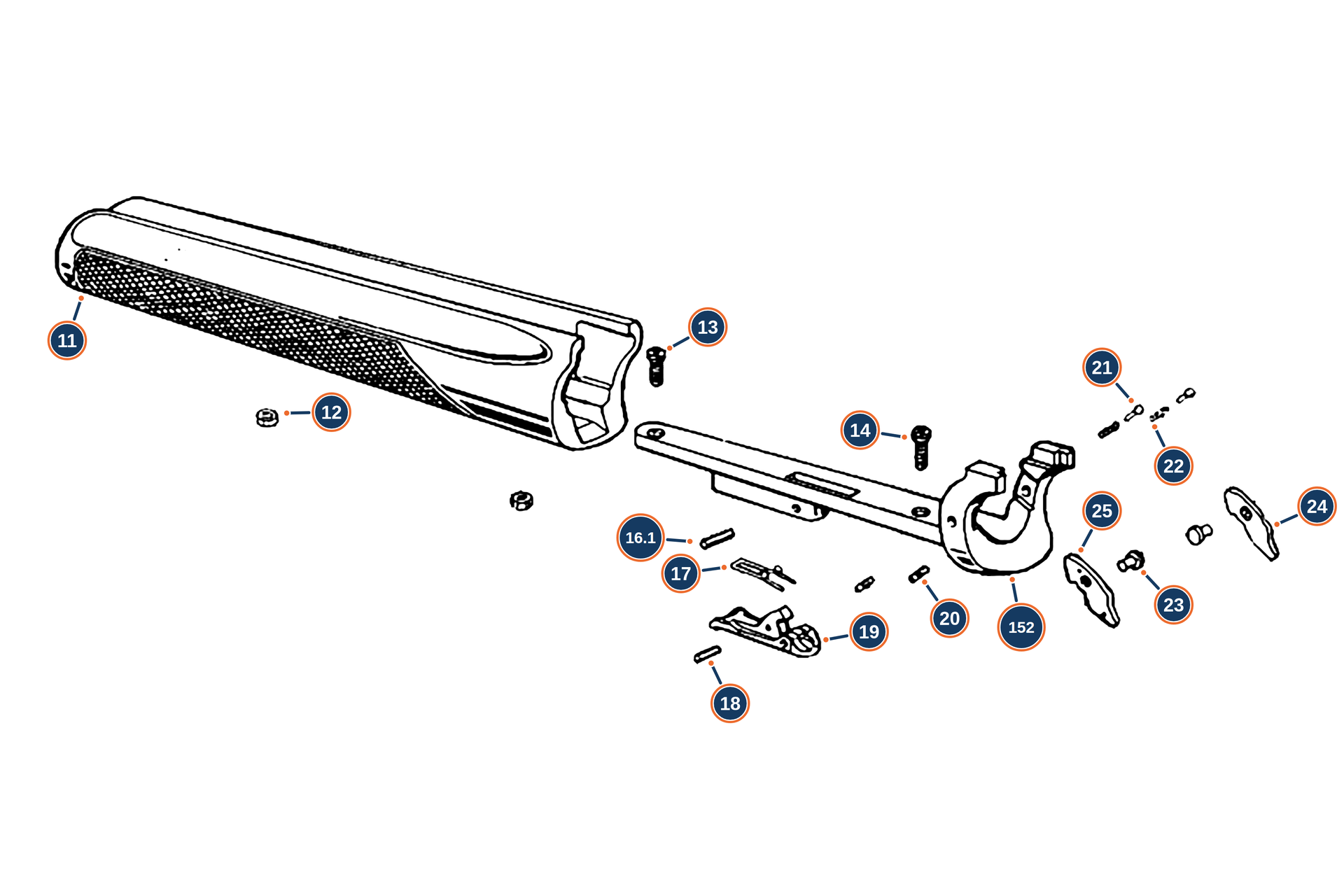

Forend
686 platform reference diagram for 686 Silver Pigeon I Sport MY19 12G. Only rows with a product link are confirmed shared Sport parts.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 11 | BER-C54429 | Not Available | Forend |
| 12 | BER-C55285 | Not Available | Nickel‑plated forend washer |
| 13 | BER-C95248 | Not Available | Nickel‑plated iron fixing screw |
| 14 | BER-C95249 | Not Available | Rear nickel‑plated iron fixing screw |
| 16.1 | BER-C92180 | Not Available | Trigger–latch hook pin |
| 17 | BER-C54044 | Not Available | Latch spring |
| 18 | BER-C97060 | Not Available | Elastic pin 2x10 |
| 19 | BER-C5K336 | Not Available | Latch hook |
| 20 | BER-C95106 | Not Available | Latch lever pin screw |
| 21 | BER-C92185 | Not Available | Latch lever pin |
| 22 | BER-C90184 | Not Available | Latch lever spring |
| 23 | BER-C55282 | Not Available | Nickel‑plated latch lever pin |
| 24 | BER-C53036 | Not Available | Right latch lever |
| 25 | BER-C53035 | Not Available | Left latch lever |
| 152 | BER-E02656 | Not Available | Latch assembly |

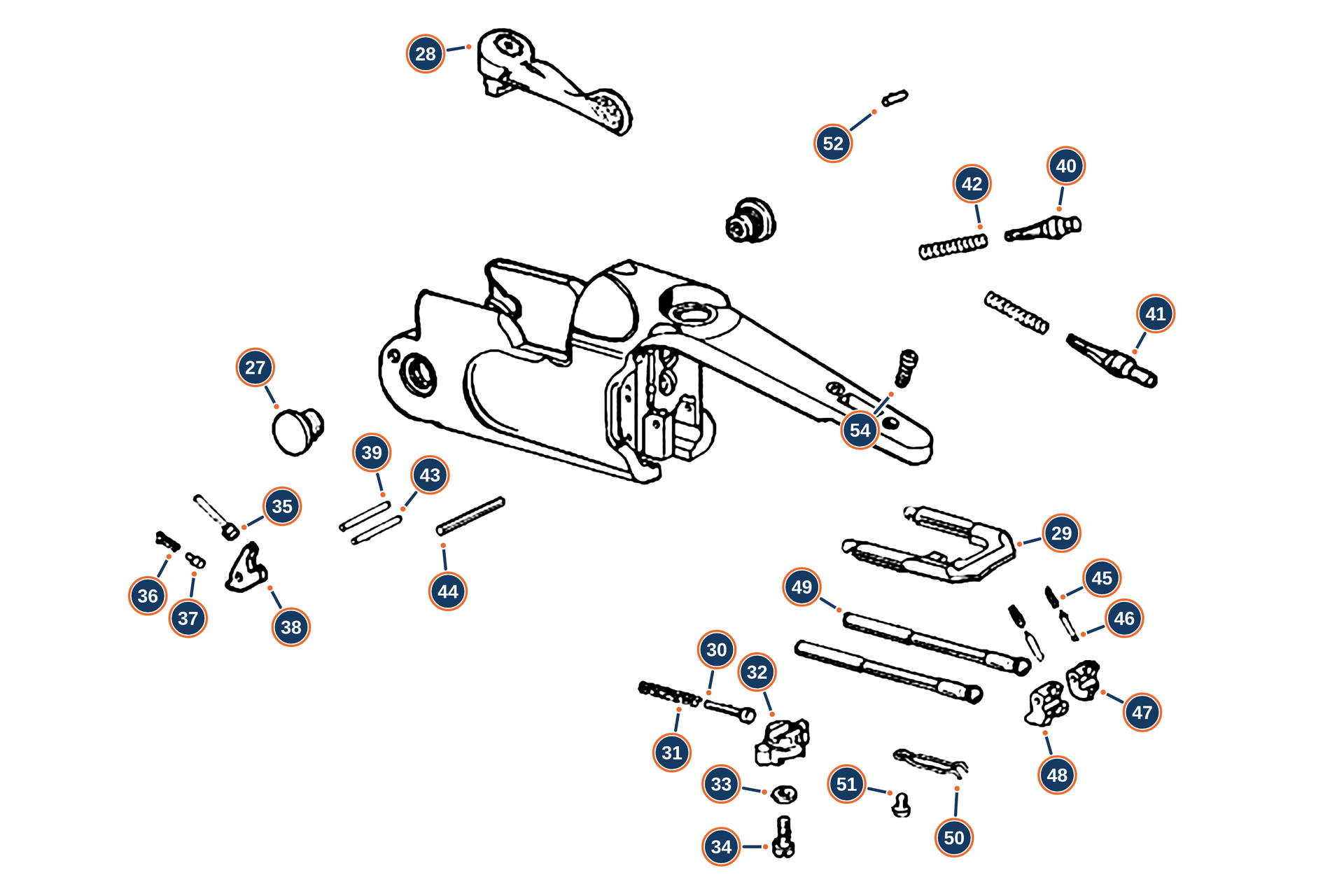

Receiver
686 platform reference diagram for 686 Silver Pigeon I Sport MY19 12G. Only rows with a product link are confirmed shared Sport parts.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 27 | BER-C5K334 | Not Available | Nickel-plated hinge pin |
| 28 | BER-C5K335 | Not Available | Nickel key |
| 29 | BER-C51615 | Not Available | Locking bolt |
| 30 | BER-C92178 | ||
| 31 | BER-C90180 | Not Available | Locking bolt return spring |
| 32 | BER-C5B214 | ||
| 33 | BER-C95370 | Not Available | Slotted nut |
| 34 | BER-C95369 | ||
| 35 | BER-C54878 | Not Available | Locking bolt release plunger |
| 36 | BER-C90094 | Not Available | Sear retention spring |
| 37 | BER-C92098 | Not Available | Sear retention spring plunger |
| 38 | BER-C5F471 | Not Available | Locking bolt safety lever |
| 39 | BER-C92179 | ||
| 40 | BER-C54832 | ||
| 41 | BER-C54833 | ||
| 42 | BER-C90113 | ||
| 43 | BER-C97093 | Not Available | Elastic pin 2.50x20 |
| 44 | BER-C92181 | ||
| 45 | BER-C90225 | ||
| 46 | BER-C92177 | ||
| 47 | BER-C52983 | ||
| 48 | BER-C52982 | ||
| 49 | BER-C50317 | Not Available | Cocking rod |
| 50 | BER-C90014 | Not Available | Safety spring |
| 51 | BER-C95012 | ||
| 52 | BER-C92020 | Not Available | Safety pin 2x10 |
| 54 | BER-C95236 | Not Available | Trigger plate tie‑rod screw |

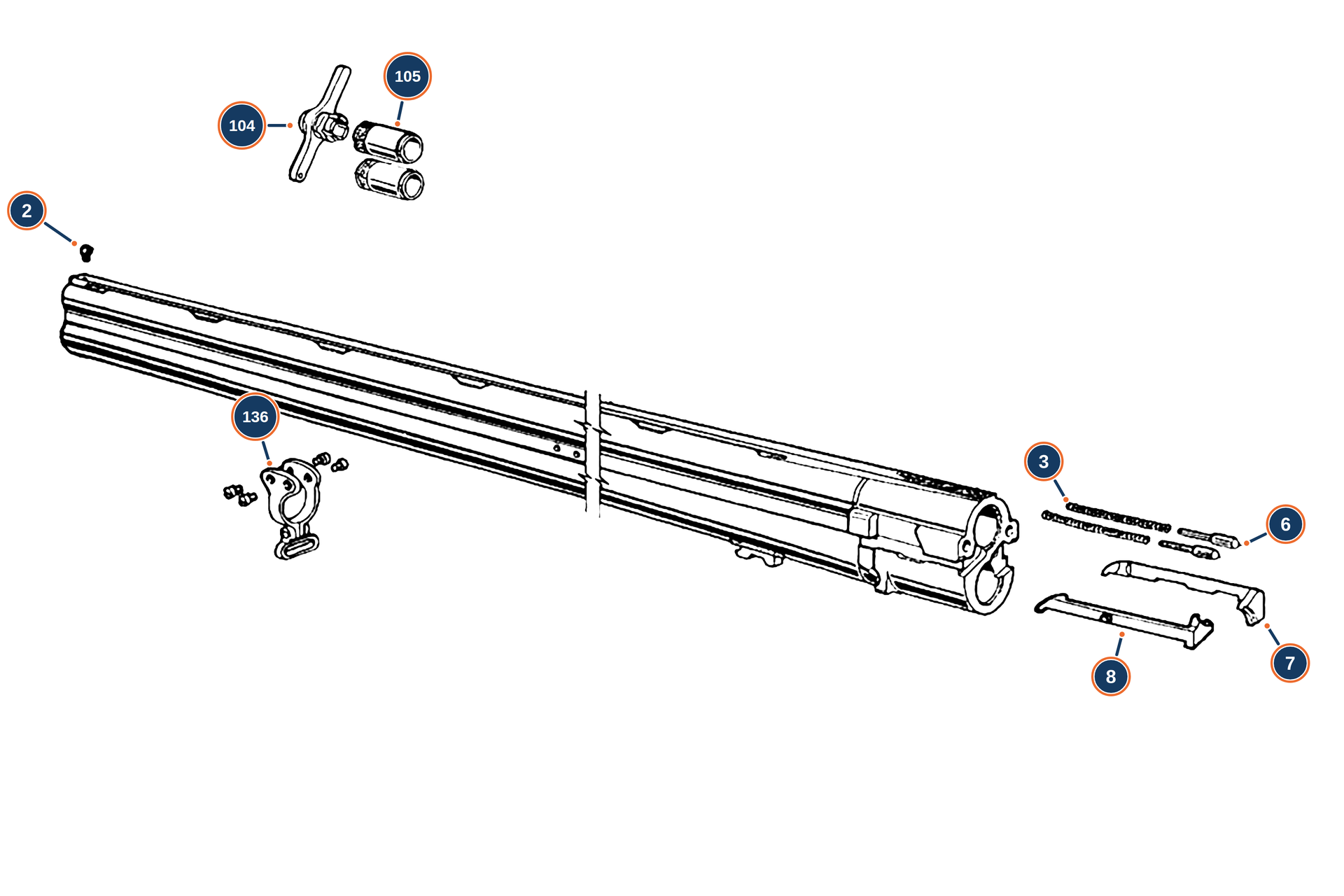

Barrel
686 platform reference diagram for 686 Silver Pigeon I Sport MY19 12G. Only rows with a product link are confirmed shared Sport parts.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 2 | BER-C53659 | Not Available | Alpacca front sight |
| 3 | BER-C90421 | ||
| 6 | BER-C92208 | ||
| 7 | BER-E52329 | Not Available | Right extractor |
| 8 | BER-E52332 | Not Available | Left extractor |
| 104 | BER-C71500 | Not Available | Choke key |
| 105 | BER-C62070 | Not Available | Chokes |
| 136 | BER-C62040 | Not Available | Over/under barrel swivel kit |

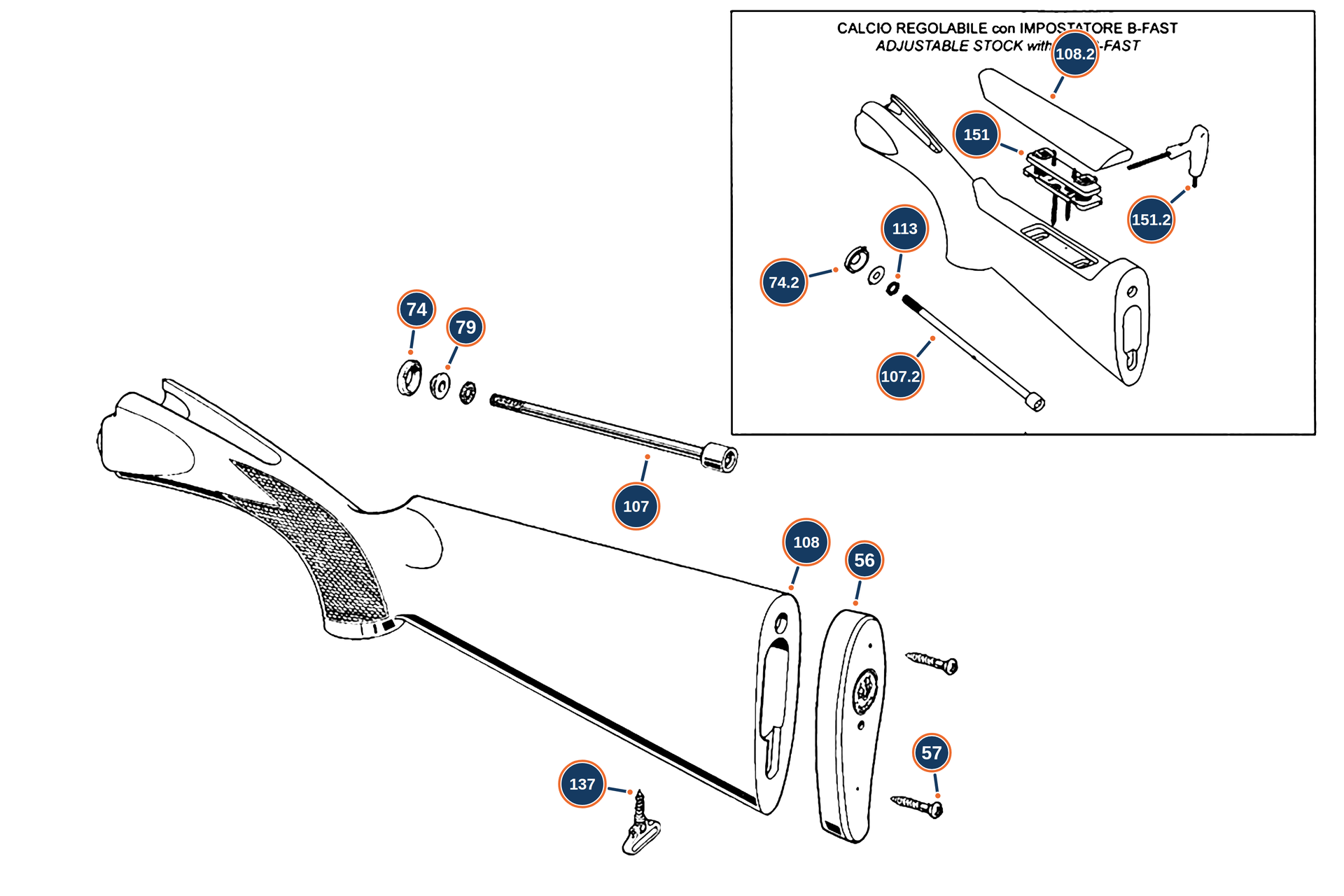

Stock
686 platform reference diagram for 686 Silver Pigeon I Sport MY19 12G. Only rows with a product link are confirmed shared Sport parts.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 56 | BER-C53608 | Not Available | Recoil pad |
| 57 | BER-C95192 | Not Available | Recoil pad screw |
| 74 | BER-C56146 | ||
| 74.2 | BER-C58038 | Not Available | Concave draw‑bolt washer |
| 79 | BER-C56147 | ||
| 107 | BER-C95205 | ||
| 107.2 | BER-C95329 | Not Available | Adjustable stock draw‑bolt screw |
| 108 | BER-C5E274BER-C5E275BER-C5K963BER-C8F332BER-C8F333 | Not Available Not Available Not Available Not Available Not Available | Stock Stock Stock Stock Stock |
| 108.2 | BER-C8C067BER-C8C072BER-C8C073BER-C8F337BER-C8F338BER-C8F341BER-C8F342 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available | Adjustable stock Adjustable stock Adjustable stock Adjustable stock Adjustable stock Adjustable stock Adjustable stock |
| 113 | BER-C97079 | Not Available | Elastic washer |
| 137 | BER-C62020 | Not Available | Stock swivel plate |
| 151 | BER-C8C398 | Not Available | Adjuster assembly |
| 151.2 | BER-C62410 | Not Available | Comb‑adjuster key |
