Beretta 686 Silver Pigeon I Hunting MY24 12G spare parts

Beretta 686 Silver Pigeon I Hunting MY24 12G Parts Guide

Use the exploded diagrams and part numbers below to find Beretta 686 Silver Pigeon I Hunting MY24 12G spares and accessories available from Blue Fieldsports.

Shop 686 Silver Pigeon I Hunting MY24 12G parts

Browse 686 Silver Pigeon I Hunting MY24 12G parts available from Blue Fieldsports.

Part	Part code	Status	Price
Beretta 68 Series Ejector Plunger - 12G	`BER-C92208`	In stock	£5.00	View product
Beretta 68 Series Ejector Spring - 12g	`BER-C90421`	In stock	£5.00	View product
Nickel Bead Front Sight - Round	`BER-C53659`	In stock	£10.00	View product
Pad Screw - 40mm	`BER-C95192`	In stock	£5.00	View product

Beretta 686 Silver Pigeon I Hunting MY24 12G exploded diagrams and parts

Trigger Group

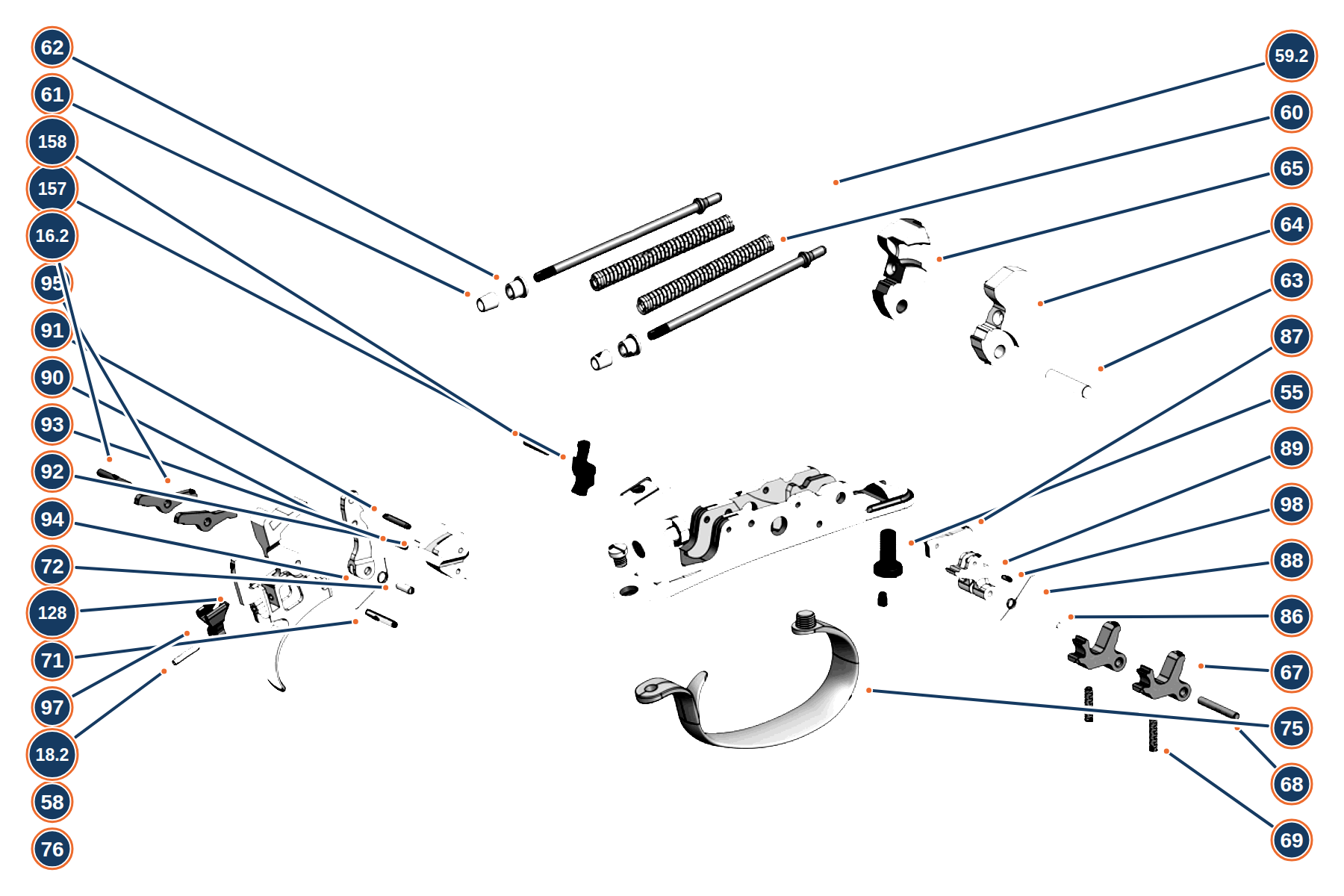

686 Silver Pigeon I Hunting MY24 12G Trigger Group exploded diagram.

Position	Beretta Code	Description	Product Link
60	`BER-C90182`	Hammer spring	`BER-C90182` Not Available
61	`BER-C52271`	Hammer spring nut	`BER-C52271` Not Available
62	`BER-C52270`	Hammer spring bushing	`BER-C52270` Not Available
55	`BER-C95260`	Trigger‑guard fixing screw	Warehouse Stock Beretta Trigger Plate Screw Silver
58	`BER-C5Q077`	Trigger guard	`BER-C5Q077` Not Available
63	`BER-C92184`	Hammer pin	Warehouse Stock Beretta Hammer Pin (BER-C92184)
64	`BER-C5G987`	Left hammer	Warehouse Stock Beretta 12G Bottom Hammer R/H
65	`BER-C5G988`	Right hammer	Warehouse Stock Beretta 12G Top Hammer L/H
67	`BER-C53195`	Over‑and‑under sear lever	Warehouse Stock Beretta Sear 680/690 Series
68	`BER-C92183`	Sear lever pin	Warehouse Stock Beretta Sear Pin
69	`BER-C90183`	Sear lever spring	Warehouse Stock Beretta 690 692 680 Sear Spring
71	`BER-C97087`	Elastic pin 2x14	Warehouse Stock Beretta 1301 Elastic Roll Pin 2x14
72	`BER-C92039`	Sling swivel pin	Warehouse Stock Beretta Front Trigger Blade Pin
75	`BER-C5J827`	Nickel forend iron	`BER-C5J827` Not Available
76	`BER-C95239`	Nickel forend screw	Warehouse Stock Beretta Trigger Guard Screw Small
86	`BER-C92182`	Selective single‑trigger mass lever pin	Warehouse Stock Beretta Inertia Reset Arm Pin
87	`BER-C54618`	Mass‑lever plunger	Warehouse Stock Beretta Inertia Reset Arm
88	`BER-C53760`	Selective single‑trigger mass lever spring	Warehouse Stock Beretta Inertia Block Reset Spring
89	`BER-C53123`	Selective single‑trigger mass lever	Warehouse Stock Beretta Inertia Reset Arm Body
90	`BER-C56723`	Single‑trigger mass support	Warehouse Stock Beretta Inertia Block Rest
91	`BER-C97037`	Elastic pin 2x12	Warehouse Stock Beretta Inertia Block Roll Pin (Large)
92	`BER-C53629`	Mass	Warehouse Stock Beretta Inertia Block
93	`BER-C97004`	Ejector stop elastic pin 2x6	Warehouse Stock Beretta Inertia Block Roll Pin (Small)
94	`BER-C54221`	Mass‑lever spring	Warehouse Stock Beretta Inertia Block Spring
95	`BER-C53023`	Selective single‑trigger connecting lever	Warehouse Stock Beretta Sear Arm
97	`BER-C54627`	Selector plunger	Warehouse Stock Beretta Selector Pawl
98	`BER-C97054`	Elastic pin 1.5x4	Warehouse Stock Beretta Inertia Reset Arm/Body Roll Pin
128	`BER-C5E129`	Selective single trigger	`BER-C5E129` Not Available
157	`BER-C5E378`	Safety lever	Warehouse Stock Beretta 690 694 Sv10 Safety Lever (BER-C5E378)
158	`BER-C5P255`	Pin 1/3 2x12	`BER-C5P255` Not Available
16.2	`BER-C92180`	Trigger–latch hook pin	Warehouse Stock Beretta Trigger Pin Forend Iron Catch Pin
18.2	`BER-C97060`	Elastic pin 2x10	Warehouse Stock Beretta Forend Iron Catch Pin Selector Pawl Pin
59.2	`BER-C88992`	Hammer guide‑spring assembly	Warehouse Stock Beretta Mainspring Complete

Forend

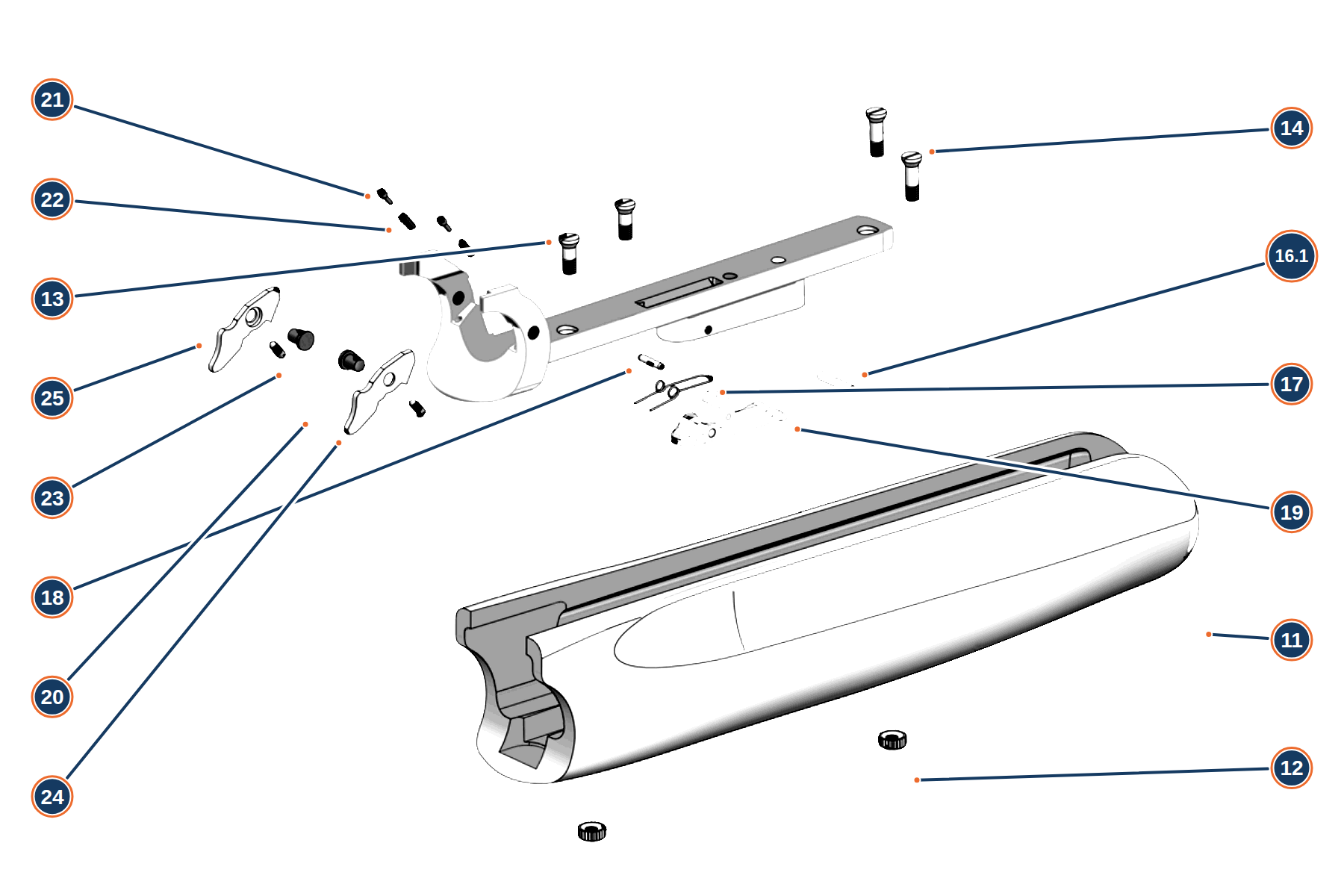

686 Silver Pigeon I Hunting MY24 12G Forend exploded diagram.

Position	Beretta Code	Description	Product Link
11	`BER-C5K219`, `BER-C5K220`	Forend	`BER-C5K219` Not Available `BER-C5K220` Not Available
12	`BER-C55285`	Nickel‑plated forend washer	Warehouse Stock Beretta Forend Washer Silver
13	`BER-C95248`	Nickel‑plated iron fixing screw	Warehouse Stock Beretta Front Forend Iron Screw Silver
14	`BER-C95249`	Rear nickel‑plated iron fixing screw	Warehouse Stock Beretta Rear Forend Iron Screw Silver
17	`BER-C54044`	Latch spring	Warehouse Stock Beretta Forend Iron Catch Spring
18	`BER-C97060`	Elastic pin 2x10	Warehouse Stock Beretta Forend Iron Catch Pin Selector Pawl Pin
19	`BER-C5J833`	Latch hook	`BER-C5J833` Not Available
20	`BER-C95106`	Latch lever pin screw	Warehouse Stock Beretta Ejector Trip Retaining Screw
21	`BER-C92185`	Latch lever pin	Warehouse Stock Beretta Ejector Trip Plunger
22	`BER-C90184`	Latch lever spring	Warehouse Stock Beretta Ejector Trip Spring (BER-C90184)
23	`BER-C55282`	Nickel‑plated latch lever pin	Warehouse Stock Beretta 12G Ejector Trip Pin Silver
24	`BER-C53036`	Right latch lever	Warehouse Stock Beretta Bottom L/H Ejector Trip
25	`BER-C53035`	Left latch lever	Warehouse Stock Beretta Top R/H Ejector Trip
16.1	`BER-C92180`	Trigger–latch hook pin	Warehouse Stock Beretta Trigger Pin Forend Iron Catch Pin

Receiver

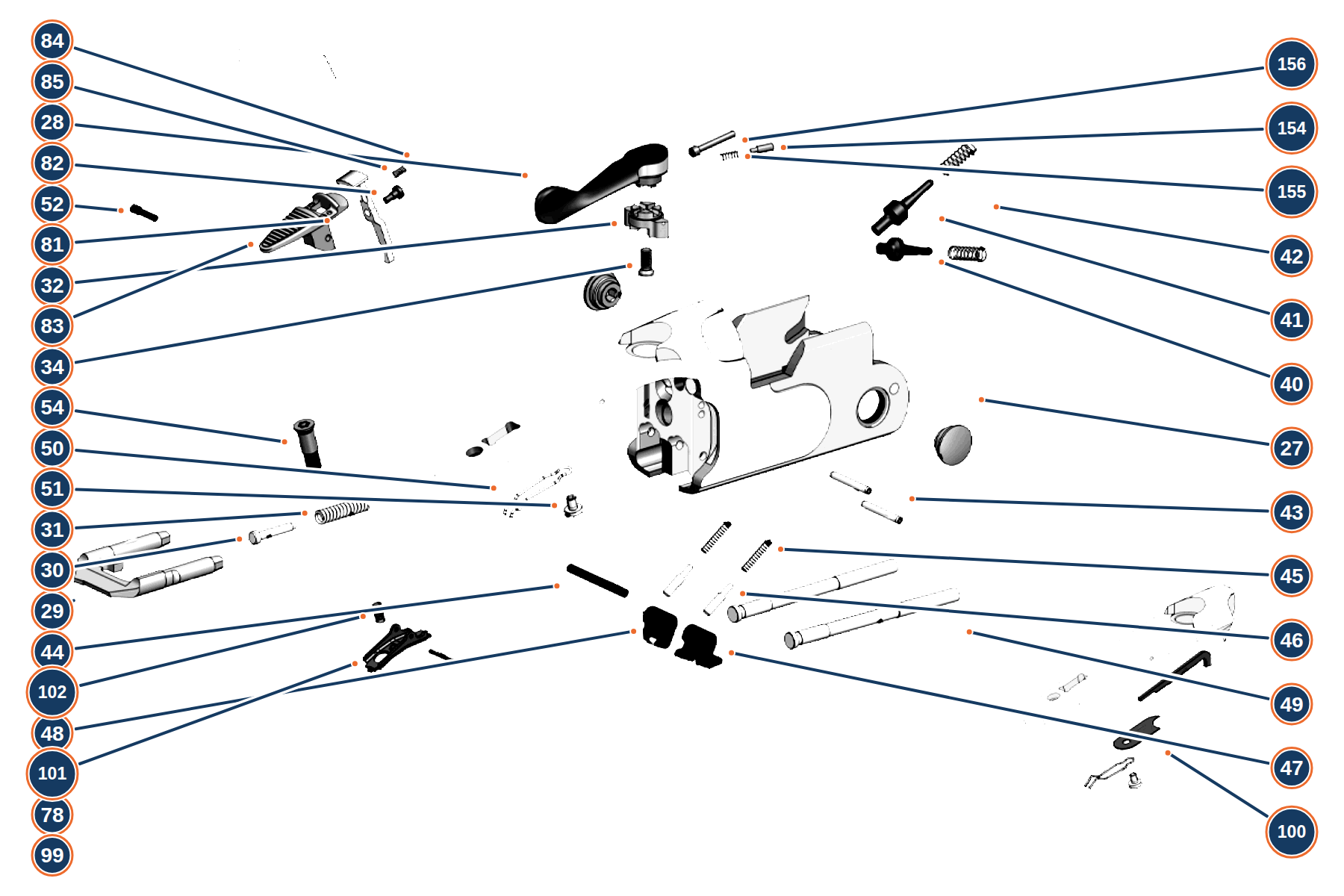

686 Silver Pigeon I Hunting MY24 12G Receiver exploded diagram.

Position	Beretta Code	Description	Product Link
27	`BER-C5J828`	Nickel‑plated hinge pin	`BER-C5J828` Not Available
28	`BER-C5J826`	Nickel key	`BER-C5J826` Not Available
29	`BER-C5Q074`	Locking bolt	`BER-C5Q074` Not Available
30	`BER-C92178`	Locking bolt plunger	Warehouse Stock Beretta 12G Top Lever Spring Plunger
31	`BER-C90180`	Locking bolt return spring	Warehouse Stock Beretta 12G Top Lever Spring
32	`BER-C5G833`	Key pin	Warehouse Stock Beretta 694 Top Lever Cam
34	`BER-C5F787`	Headless screw M4	Warehouse Stock Beretta DT11 Black Top Lever Screw
40	`BER-C54832`	Lower right firing pin	Warehouse Stock Beretta 12G Bottom Striker
41	`BER-C54833`	Upper left firing pin	Warehouse Stock Beretta 12G Top Striker
42	`BER-C90113`	Firing pin spring	Warehouse Stock Beretta Striker Return Spring
43	`BER-C97093`	Elastic pin 2.50x20	Warehouse Stock Beretta 1301 Elastic Pin
44	`BER-C92181`	Cocking lever pin	Warehouse Stock Beretta 12G Cocking Dog Retaining Pin
45	`BER-C90225`	Cocking lever spring	Warehouse Stock Beretta Cocking Dog Spring
46	`BER-C92177`	Cocking lever spring plunger	Warehouse Stock Beretta Cocking Dog Plunger
47	`BER-C52983`	Right cocking lever	Warehouse Stock Beretta 12G Cocking Dog R/H
48	`BER-C52982`	Left cocking lever	Warehouse Stock Beretta 12G Cocking Dog L/H
49	`BER-C50317`	Cocking rod	`BER-C50317` Not Available
50	`BER-C90364`	Safety spring	Warehouse Stock Beretta 690 Safety Spring
51	`BER-C95012`	Safety spring screw	Warehouse Stock Beretta Safety Spring Screw
52	`BER-C5D442`	Safety pin 2x10	Warehouse Stock Beretta 690 Series Safety Catch Pin
78	`BER-C9D431`	Trigger guard screw locking grub screw	`BER-C9D431` Not Available
81	`BER-C5F360`	Selector lever, nickel finish	`BER-C5F360` Not Available
82	`BER-C5D029`	Selector lever pin	Warehouse Stock Beretta Safety Selector Pivot Pin (BER-C5D029)
83	`BER-C5J005`	Selective single‑trigger safety	`BER-C5J005` Not Available
84	`BER-C97053`	Steel ball 2.50 mm	Warehouse Stock Beretta Safety Selector Ball
85	`BER-C90143`	Single‑trigger selector lever spring	Warehouse Stock Beretta Safety Selector Spring
99	`BER-C5D715`	Automatic safety rod	Warehouse Stock Beretta Auto Safe Rod
100	`BER-C56138`	Automatic safety washer	Warehouse Stock Beretta Auto Safe Plate
101	`BER-C57268`	Safety lever	Warehouse Stock Beretta 12G Safety Rocker
102	`BER-C90354`	Safety lever spring	Warehouse Stock Beretta 12G Safety Rocker Spring
154	`BER-C5Q075`	Locking key retaining stud	Warehouse Stock Beretta 694 688 Top Lever Trip Plunger New Style
155	`BER-C90097`	Selective single‑trigger inertia spring 425‑626	`BER-C90097` Not Available
156	`BER-C5Q076`	Locking key release stud	Warehouse Stock Beretta 694 688 Top Lever Locking Pin New Style
54	`BER-C5H216`	Trigger plate tie‑rod screw	Warehouse Stock Beretta 690 Top Tang Screw New Black

Barrel

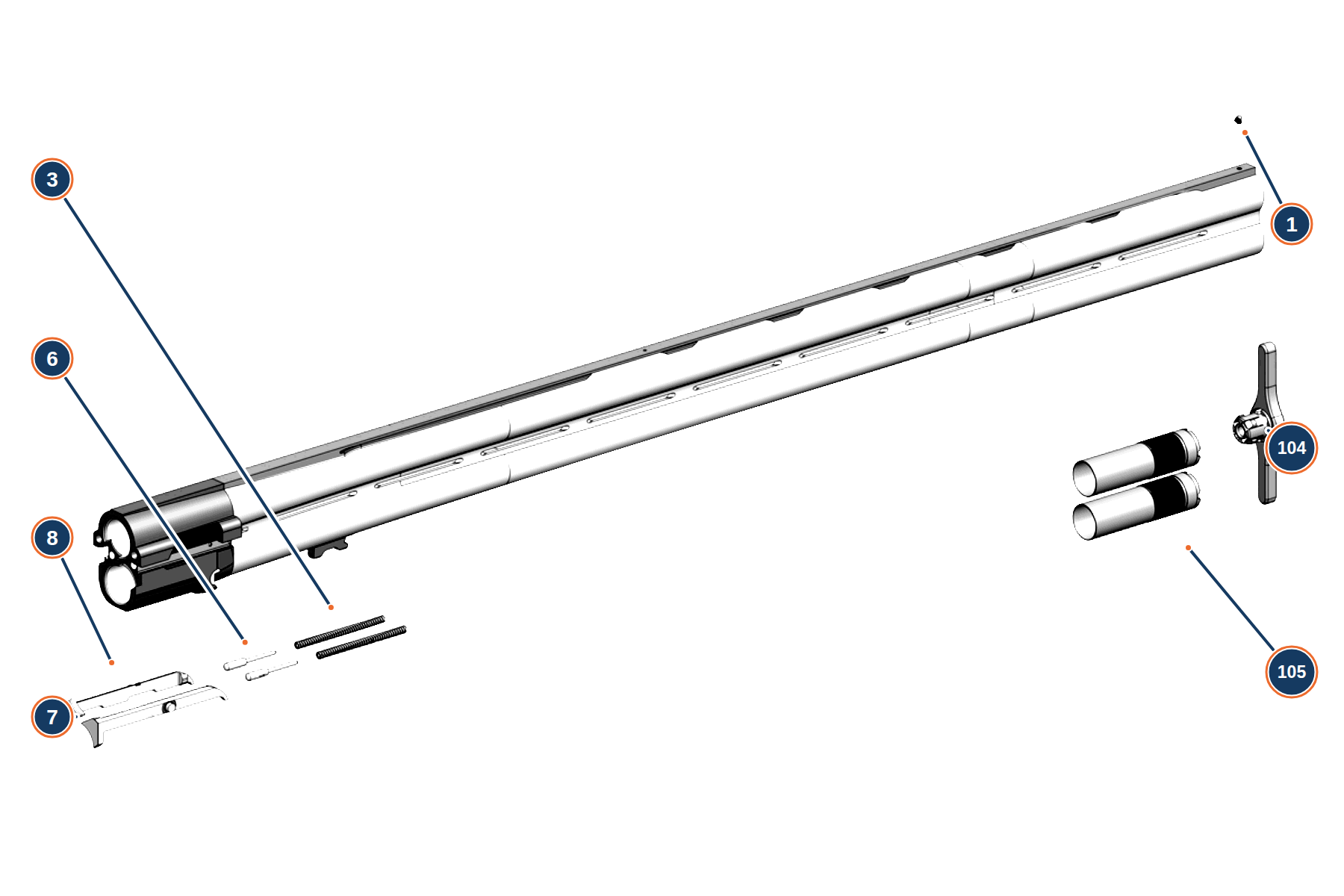

686 Silver Pigeon I Hunting MY24 12G Barrel exploded diagram.

Position	Beretta Code	Description	Product Link
1	`BER-C53659`	Alpacca front sight	In stock Nickel Bead Front Sight - Round
3	`BER-C90421`	Extractor spring	In stock Beretta 68 Series Ejector Spring - 12g
6	`BER-C92208`	Extractor plunger	In stock Beretta 68 Series Ejector Plunger - 12G
7	`BER-E52329`	Right extractor	Warehouse Stock Beretta 12G Bottom R/H Ejector
8	`BER-E52332`	Left extractor	Warehouse Stock Beretta 12G Top L/H Ejector
104	`BER-C71500`	Choke key	Not currently in stock Beretta Choke Key 12G
105	`BER-C62045`, `BER-C62046`, `BER-C62047`, `BER-C62048`, `BER-C62049`, `BER-C62070`, `BER-C62071`, `BER-C62072`, `BER-C62073`, `BER-C62074`, `BER-C6D931`	Chokes	Not currently in stock Beretta Choke - O/C.Hp Flush 12G. Xtra Full Warehouse Stock Beretta Choke - O/C.Hp Flush 12G. Light Full Not currently in stock Beretta Choke - O/C.Hp Flush 12G Light Mod Warehouse Stock Beretta Choke - O/C.Hp Flush 12G Skeet/Usa Warehouse Stock Beretta Choke - O/C.Hp Flush 12G Skeet Warehouse Stock Beretta Choke - O/C.Hp Flush 12G Full Warehouse Stock Beretta Choke - O/C.Hp Flush 12G 3/4 Warehouse Stock Beretta Choke - O/C.Hp Flush 12G 1/2 Warehouse Stock Beretta 12G OptimaChoke HP Flush 1/4 Choke Warehouse Stock Beretta Choke - O/C.Hp Flush 12G Cyl `BER-C6D931` Not Available

Stock

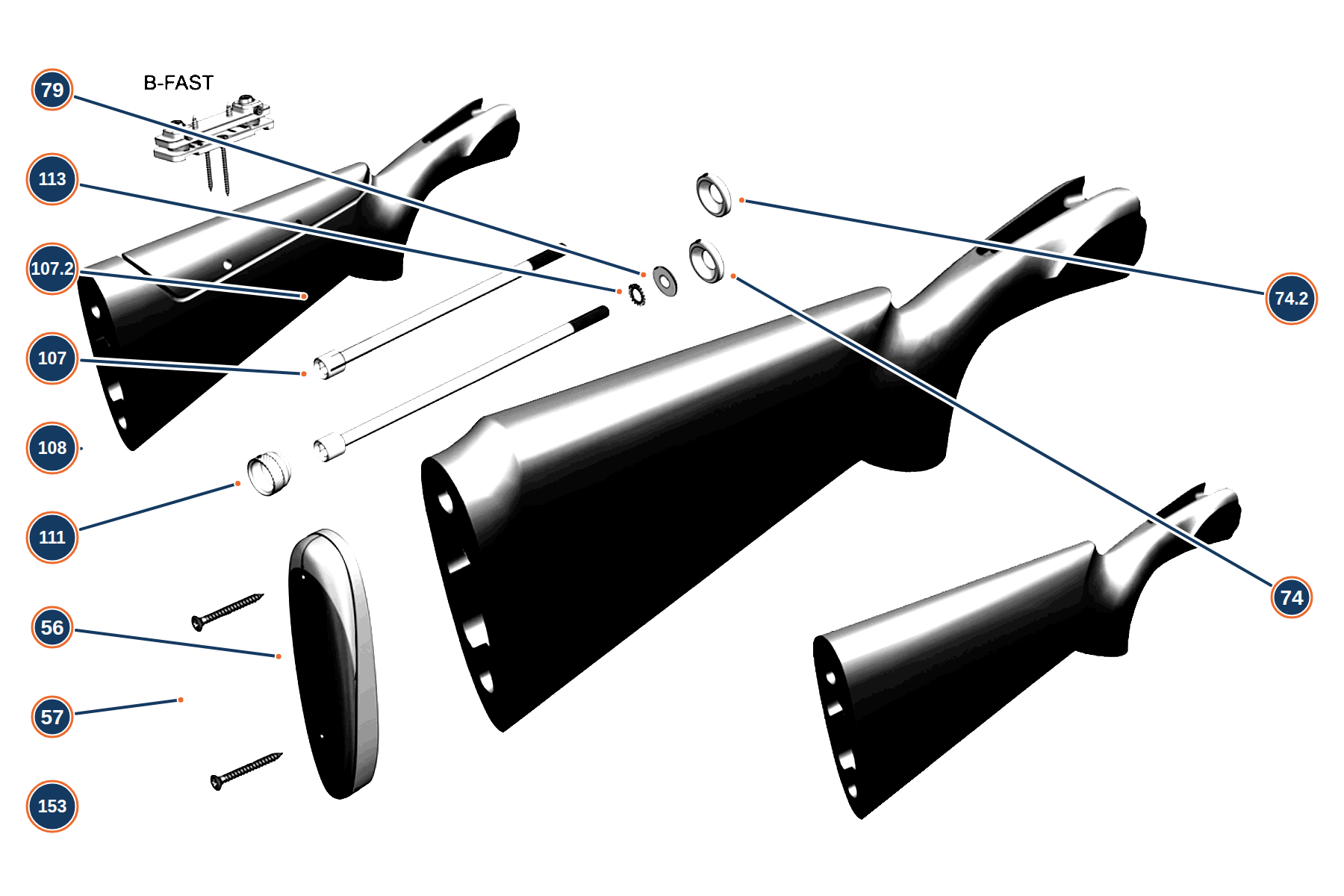

686 Silver Pigeon I Hunting MY24 12G Stock exploded diagram.

Position	Beretta Code	Description	Product Link
56	`BER-C7C097`	Recoil pad	Warehouse Stock Beretta Extralight Recoil Pad (Field/All Gauges) 10mm
57	`BER-C95192`	Recoil pad screw	In stock Pad Screw - 40mm
74	`BER-C56146`	Concave washer	Warehouse Stock Beretta Stock Bolt Washer
79	`BER-C56147`	Convex washer	Warehouse Stock Beretta Stock Bolt Washer Small (680'S Bin79)
107	`BER-C95205`	Stock draw bolt	Warehouse Stock Beretta 680 Stock Bolt
108	`BER-C8P015`, `BER-C8P016`, `BER-C8P027`, `BER-C8P028`, `BER-C8P029`, `BER-C8P030`, `BER-C8P033`, `BER-C8P032`	Stock	`BER-C8P015` Not Available `BER-C8P016` Not Available `BER-C8P027` Not Available `BER-C8P028` Not Available `BER-C8P029` Not Available `BER-C8P030` Not Available `BER-C8P033` Not Available `BER-C8P032` Not Available
113	`BER-C97079`	Elastic washer	Warehouse Stock Beretta Stock Bolt Spring Washer (680'S Bin 113)
153	`BER-C8A687`	B‑Fast adjuster	Warehouse Stock Beretta B-Fast Adjustable Comb Set
107.2	`BER-C95329`	Adjustable stock draw‑bolt screw	`BER-C95329` Not Available
111	`BER-C5S293`	Stock bolt retaining bushing	`BER-C5S293` Not Available
74.2	`BER-C58038`	Concave draw‑bolt washer	`BER-C58038` Not Available

Need help finding a part?

Send us the diagram section and position number.

Contact Blue Fieldsports
