Beretta 680 20G spare parts
Beretta 680 20G Parts Guide
Use the exploded diagram and exact position table to find the correct Beretta spare part.

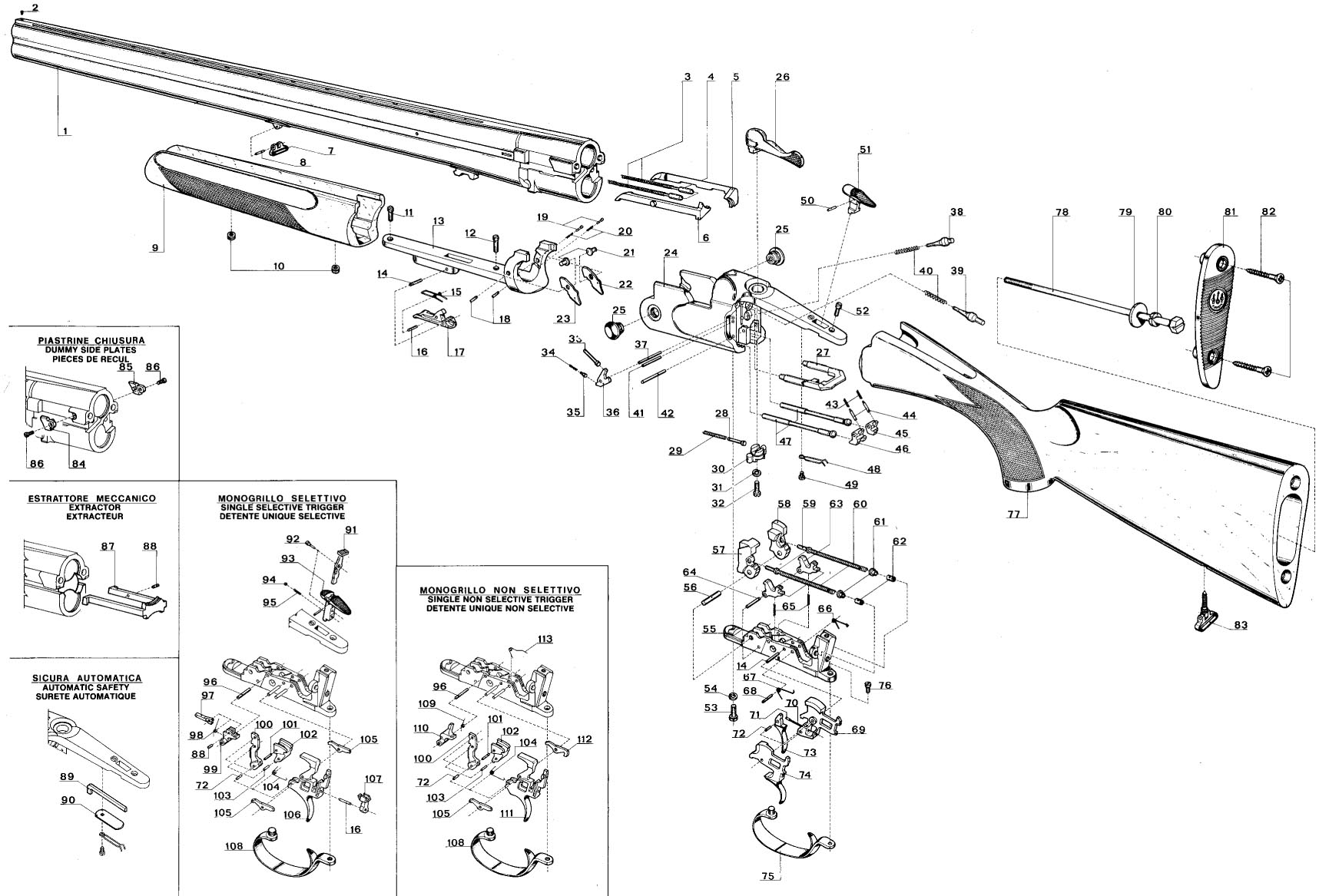

Beretta 680 20G exploded diagram
The complete exploded view is followed by its matching position and part-code table.
Beretta 680 20G parts
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 2 | BER-C55674 | ||
| 3 | BER-C90327 | ||
| 4 | BER-C59308 | ||
| 5 | BER-E59309 | Not Available | EJECTOR RIGHT RH DX SEMIFINISHED - MILLED 687 687 687EL 687EELL SILVER PIGEON GA 20 |
| 6 | BER-E59310 | Not Available | EJECTOR |
| 7 | BER-C50025 | Not Available | SWIVEL S55 |
| 8 | BER-C97049 | Not Available | ELASTIC PIN 2,5X10 UNI |
| 10 | BER-C56160 | Not Available | FOREND WASHER 12/20 GA S682 |
| 11 | BER-C95230 | Not Available | FOREND IRON SCREW 12 GA S682 |
| 12 | BER-C95231 | Not Available | REAR FOREND IRON SCREW 12 GA S682 |
| 14 | BER-C92180 | ||
| 15 | BER-C54044 | ||
| 16 | BER-C97060 | ||
| 17 | BER-C52624 | Not Available | FOREND IRON CATCH - 686 SILVER PIGEON GA 12 AND 20 |
| 18 | BER-C95106 | ||
| 19 | BER-C92185 | ||
| 20 | BER-C90184 | ||
| 21 | BER-C55214 | Not Available | PIN |
| 22 | BER-C53036 | ||
| 23 | BER-C53035 | ||
| 25 | BER-C55004BER-C60135BER-C60136 | Not Available Not Available Not Available | HINGE PIN HINGE PIN OVERSIZED +0.15 FOR OVER&UNDERS SERIE 680 INCLUDING 686, 687, 687EL 687EELL, ONYX, SILVER PIGEON GA 20 HINGE PIN OVERSIZED +0.30 FOR OVER&UNDERS SERIE 680 INCLUDING 686, 687, 687EL 687EELL, ONYX, SILVER PIGEON GA 20 |
| 26 | BER-C51601 | Not Available | TOP LEVER BLUED GLOSSY GA 20 686 |
| 27 | BER-C51622BER-C60127BER-C60128 | ||
| 28 | BER-C92194 | ||
| 29 | BER-C90201 | ||
| 30 | BER-C5B215 | ||
| 31 | BER-C95370 | ||
| 32 | BER-C95369 | ||
| 33 | BER-C54882 | ||
| 34 | BER-C90094 | ||
| 35 | BER-C92098 | ||
| 36 | BER-C53013 | ||
| 37 | BER-C92193 | ||
| 38 | BER-C54835 | ||
| 39 | BER-C54836 | ||
| 40 | BER-C90113 | ||
| 41 | BER-C97085 | Not Available | ELASTIC PIN 2,50X18 UNI |
| 42 | BER-C92192 | Not Available | COCKING LEVER PIN 690 695 |
| 43 | BER-C90225 | ||
| 44 | BER-C92177 | ||
| 45 | BER-C52988 | ||
| 46 | BER-C52987 | Not Available | COCKING LEVER 20 GA 690 695 |
| 47 | BER-C50103 | ||
| 48 | BER-C90014 | ||
| 49 | BER-C95012 | ||
| 50 | BER-C92020 | ||
| 51 | BER-C56334 | Not Available | SAFETY ENGRAVED S686 GA 20 |
| 52 | BER-C95014 | Not Available | STOCK BOLT PLATE SCREW 12/20 GA S682 |
| 54 | BER-C97096 | Not Available | WASHER ELASTIC 5,30 |
| 56 | BER-C92184 | ||
| 57 | BER-C51310 | ||
| 59 | BER-C88992 | ||
| 61 | BER-C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 62 | BER-C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 63 | BER-C53195 | ||
| 64 | BER-C92183 | ||
| 65 | BER-C90183 | ||
| 66 | BER-C53933 | ||
| 67 | BER-C54071 | ||
| 68 | BER-C97087 | ||
| 69 | BER-C51829 | Not Available | TRIGGER |
| 70 | BER-C90188 | Not Available | TRIGGER SPRING RIGHT RH DX FOR SERIE SILVER PIGEON - 686 - 687 - ULTRALIGHT GA 12 - 20 - 28 - 410 |
| 71 | BER-C92210 | Not Available | TRIGGER SPRING PIN RH RIGHT HAND SILVER PIGEON |
| 72 | BER-C92039 | ||
| 73 | BER-C52639 | Not Available | PLATED TRIGGER RH RIGHT HAND SILVER PIGEON |
| 74 | BER-C57859 | Not Available | TRIGGER GOLD LEFT FOR OVER&UNDER GA 12 20 28 410 |
| 75 | BER-C77172 | Not Available | TRIGGER PLATE BLUED GLOSSY SERIE 686 682 |
| 76 | BER-C95107 | Not Available | TRIGGER GUARD SCREW 690 |
| 78 | BER-C95015 | Not Available | STOCK SCREW S55 S56 S57 625 686 687 |
| 80 | BER-C97001 | Not Available | ELASTIC WASHER 682 |
| 81 | BER-C51223BER-C51229 | Not Available Not Available | RECOIL PAD FIELD PLASTIC 20GA BOMBED S55 RECOIL PAD RUBBER RED 20MM GA 12 AND GA 20 VENTILATED |
| 82 | BER-C95002 | Not Available | RECOIL PAD SCREW STANDARD - LENGTH 30MM DIAMETER 4MM |
| 83 | BER-C62020 | ||
| 88 | BER-C97054 | ||
| 89 | BER-C50074BER-C5D715 | Not Available | AUTOMATIC SAFETY ROD SV10 690 |
| 90 | BER-C56138 | ||
| 91 | BER-C53218 | Not Available | SELECTOR LEVER |
| 92 | BER-C55217 | ||
| 93 | BER-C56327 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER BLUED S685 GA 20 |
| 94 | BER-C97053 | ||
| 95 | BER-C90143 | ||
| 96 | BER-C92182 | ||
| 97 | BER-C54618 | ||
| 98 | BER-C53760 | ||
| 99 | BER-C53123 | ||
| 100 | BER-C56723 | ||
| 101 | BER-C97037 | ||
| 102 | BER-C53629 | ||
| 103 | BER-C97004 | ||
| 104 | BER-C54221 | ||
| 105 | BER-C53023 | ||
| 106 | BER-C52683 | ||
| 107 | BER-C54627 |
