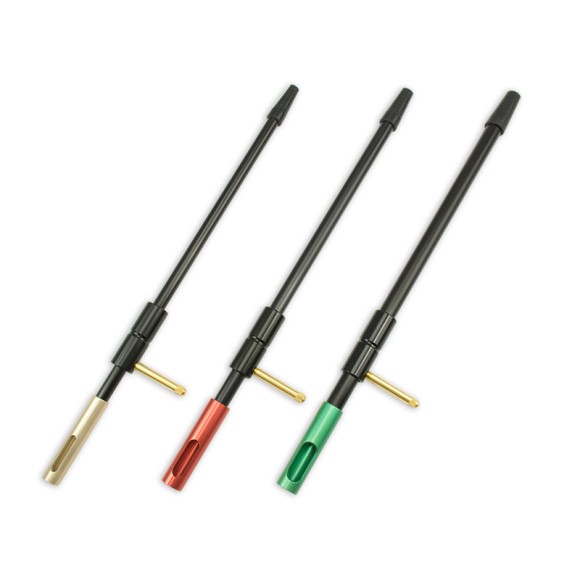

Bore Tech’s CENTERFIRE, BOLT ACTION BORE GUIDES precisely align cleaning rods with the bore & prevent damage to your firearm & cleaning rod. The solvent resistant, moulded rubber nosecones provide a superior seal and prevent cleaners from leaking into the chamber and action. Featuring high quality, CNC machined components the colour-coded guides fit most bolt action rifles from .17 to .416 calibres.
Please note bolt diameter and rod length requirements in the Specification Tab to ensure proper fitment.
Bore Tech’s CENTERFIRE, BOLT ACTION BORE GUIDES precisely align cleaning rods with the rifle bore and prevent damage to both the firearm and cleaning rod making it a necessary tool for proper cleaning and protection of your rifles.
Colour-coded for easy calibre identification Bore Tech’s Bore Guides fit the most popular centerfire, Remington 700 style, bolt action rifles ranging from .17 to .416 calibres.
| Guide Color | Calibre Range |
| Gold | .17 - .25 Cal |
| Red | .25 - .308 Cal |
| Green | 8mm - .416 Cal |
Bore Tech’s Bore Guides feature high precision CNC machined and anodized components providing a lifetime of use. The colour-coded solvent ports feature widened openings for easy solvent application and tapered rear access for easy jag/brush alignment.
Additionally, the replaceable and solvent resistant moulded rubber nosecones are soft enough to provide a superior, long-lasting seal and completely prevent cleaners from leaking into the chamber and action areas.
Designed to fit both short and long actions, these guides feature an adjustable bolt collar that firmly locks in place via the threaded brass locking handle.
While these are a great fit to work as a Remington 700 bore guide, if you don’t see a Bore Guide that will fit your specific rifle, please contact Customer Service to inquire about our custom order Bore Guides.
Don’t settle for the cheap plastic imitations. Choose the best… Choose the Bore Tech Bore Guide.
CENTERFIRE, BOLT ACTION BORE GUIDE
Centerfire Bore Guide Length: 13.5 Inches
Bore Guide Color/Caliber Identification Chart
| Guide Color | Calibre Range |
| Gold | .17 - .25 Cal |
| Red | .25 - .308 Cal |
| Green | 8mm - .416 Cal |
Bolt Diameter Requirements:
The included bolt collar will fit the most popular centerfire actions with a 0.695”-0.700” bolt diameter. Most Remington, Winchester, Ruger, Browning, and Savage rifles have 0.695”-0.700” bolt diameters.
For actions with smaller or larger bolt diameters such as Weatherby, Sako, Kimber, CZ, etc., please have bolt diameter to nearest 0.001” and view our BG/PG Custom Collar Page or contact Customer Service. This will ensure the correct bolt collar for your application is received.
Rod Length Requirements:
Bore Tech Centerfire Bore Guides will add approximately 13.5 inches to the length of the barrel When Cleaning. Make Sure Your Cleaning Rod Is Long Enough To Accommodate.
Please see our convenient and easy to use Rod Length Guide by clicking the below or going to the Knowledge Center
How To Determine The Correct Rod Length For Your Application
Bore Guide Use Instructions For Centerfire, Bolt Action Bore Guides:
- Remove bolt as per manufacturer’s instructions.
- Loosen the brass bolt collar handle and slide the rubber nosecone (front end) of the Bore Guide through the receiver until seated in the chamber.
*Lightly push on the Bore Guide to seat rubber nosecone in chamber. - Slide the bolt collar forward until the brass handle is aligned with the bolt handle recess. Rotate the brass handle downward into the bolt handle recess and tighten against the Bore Guide tube. At this point, the guide should not move forward or backwards.
NOTE: On rifles without a bolt handle recess, it may be necessary to remove the brass locking handle and slide the bolt collar forward until the threaded locking handle hole is visible in the ejection port. Reinsert the brass locking handle and tighten it against the Bore Guide tube to properly lock Bore Guide into action. - Position a dry patch of the proper size on a jag and insert the rod/jag into the rear opening of the bore guide until visible in the solvent port.
- Apply cleaner or oil to the patch and push through the bore.
- The solvent port may also be used to apply cleaner to brushes.
- To remove the Bore Guide from the action, loosen and rotate the brass handle up and out of the bolt handle recess. Then pull Bore Guide and bolt collar back away from the chamber and out of the action.
