Beretta SV10 Prevail 3 Sporting 12G Parts Guide
2 exploded diagrams, exact Beretta codes and linked spare parts for Beretta SV10 Prevail 3 Sporting 12G.

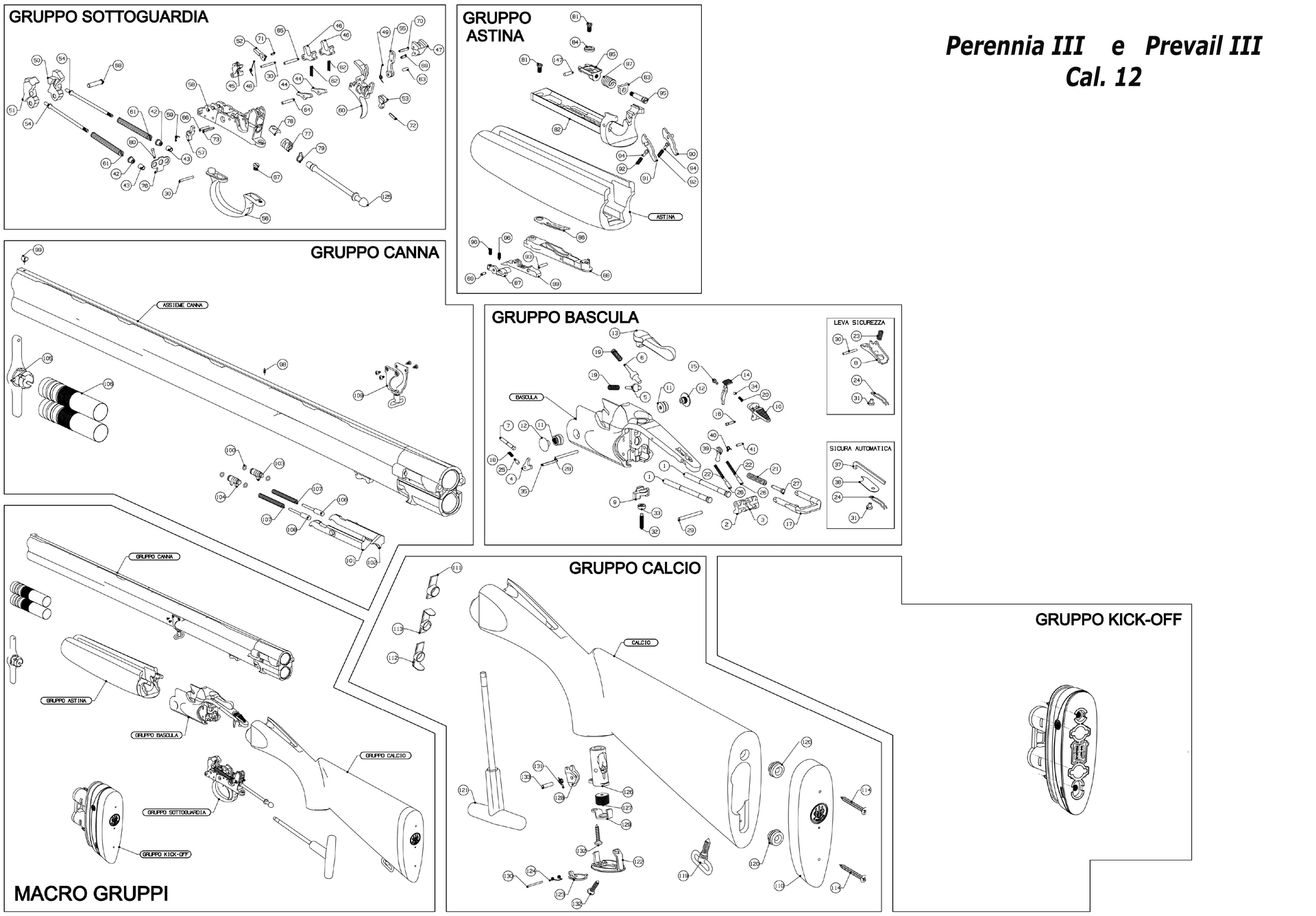

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 10 | C5C290 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER NICKEL FINISH - SV10 GA 12 |
| 100 | |||
| 101 | C5E321 | Not Available | EJECTOR LEFT |
| 102 | C5E320 | Not Available | EJECTOR RIGHT |
| 103 | E00703 | Not Available | EJECTOR KIT SV10 GA 12 |
| 104 | C5E323 | Not Available | EJECTOR STOP LEFT LH SX - SV10 PERENNIA GA 12 |
| 107 | |||
| 108 | |||
| 11 | C5D536C5D537 | Not Available Not Available | HINGE PIN DIAMETER 11.3 +0.45 SV10 PERENNIA - SV10 PREVAIL - 690 - 695 HINGE PIN DIAMETER 11.4 SV10 PREVAIL - SV10 PERENNIA - 690 - 692 -691 - 693 - 695 |
| 110 | C55649 | Not Available | RECOIL PAD RUBBER |
| 111 | |||
| 112 | C5E038 | Not Available | DROP REDUCER SPACER FOR SV10 690 |
| 113 | |||
| 114 | |||
| 12 | C5D723 | Not Available | HINGE PIN SCREW - SV10 PREVAIL III GA 12 |
| 122 | C5C884 | Not Available | STOCK CAP |
| 123 | C5D751 | Not Available | STOCK HEAD DOOR - SV10 PREVAIL 3 GA 12 |
| 124 | C5C886 | Not Available | STOCK CAP SPRING |
| 125 | C5C985 | Not Available | STOCK SCREW - SV10 PERENNIA III / SV10 PREVAIL III - GA 12 / 20 |
| 126 | C5C986 | Not Available | NUT |
| 127 | C5C987 | Not Available | STOCK SCREW |
| 128 | C5C988 | Not Available | STOCK CLAMP |
| 129 | C5D000 | Not Available | STOCK SCREW |
| 13 | C5D744 | Not Available | TOP LEVER SV10 |
| 130 | C92371 | Not Available | PIN |
| 131 | C95385 | Not Available | SPRING |
| 132 | C95413 | Not Available | SCREW QUICK STOCK - SV10 PERENNIA / SV10 PREVAIL GA 12 / 20 |
| 133 | C97228 | Not Available | PIN FOR STOCK ATT |
| 14 | C5D005 | Not Available | SELECTOR LEVER |
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 2 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 3 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 39 | C5D268 | Not Available | SCREW |
| 4 | |||
| 40 | C5D269 | Not Available | TRIGGER GUARD SPRING |
| 41 | C92395 | Not Available | TRIGGER GUARD PIN |
| 42 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 43 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 5 | |||
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | |||
| 54 | C55955 | Not Available | HAMMER SPRING GUIDE 20 GA 690 695 |
| 55 | |||
| 56 | C5D748 | Not Available | TRIGGER GUARD NICHEL FINISH - SV10 PREVAIL III GA 12 |
| 57 | |||
| 58 | C5D747 | Not Available | TRIGGER PLATE NICKEL FINISH - SV10 PREVAIL III GA 12 |
| 59 | |||
| 6 | |||
| 60 | C5D567 | Not Available | TITANIUM TRIGGER HEIGHT 10.20 SV10 PERENNIA GA 12 SV10 PREVAIL GA 12 SINGLE SELECTIVE TRIGGER |
| 61 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 |
| 62 | |||
| 63 | |||
| 64 | |||
| 65 | |||
| 66 | |||
| 67 | |||
| 68 | |||
| 69 | |||
| 7 | |||
| 70 | |||
| 71 | |||
| 72 | |||
| 73 | |||
| 76 | C5C878 | Not Available | RECOILD SPRING PLATE |
| 77 | C5D188 | Not Available | BUSH |
| 78 | C5D270 | Not Available | SPACER - THICKNESS 2.45 |
| 79 | C5D271 | Not Available | PLATE |
| 8 | |||
| 80 | C92357 | Not Available | PIN |
| 81 | |||
| 83 | C5C871 | Not Available | STOP SLIDE CROSS - 690 695 GA 12 |
| 84 | |||
| 85 | C5E429 | Not Available | CARRIAGE FORE-END IRON 690 695 |
| 86 | |||
| 88 | C5D745 | Not Available | FORE END IRON CATCH BOX |
| 89 | C5D746 | Not Available | FOREND IRON SUPPORT NICHEL FINISH - SV10 PREVAIL 3 GA 12 |
| 9 | |||
| 90 | C72367 | Not Available | FOREND LEVER ASSY RIGHT RH DX - 12 GA SV10 690 695 |
| 92 | |||
| 93 | C92218 | Not Available | TRIGGER PIN SERIE SV10 PERENNIA PREVAIL 690 691 693 692 695 |
| 94 | |||
| 95 | C5E137 | Not Available | FOREND IRON CART PIN - SV10 690 695 GA 12 AND GA 20 |
| 96 | |||
| 97 | C90384 | Not Available | SPRING FORE-END ASSY IRON SERIE SV10 690 692 695 |
| 98 | |||
| 99 |

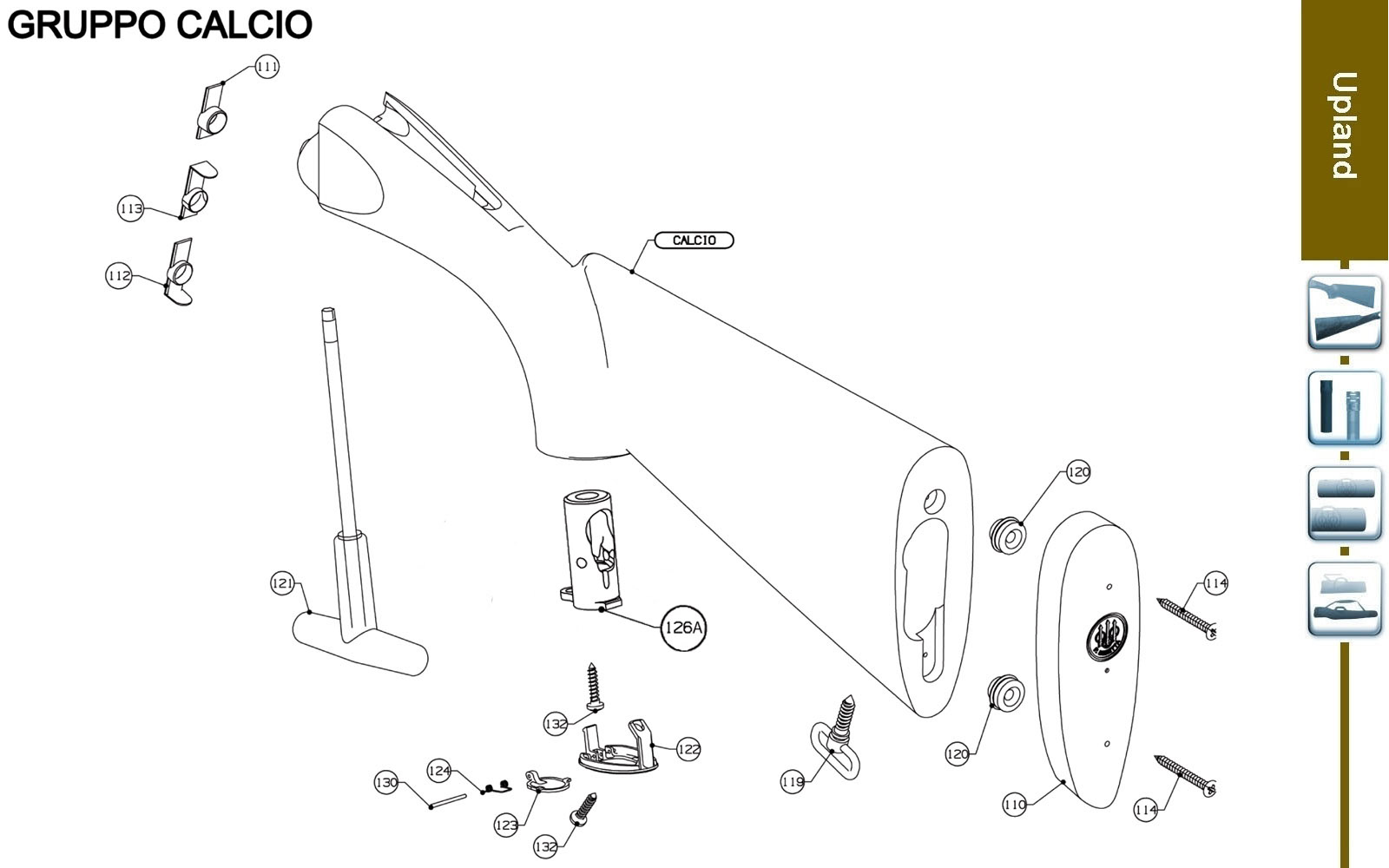

Kick-Off stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 110 | C55649 | Not Available | RECOIL PAD RUBBER |
| 111 | |||
| 112 | C5E038 | Not Available | DROP REDUCER SPACER FOR SV10 690 |
| 113 | |||
| 114 | |||
| 122 | C5C884 | Not Available | STOCK CAP |
| 123 | C5D751 | Not Available | STOCK HEAD DOOR - SV10 PREVAIL 3 GA 12 |
| 124 | C5C886 | Not Available | STOCK CAP SPRING |
| 126A | C89730 | Not Available | QSTOCK ASSY - SV10 PREVAIL GA 12 |
| 130 | C92371 | Not Available | PIN |
| 132 | C95413 | Not Available | SCREW QUICK STOCK - SV10 PERENNIA / SV10 PREVAIL GA 12 / 20 |
