Beretta SV10 Perennia 1 12G Parts Guide
6 exploded diagrams, exact Beretta codes and linked spare parts for Beretta SV10 Perennia 1 12G.
Action / frame
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 10 | C5E253 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER SST NISTAN FINISH - SV10 / SERIE 690 GA 12 |
| 11 | C5D536C5D537 | Not Available Not Available | HINGE PIN DIAMETER 11.3 +0.45 SV10 PERENNIA - SV10 PREVAIL - 690 - 695 HINGE PIN DIAMETER 11.4 SV10 PREVAIL - SV10 PERENNIA - 690 - 692 -691 - 693 - 695 |
| 12 | C5E152 | Not Available | HINGE PIN SCREW NISTAN FINISH - SV10 GA 12 AND GA 20 |
| 13 | C5E154 | Not Available | TOP LEVER NISTAN FINISH - SV10 PREVAIL 1 GA 12 |
| 14 | C5E254 | Not Available | SELECTOR LEVER NISTAN FINISH - SV10 / 690 GA 12 |
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 2 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 3 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 36 | C5E518 | Not Available | SCREW SV10 690 |
| 37 | C50074 | Not Available | AUTOMATIC SAFETY ROD SV10 690 |
| 38 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 |

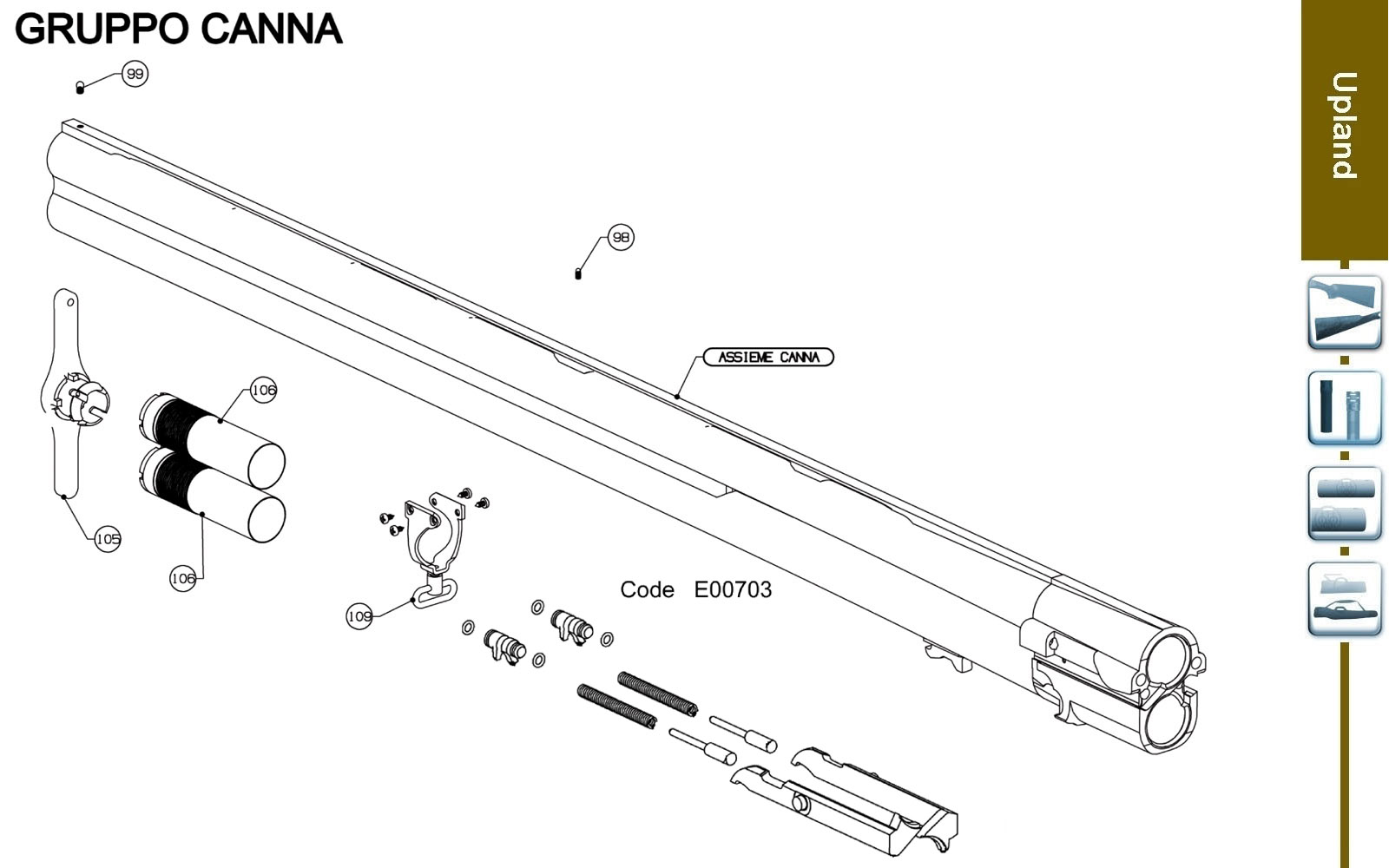

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 105 | |||
| 106 | C62070C62071C62072C62073C62074 | Not Available Not Available Not Available Not Available Not Available | OCHP12 FLUSH - F OCHP12 FLUSH - IM OCHP12 FLUSH - M OCHP12 FLUSH - IC OCHP12 FLUSH - C |
| 109 | C62040 | Not Available | SWIVEL SET FOR BARREL OVER AND UNDER GA 12 690 |
| 99 |

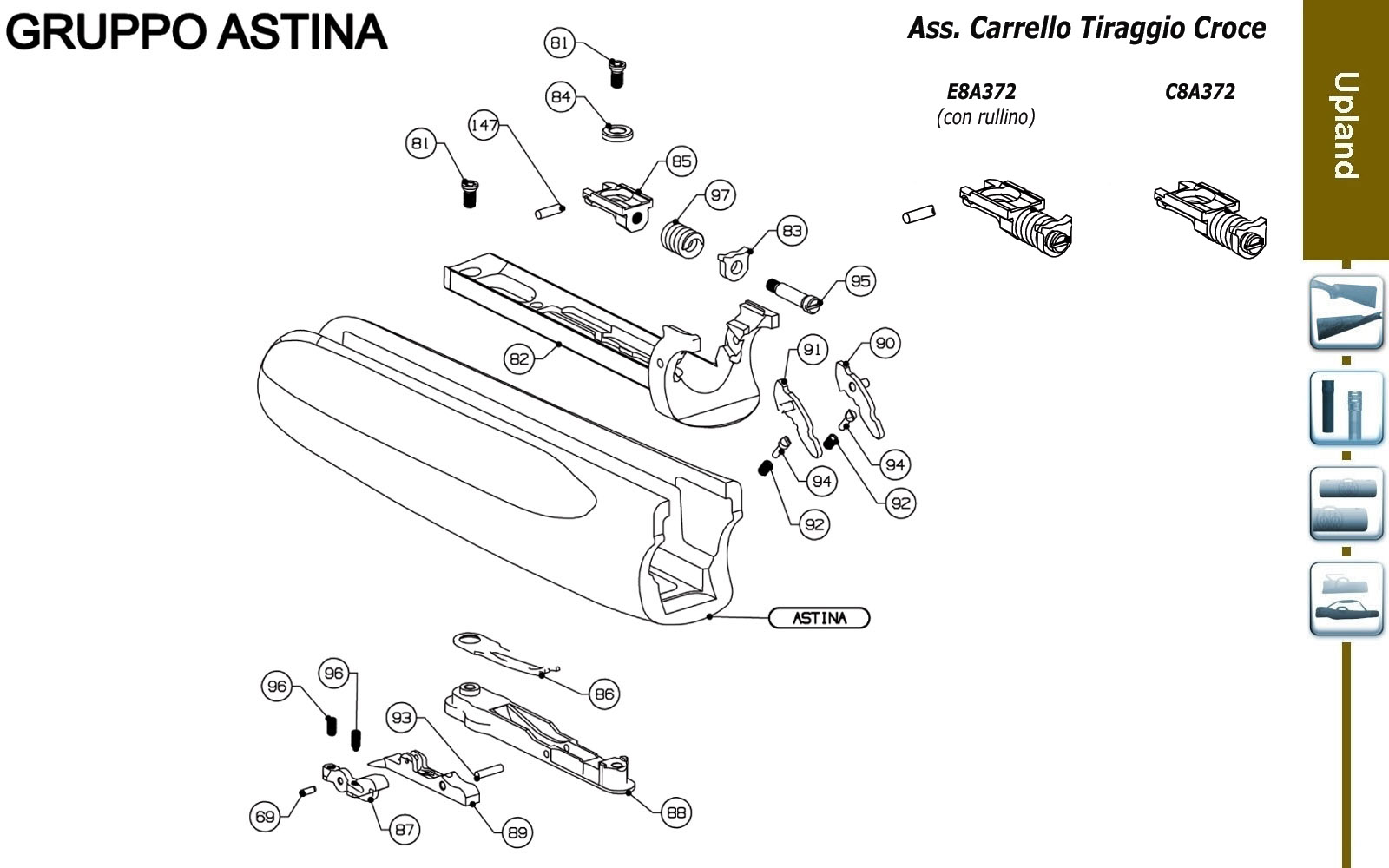

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 147 | C97260 | Not Available | ROLL 690 695 |
| 69 | |||
| 81 | |||
| 83 | C5C871 | Not Available | STOP SLIDE CROSS - 690 695 GA 12 |
| 84 | |||
| 85 | C5E429 | Not Available | CARRIAGE FORE-END IRON 690 695 |
| 86 | |||
| 88 | C5E156 | Not Available | BOX |
| 89 | C5E157 | Not Available | FOREND IRON CATCH LEVER SUPPORT NISTAN FINISH - SV10 PREVAIL I GA 12 AND GA 20 |
| 90 | C72367 | Not Available | FOREND LEVER ASSY RIGHT RH DX - 12 GA SV10 690 695 |
| 92 | |||
| 93 | C92218 | Not Available | TRIGGER PIN SERIE SV10 PERENNIA PREVAIL 690 691 693 692 695 |
| 94 | |||
| 95 | C5E137 | Not Available | FOREND IRON CART PIN - SV10 690 695 GA 12 AND GA 20 |
| 96 | |||
| 97 | C90384 | Not Available | SPRING FORE-END ASSY IRON SERIE SV10 690 692 695 |
| C8A372 | C8A372 | Not Available | FOREND IRON SLIDE ASSY SERIE SV10 690 692 691 683 |
| E8A372 | E8A372 | Not Available | FOREND IRON SLIDE ASSY SERIE SV10 690 692 691 683 |
Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 110 | C53661C53721C55129 | Not Available Not Available Not Available | RECOIL PAD FIELD RUBBER BLACK FULL THIN 12MM GA 12 AND GA 20 RECOIL PAD FIELD RUBBER BLACK FULL MEDIUM 18MM 12GA AND 20GA RECOIL PAD FIELD RUBBER BLACK FULL THICK 26MM 12GA AND 20GA |
| 111 | |||
| 112 | C5E038 | Not Available | DROP REDUCER SPACER FOR SV10 690 |
| 113 | |||
| 114 | |||
| 115 | |||
| 116 | |||
| 117 | |||
| 118 | |||
| 119 |
Kick-Off stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 110 | C53661C53721C55129 | Not Available Not Available Not Available | RECOIL PAD FIELD RUBBER BLACK FULL THIN 12MM GA 12 AND GA 20 RECOIL PAD FIELD RUBBER BLACK FULL MEDIUM 18MM 12GA AND 20GA RECOIL PAD FIELD RUBBER BLACK FULL THICK 26MM 12GA AND 20GA |
| 111 | |||
| 112 | C5E038 | Not Available | DROP REDUCER SPACER FOR SV10 690 |
| 113 | |||
| 114 | |||
| 115 | |||
| 116 | |||
| 117 | |||
| 118 | |||
| 119 |
Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 150 | C5E517 | Not Available | NUT |
| 30 | |||
| 42 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 43 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | |||
| 54 | C55955 | Not Available | HAMMER SPRING GUIDE 20 GA 690 695 |
| 55 | |||
| 56 | C5E153 | Not Available | TRIGGER GUARD NISTAN FINISH - SV10 PREVAIL I GA 12 / 20 |
| 57 | |||
| 58 | C5E519 | Not Available | TRIGGER GUARD NISTAN FINISH - SV10 PERENNIA I CAL 12 / SV10 PREVAIL SPORTING I CAL 12 |
| 59 | |||
| 60 | C5E129 | Not Available | TRIGGER SINGLE SELECTIVE TRIGGER SST 690 |
| 61 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 |
| 62 | |||
| 63 | |||
| 64 | |||
| 65 | |||
| 66 | |||
| 67 | |||
| 68 | |||
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | |||
| 73 | |||
| 76 | C5C878 | Not Available | RECOILD SPRING PLATE |
| 80 | C92357 | Not Available | PIN |
