Beretta DT11 Sporting Black Edition 12G / 20G Parts Guide
6 exploded diagrams, exact Beretta codes and linked spare parts for Beretta DT11 Sporting Black Edition 12G / 20G.

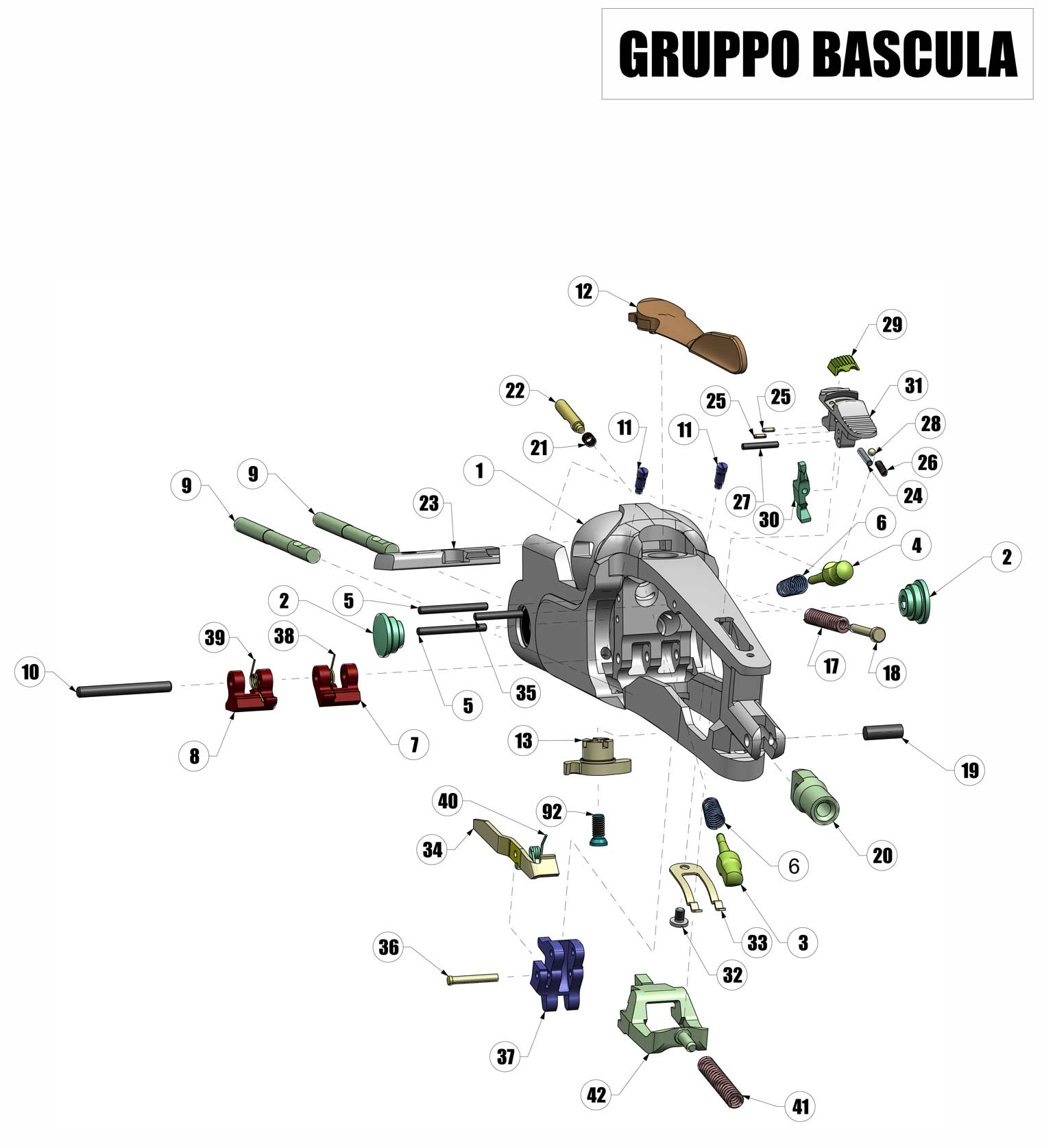

Action / frame
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 29 | C5G377 | Not Available | SAFETY SELECTOR PALM - DT11 BLACK GA 12 |
| 31 | C5G376 | Not Available | SICURA M.S DT11 BLACK - |
| 10 | |||
| 11 | |||
| 12 | C5G375 | Not Available | TOP LEVER DT11 BLACK GA 12 |
| 13 | C5G225 | Not Available | TOP LEVER PIN DT11 |
| 17 | |||
| 18 | C92149 | Not Available | TOP LEVER SPRING PIN S02 ASE 90 ASE GOLD DT10 TRIDENT DT11 |
| 19 | C92253 | Not Available | BLOCK SCREW PIN - DT11 GA 12 |
| 2 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | C5J960C5J961C5J962C5J963 | Not Available Not Available Not Available Not Available | LOCKING BLOCK (A) 8 DEGREES X = 4.2 DT11 - DT10 LOCKING BLOCK (B) 8 DEGREES X = 4.3 DT11 - DT10 LOCKING BLOCK (C) 8 DEGREES X = 4.4 DT11 - DT10 LOCKING BLOCK (D) 8 DEGREES X = 4.5 DT11 - DT10 |
| 24 | C92252 | Not Available | PIN |
| 25 | C97102 | Not Available | PIN ELASTIC 1,50 X 4 UNI |
| 26 | |||
| 27 | |||
| 28 | |||
| 3 | |||
| 30 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | C92250 | Not Available | PIN |
| 36 | C92251 | Not Available | PIN |
| 37 | C59237 | Not Available | FIRING PIN CATCH LEVER DT11 |
| 38 | |||
| 39 | |||
| 4 | |||
| 40 | C59233 | Not Available | SPRING |
| 41 | |||
| 42 | C55083 | Not Available | TRIGGER PLATE BOLT DT11 |
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 92 |

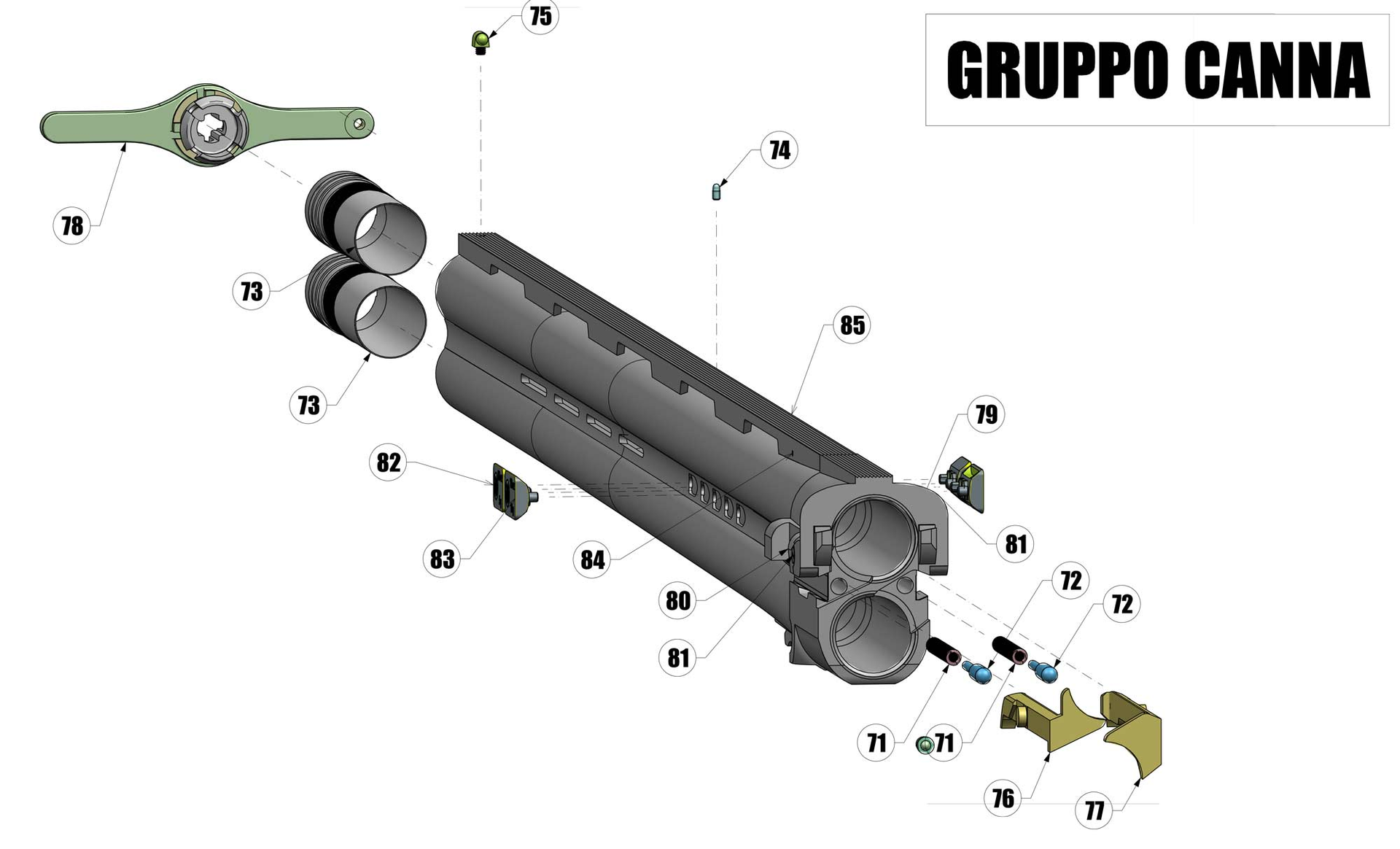

12G barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 72 | |||
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | |||
| 77 | |||
| 78 | |||
| 79 | |||
| 80 | |||
| 81 | |||
| 82 | |||
| 84 | |||
| 85 | C5G352 | Not Available | CARBON RIB UPPER SPORTING L 76 cm 10X10 DT11 BLACK SPORTING |

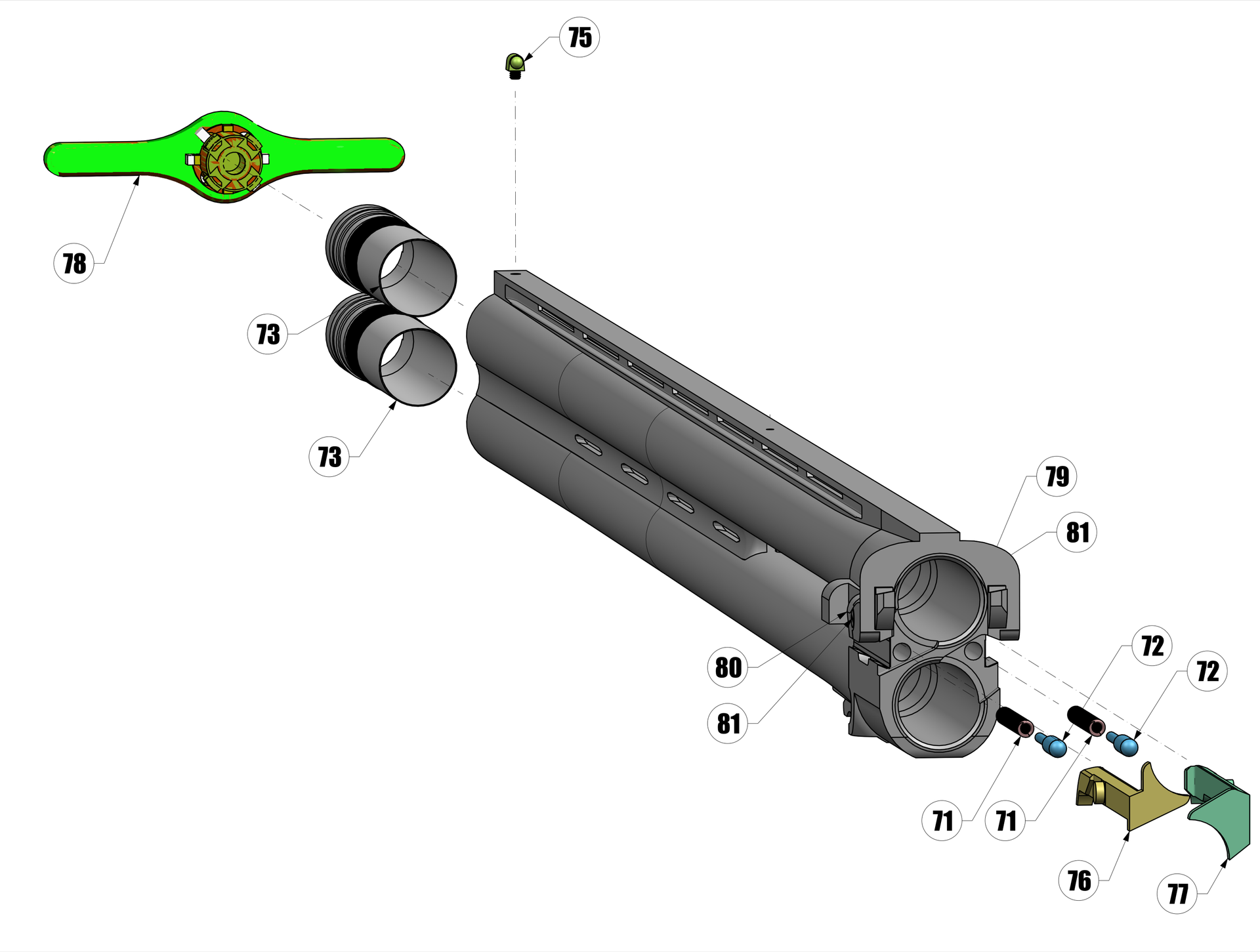

20G sub-gauge barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 71 | |||
| 75 | |||
| 751 | |||
| 78 | |||
| 73 | |||
| 79 | |||
| 80 |

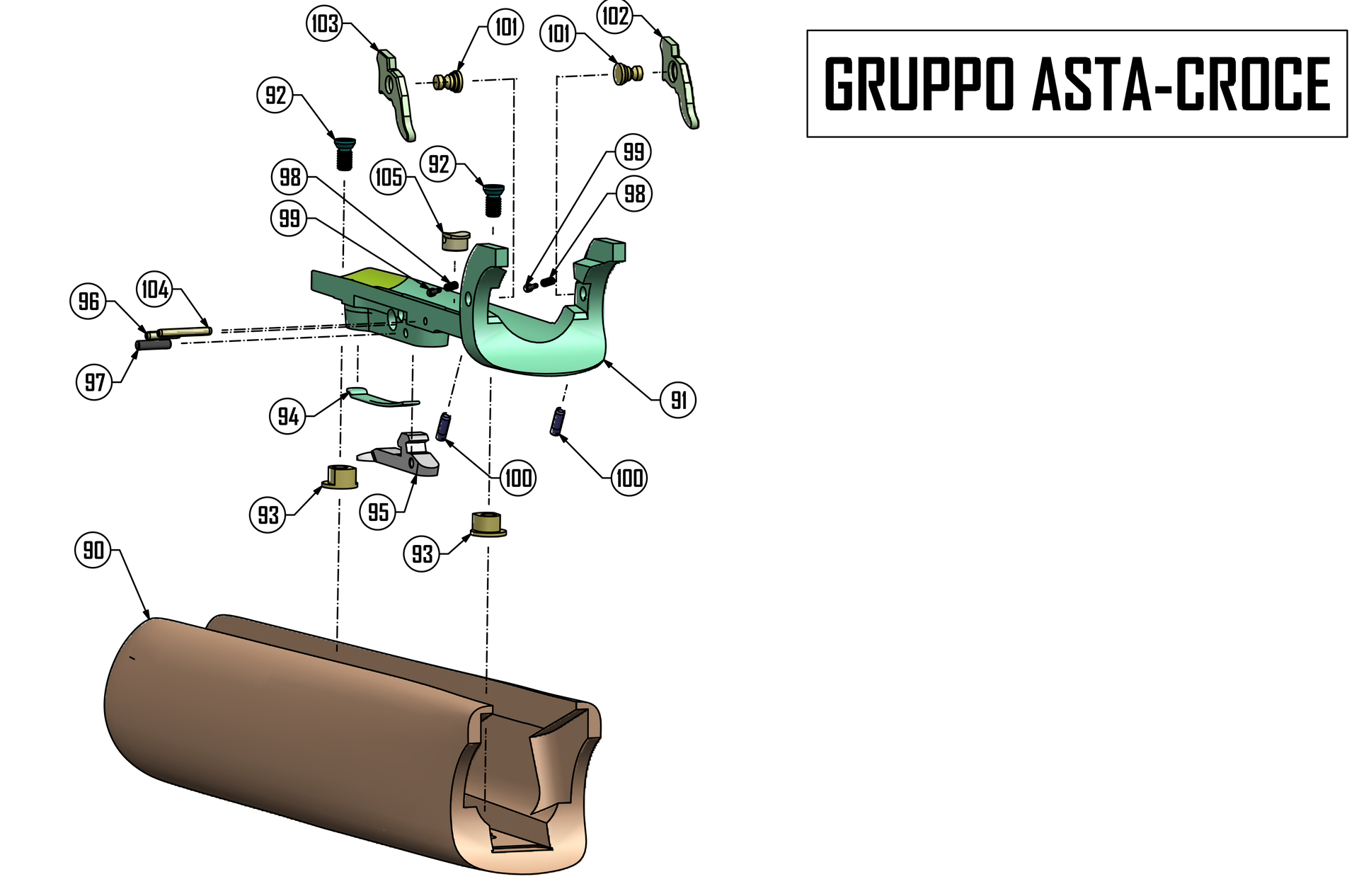

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 100 | C95180 | Not Available | FOREND IRON LEVER PIN DT11 DT10 ASE90 ASE GOLD |
| 101 | C59199 | Not Available | FOREND LEVER PIN DT11 BLACK |
| 102 | C5H840 | Not Available | FOREND IRON LEVER LEFT SX DT11 |
| 104 | C97067 | Not Available | ELASTIC PIN 2X16 DT11 DT10 |
| 105 | |||
| 90 | C5E086C8A646C8A648C8A649C8A650C8A651C8A770C8A771C8A772C8A834C8A835 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | FOREND SCHNABEL OIL FINISH CLASS 3 DT11 GA 12 SET STOCK PISTOL GRIP 38/60 RIGHT HAND RH DX OIL FINISH CLASS 3 AND FOREND - DT11 BLACK SPORTING GA 12 SET STOCK PISTOL GRIP LEFT HAND LH SX 35/56 OIL FINISH CLASS 3 AND FOREND SCHNABEL - DT11 SPORTING BLACK EDITION GA 12 SET STOCK PISTOL GRIP 38/60 LEFT HAND LH SX OIL FINISH CLASS 3 AND FOREND SCHNABEL - DT11 BLACK SPORTING GA 12 SET STOCK HEADED SPORTING RIGHT HAND RH DX CLASS 3 AND FOREND SCHNABEL OIL GINISH - DT11 BLACK EDITION GA 12 SET STOCK HEADED LEFT HAND LH SX CLASS 3 AND FOREND SCHNABEL OIL FINISH - DT11 BLACK EDITION SPORTING GA 12 SET STOCK PISTOL GRIP 35/56 RIGHT HAND RH DX OIL FINISH CLASS 3 AND FOREND ROUND - DT11 BLACK SPORTING GA 12 SET STOCK PISTOL GRIP 35/56 RIGHT HAND RH DX OIL FINISH CLASS 3 AND FOREND SCHNABEL - DT11 BLACK SPORTING GA 12 SET STOCK PISTOL GRIP 38/60 RIGHT HAND RH DX OIL GIFINISH CLASS 3 AND FOREND SCHNABEL - DT11 SPORTING BLACK GA 12 SET STOCK PISTOL GRIP ADJUSTABLE BFAST RIGHT HAND RH DX OIL FINISH CLASS 3 AND FOREND ROUND - DT11 SPORTING AND DT11 BLACK SPORTING GA 12 SET STOCK LEFT HAND LH SX ADJUSTABLE BFAST OIL FINISH CLASS 3 AND ROUND FOREND DT11 SPORTING AND DT11 BLACK SPORTING GA 12 |
| 91 | C8A621 | Not Available | FOREND IRON ASSY - DT11 GA 12 |
| 92 | |||
| 93 | |||
| 94 | |||
| 95 | C5E530 | Not Available | FOREND IRON CATCH DT11 |
| 96 | |||
| 97 | |||
| 98 | |||
| 99 |

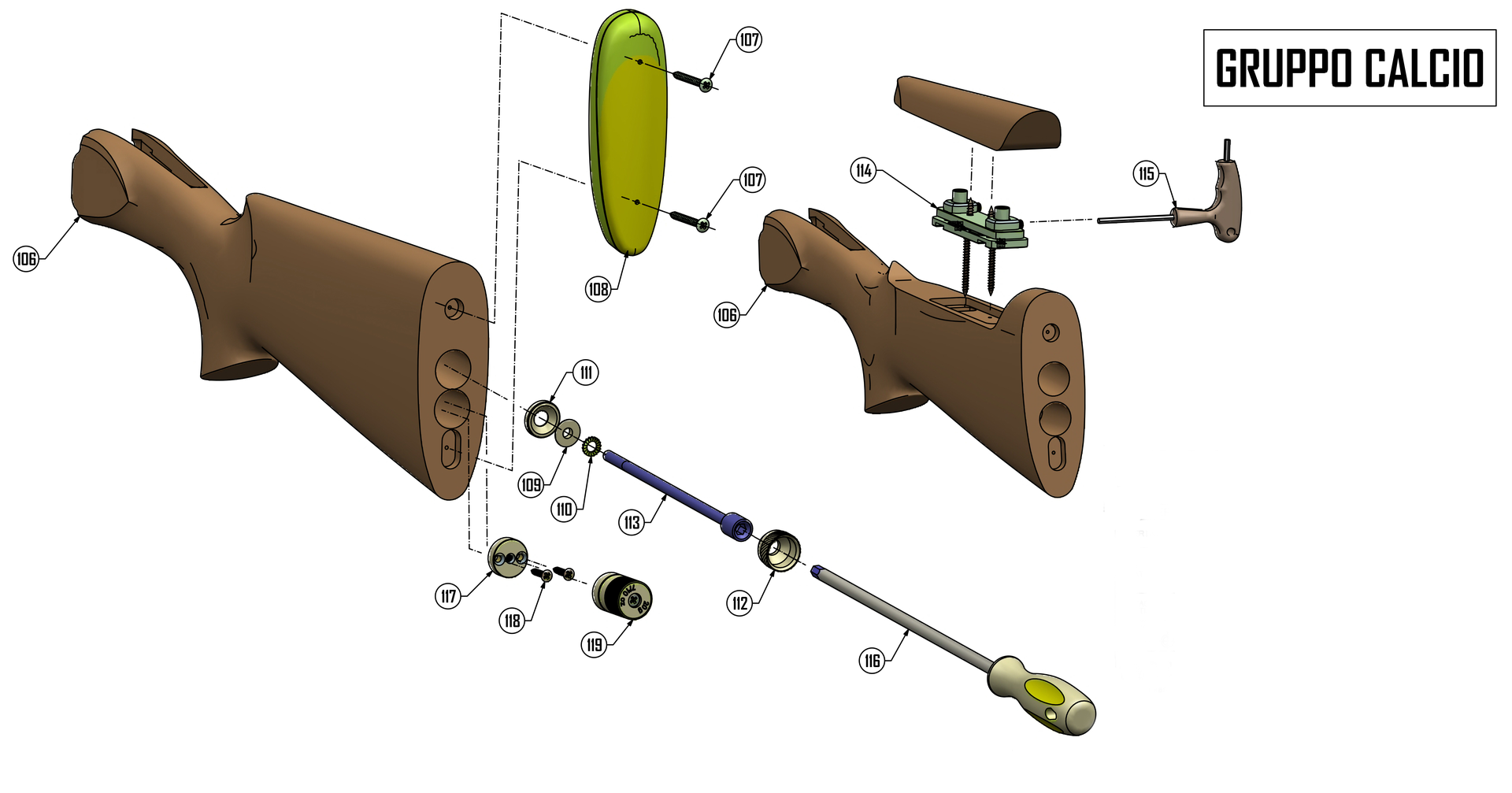

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 106 | C46515C8A646C8A648C8A649C8A650C8A651C8A770C8A771C8A772C8A806C8A807C8A826C8A834C8A835 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | HEADED STOCK RIGHT HAND RH DX CLASS 3 GA 12 DT11 SET STOCK PISTOL GRIP 38/60 RIGHT HAND RH DX OIL FINISH CLASS 3 AND FOREND - DT11 BLACK SPORTING GA 12 SET STOCK PISTOL GRIP LEFT HAND LH SX 35/56 OIL FINISH CLASS 3 AND FOREND SCHNABEL - DT11 SPORTING BLACK EDITION GA 12 SET STOCK PISTOL GRIP 38/60 LEFT HAND LH SX OIL FINISH CLASS 3 AND FOREND SCHNABEL - DT11 BLACK SPORTING GA 12 SET STOCK HEADED SPORTING RIGHT HAND RH DX CLASS 3 AND FOREND SCHNABEL OIL GINISH - DT11 BLACK EDITION GA 12 SET STOCK HEADED LEFT HAND LH SX CLASS 3 AND FOREND SCHNABEL OIL FINISH - DT11 BLACK EDITION SPORTING GA 12 SET STOCK PISTOL GRIP 35/56 RIGHT HAND RH DX OIL FINISH CLASS 3 AND FOREND ROUND - DT11 BLACK SPORTING GA 12 SET STOCK PISTOL GRIP 35/56 RIGHT HAND RH DX OIL FINISH CLASS 3 AND FOREND SCHNABEL - DT11 BLACK SPORTING GA 12 SET STOCK PISTOL GRIP 38/60 RIGHT HAND RH DX OIL GIFINISH CLASS 3 AND FOREND SCHNABEL - DT11 SPORTING BLACK GA 12 STOCK PISTOL GRIP 38/60 RIGHT HAND RH DX OIL FINISH CLASS 3 DT11 SPORTING GA 12 STOCK PISTOL GRIP 38/60 LEFT HAND LH SX OIL FINISH CLASS 3 - DT11 SPORTING GA 12 STOCK PISTOL GRIP ADJUSTABLE BFAST 38/60 RIGHT HAND RH DX OIL FINISH CLASS 3 - DT11 SPORTING GA 12 SET STOCK PISTOL GRIP ADJUSTABLE BFAST RIGHT HAND RH DX OIL FINISH CLASS 3 AND FOREND ROUND - DT11 SPORTING AND DT11 BLACK SPORTING GA 12 SET STOCK LEFT HAND LH SX ADJUSTABLE BFAST OIL FINISH CLASS 3 AND ROUND FOREND DT11 SPORTING AND DT11 BLACK SPORTING GA 12 |
| 107 | |||
| 108 | E73021E73029 | Not Available Not Available | RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 13mm RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 28mm |
| 109 | |||
| 110 | |||
| 111 | |||
| 112 | C53949 | Not Available | BUSH STOCK KEY GUIDE 12 GA S682 |
| 113 | |||
| 114 | |||
| 115 | |||
| 116 | |||
| 117 | |||
| 118 | |||
| 119 |

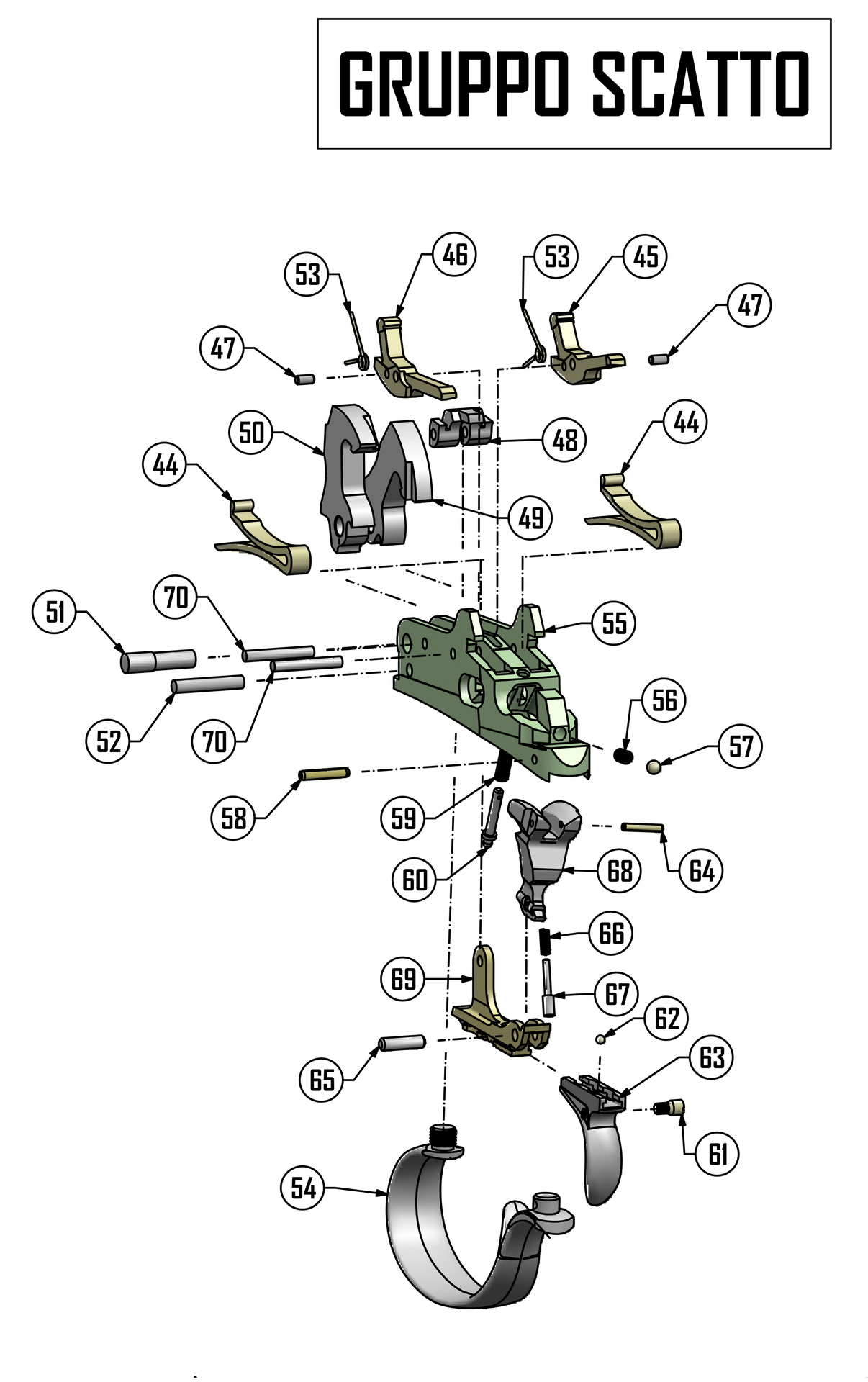

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | C58207 | Not Available | MOLDING 486 |
| 49 | C55179 | Not Available | HAMMER |
| 50 | C55178 | Not Available | HAMMER |
| 51 | |||
| 52 | |||
| 53 | |||
| 54 | C5E479 | Not Available | TRIGGER GUARD DT11 GA 12 |
| 56 | C90326 | Not Available | SPRING |
| 57 | |||
| 58 | |||
| 59 | C90521 | Not Available | TRIGGER SPRING DT10 TRIDENT - DT11 GA 12 |
| 60 | |||
| 61 | |||
| 62 | |||
| 63 | C5E494C8A618 | Not Available Not Available | ADJ TIGGER DT11 ADJUSTABLE TRIGGER ASSY STANDARD CENTRAL FOR DT11 |
| 64 | C97191 | Not Available | ELASTIC PIN - DT11 GA 12 |
| 65 | C92241 | Not Available | PIN |
| 66 | |||
| 67 | |||
| 68 | |||
| 69 | C5E529 | Not Available | TRIGGER SUPPORT - DT11 GA 12 |
| 70 | C92237 | Not Available | TRIGGER PIN - ASE 90 - ASE GOLD - DT10 TRIDENT GA 12 |
