Beretta A400 Ultralite 12G Parts Guide
8 exploded diagrams, exact Beretta codes and linked spare parts for Beretta A400 Ultralite 12G.

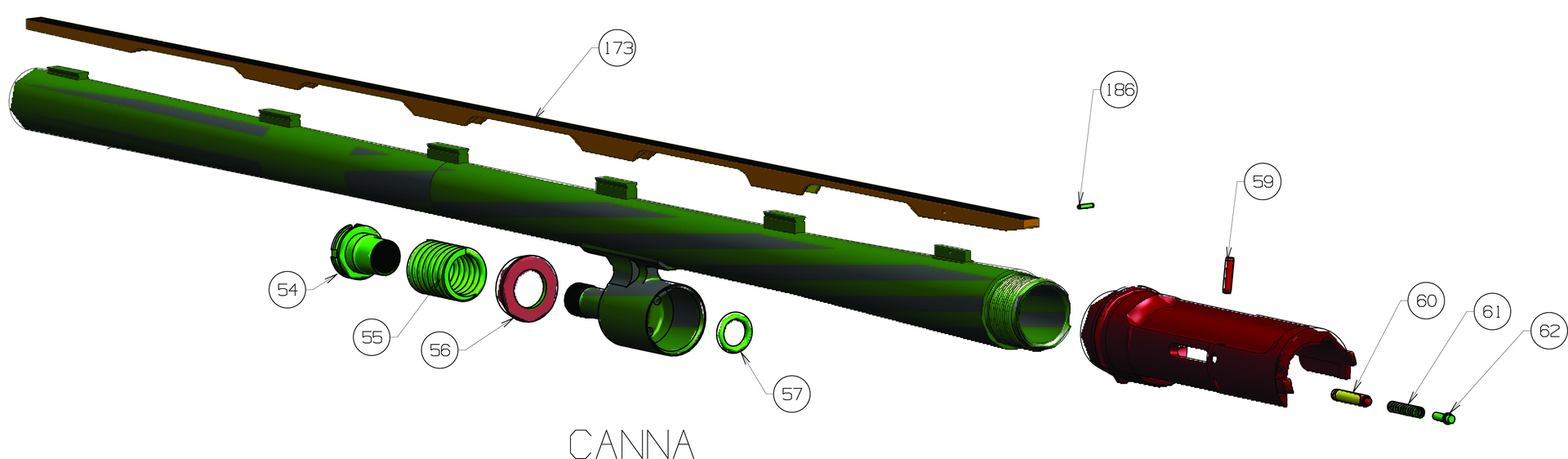

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 173 | C5G491C5G519C5G520C5G521C5G522C5H092C5H093C5H094C7A703C7A704C7A705C7A706C7A707C7A710 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | RIB CARBON A400 ULTRALITE AND A400 BLACK GA 12 7X7 FLAT LENGTH 66CM RIB CARBON A400 ULTRALITE AND A400 BLACK GA 12 7X7 FLAT LENGTH 71CM RIB CARBON A400 ULTRALITE AND A400 BLACK GA 12 7X7 FLAT LENGTH 76CM RIB CARBON A400 ULTRALITE GA 12 7X7 FLAT LENGTH 61CM RIB CARBON A400 ULTRALITE GA 12 7X7 FLAT LENGTH 81CM RIB CARBON A400 ULTRALITE GA 12 10X10 FLAT LENGTH 71CM RIB CARBON A400 ULTRALITE GA 12 10X10 FLAT LENGTH 76CM RIB CARBON A400 ULTRALITE GA 12 10X10 FLAT LENGTH 81CM A400 ULTRALITE 12ga CARBON RIB 7x7 - 61cm A400 ULTRALITE 12ga CARBON RIB 7x7 - 66cm A400 ULTRALITE 12ga CARBON RIB 7x7 - 71cm A400 ULTRALITE 12ga CARBON RIB 7x7 - 76cm A400 ULTRALITE 12ga CARBON RIB 7x7 - 81cm A400 XCEL SPORTING 12ga CARBON RIB 10x10 - 81cm |
| 54 | |||
| 55 | |||
| 56 | |||
| 57 | |||
| 59 | C92287 | Not Available | EJECTOR SPRING A400 |
| 60 | C5F324 | Not Available | EJECTOR A400 XPLOR ACTION GA 20 - GA 28 |
| 61 | |||
| 62 | |||
| 621 |

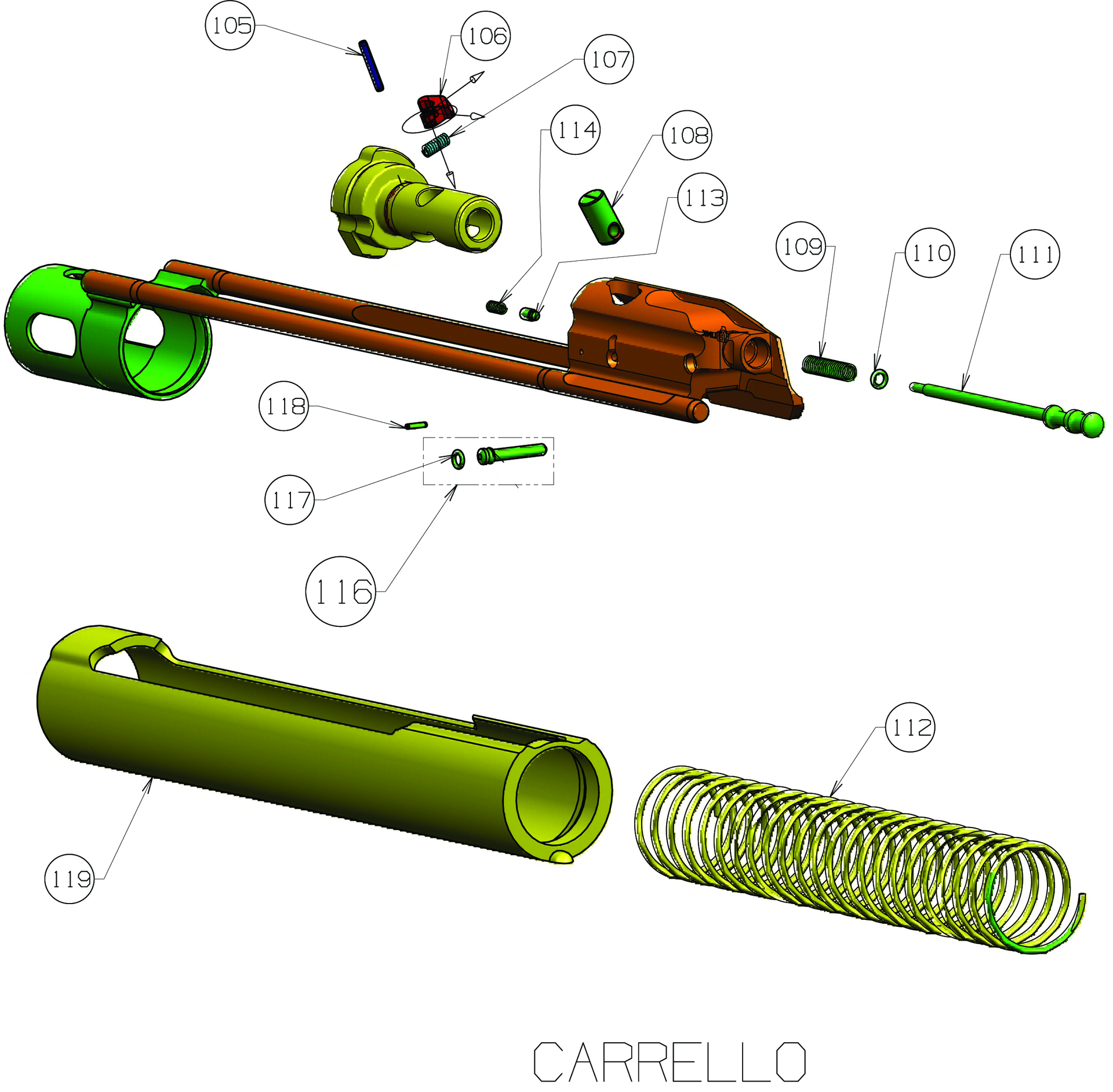

Bolt
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 105 | |||
| 106 | C59922 | Not Available | EJECTOR A400 |
| 107 | |||
| 108 | |||
| 109 | |||
| 111 | |||
| 112 | |||
| 113 | |||
| 114 | |||
| 116 | |||
| 117 | |||
| 118 | |||
| 119 |

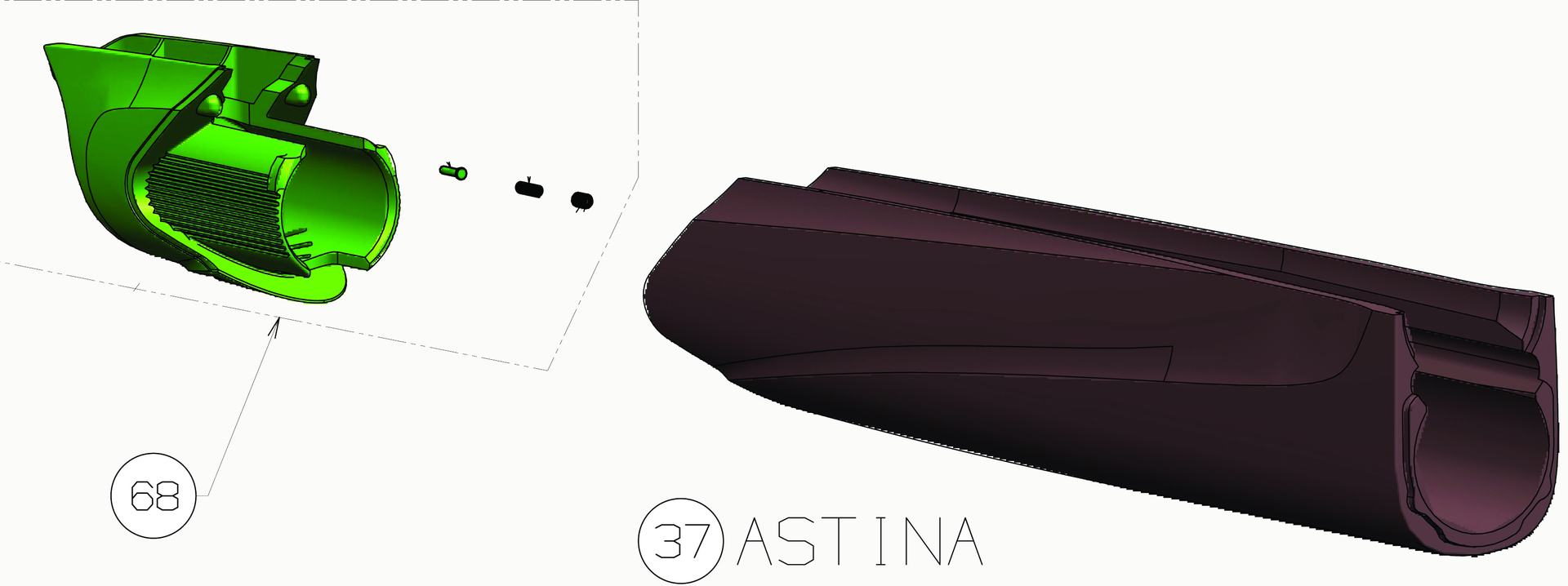

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 37 | C8C690 | Not Available | FOREND ASSY OIL FINISH - A400 ULTRALITE GA 12 |
| 68 | C8A040 | Not Available | FOREND COVER ASSY A400 XPLOR GA 12 |

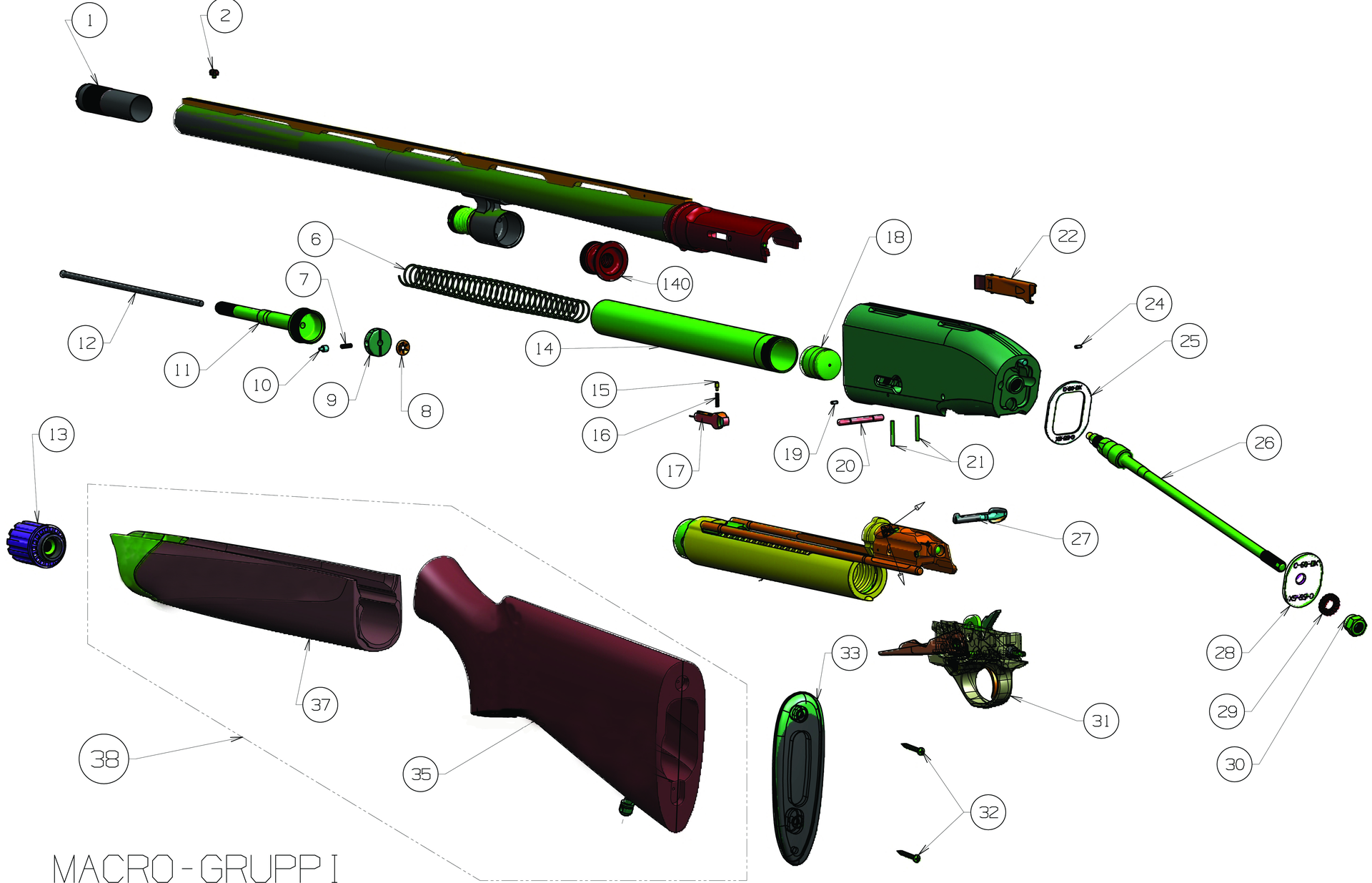

Main parts
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | C62070C62071C62072C62073C62074 | Not Available Not Available Not Available Not Available Not Available | OCHP12 FLUSH - F OCHP12 FLUSH - IM OCHP12 FLUSH - M OCHP12 FLUSH - IC OCHP12 FLUSH - C |
| 2 | |||
| 10 | |||
| 11 | |||
| 12 | C5B984C5B985 | Not Available Not Available | MAGAZINE REDUCER 1 SHOT - A400 ACTION CAL 12 - 20 - 28 MAGAZINE REDUCER 2 SHOTS - A400 ACTION GA 12 - 20 - 28 |
| 13 | |||
| 14 | C5D196 | Not Available | MAGAZINE TUBE FOR A400 XPLOR GA12 |
| 140 | |||
| 15 | |||
| 16 | C90377 | Not Available | CARTRIDGE LATCH SPRING - SAFETY SPRING SERIE A400 GA 12 AND GA 20 |
| 17 | C89290 | Not Available | CUT OFF ASSY FOR SERIE A400 GA 12 20 28 |
| 20 | |||
| 21 | |||
| 22 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 35 | |||
| 37 | C8C690 | Not Available | FOREND ASSY OIL FINISH - A400 ULTRALITE GA 12 |
| 38 | C8C674 | Not Available | SET STOCK PISTOL GRIP WITH SWIVEL SUPPORT OIL FINISH AND FOREND - A400 ULTRALITE GA 12 |
| 6 | |||
| 7 | |||
| 8 | C97192 | Not Available | MAGAZINE REDUCE PLUG RETAINING WASHER 12/20 GA AL391 - A400 |
| 9 |

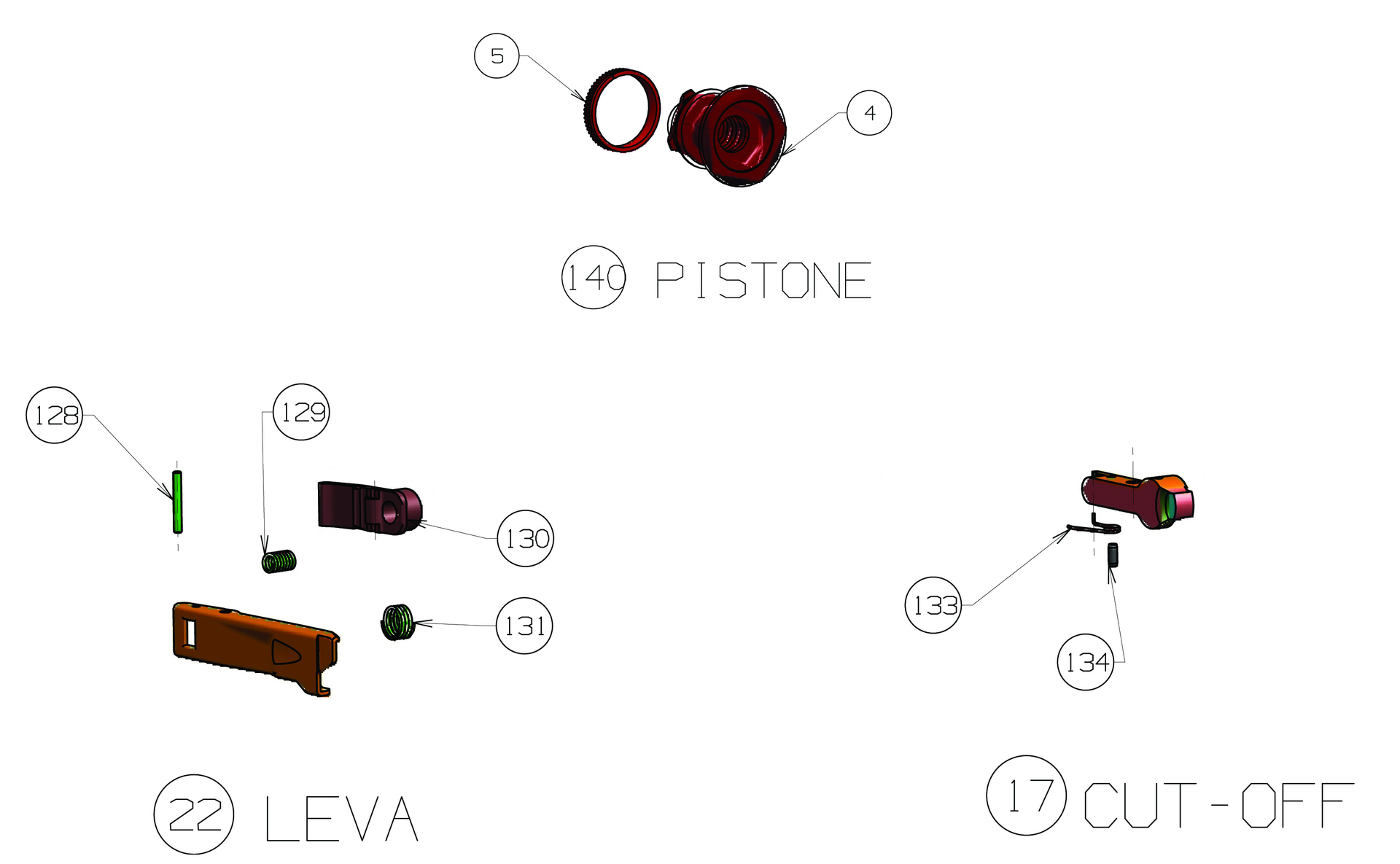

Piston / operating lever
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 128 | C92212 | Not Available | CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20 |
| 129 | |||
| 130 | |||
| 131 | |||
| 133 | |||
| 134 | |||
| 140 | |||
| 17 | C89290 | Not Available | CUT OFF ASSY FOR SERIE A400 GA 12 20 28 |
| 22 | |||
| 4 | C5D198 | Not Available | PISTON |
| 5 |

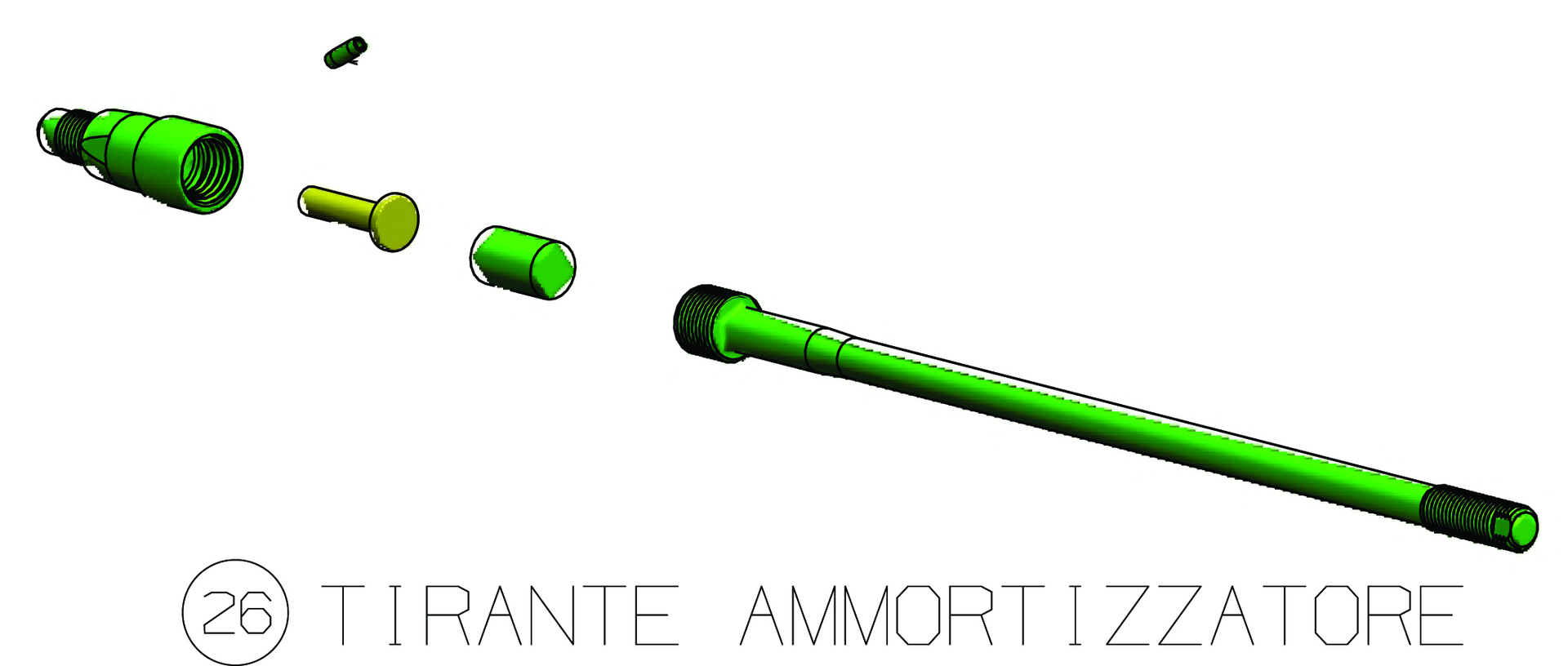

Stock bolt
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 26 |

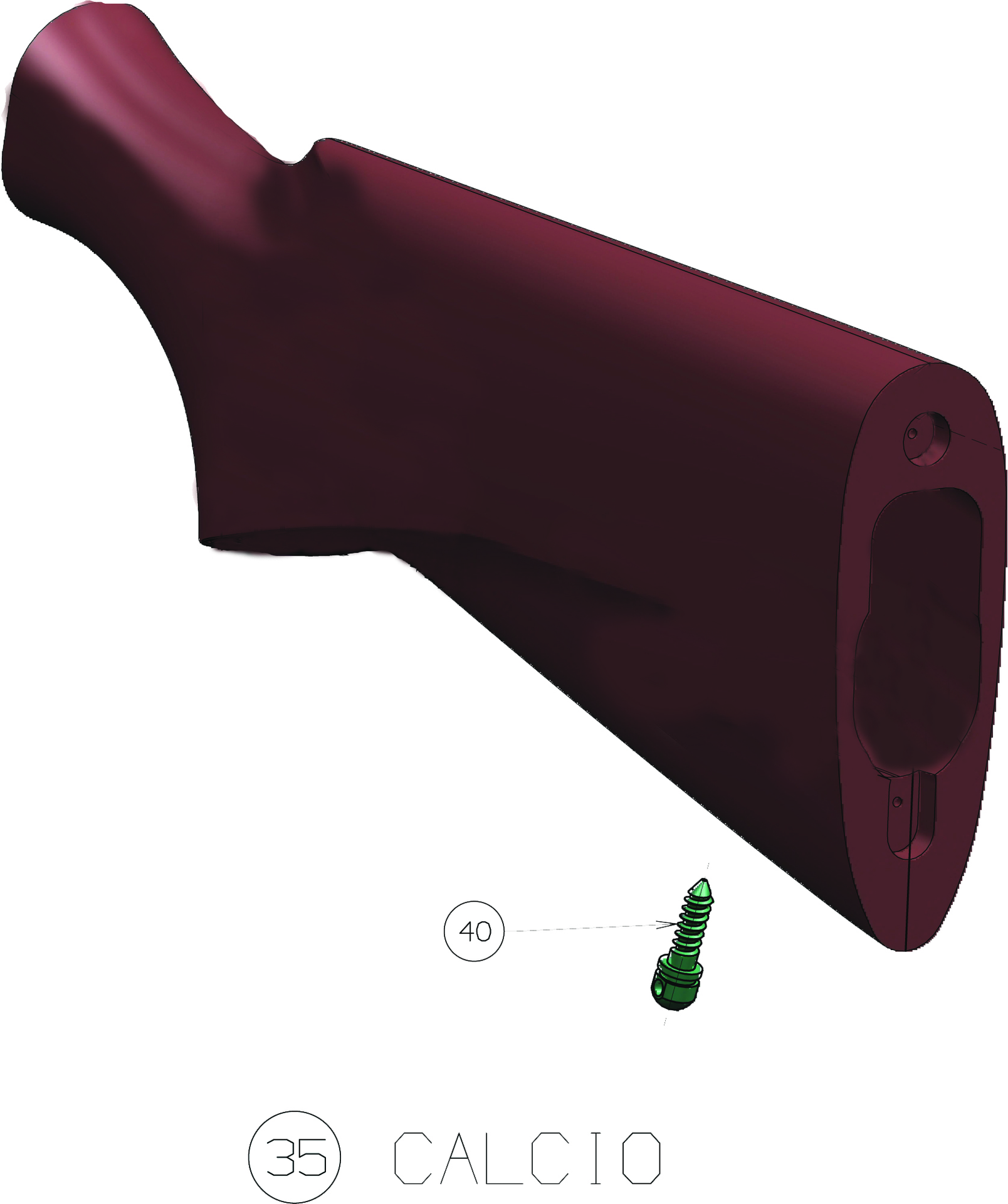

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 35 | |||
| 40 | |||
| 401 | C5G731 | Not Available | STOCK CAP A400 ULTRALITE GA 12 |

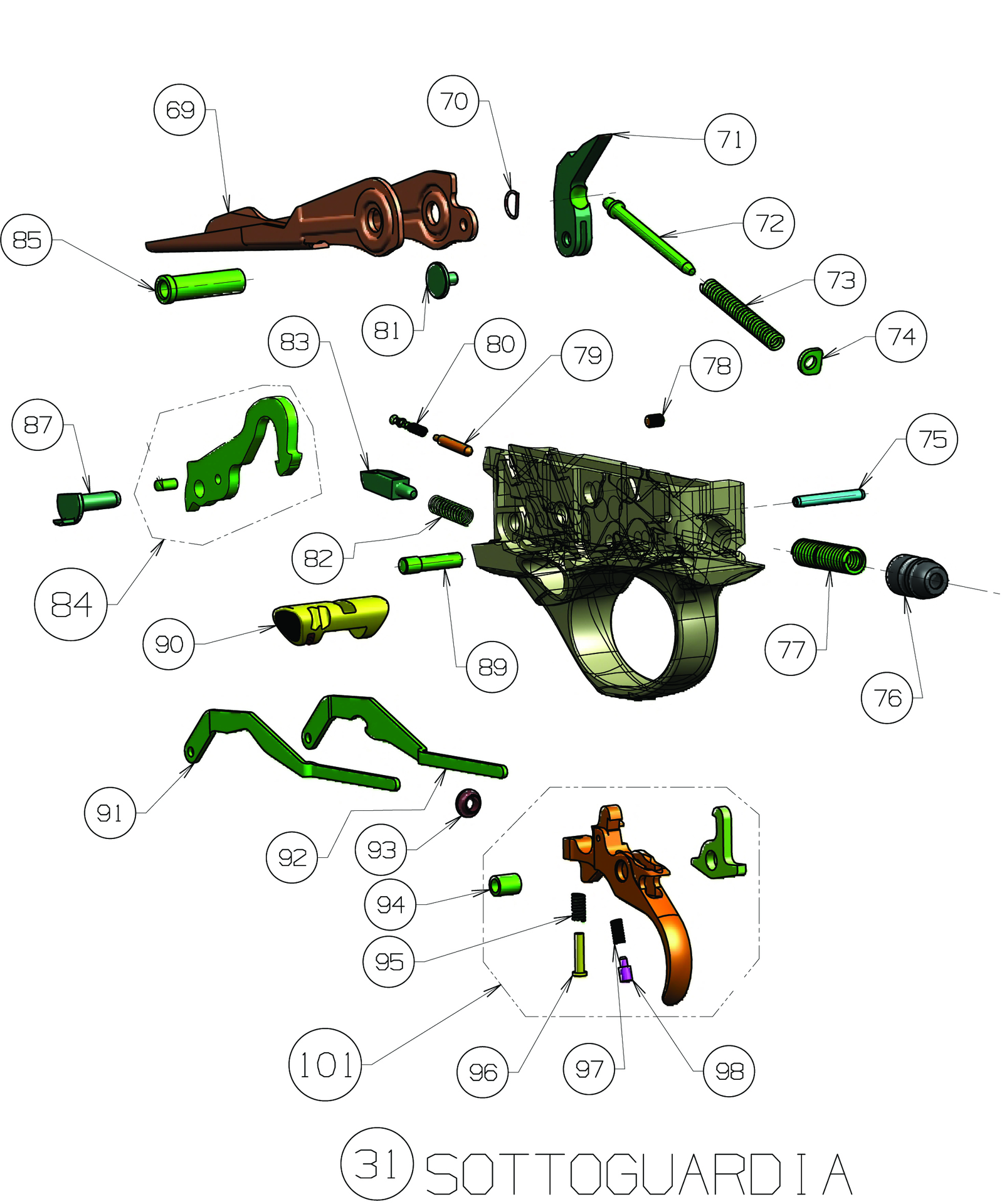

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 101 | |||
| 31 | |||
| 69 | |||
| 71 | |||
| 72 | C5D533 | Not Available | ELEVATOR LEVER SPRING GUIDE A400 |
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | C5B992 | Not Available | HAMMER SPRING GUIDE 12 GA A400 |
| 77 | |||
| 78 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 79 | |||
| 80 | |||
| 81 | |||
| 82 | C95323 | Not Available | ELEVATOR STOP PIN SPRING A400 |
| 83 | |||
| 84 | C7E421 | Not Available | HAMMER ASSY - AX800 GA 12 / A400L GA 12 |
| 85 | |||
| 87 | C92213 | Not Available | HAMMER PIN |
| 89 | C5F383 | Not Available | TRIGGER PIN A400 ACTION |
| 90 | C5D323 | Not Available | SAFETY AMBIDEXTROUS A400 ACTION, NOVATOR, A400 LITE, A400 XTREME, A400 ACTION LEFT HAND LH SINISTRO SX |
| 91 | |||
| 92 | |||
| 93 | C5D426 | Not Available | HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20 |
| 94 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 95 | |||
| 96 | C5D697 | Not Available | TRIGGER SPRING GUIDE A400 |
| 97 | |||
| 98 |
