Beretta A300 Outlander Synthetic Parts Guide
7 exploded diagrams, exact Beretta codes and linked spare parts for Beretta A300 Outlander Synthetic.

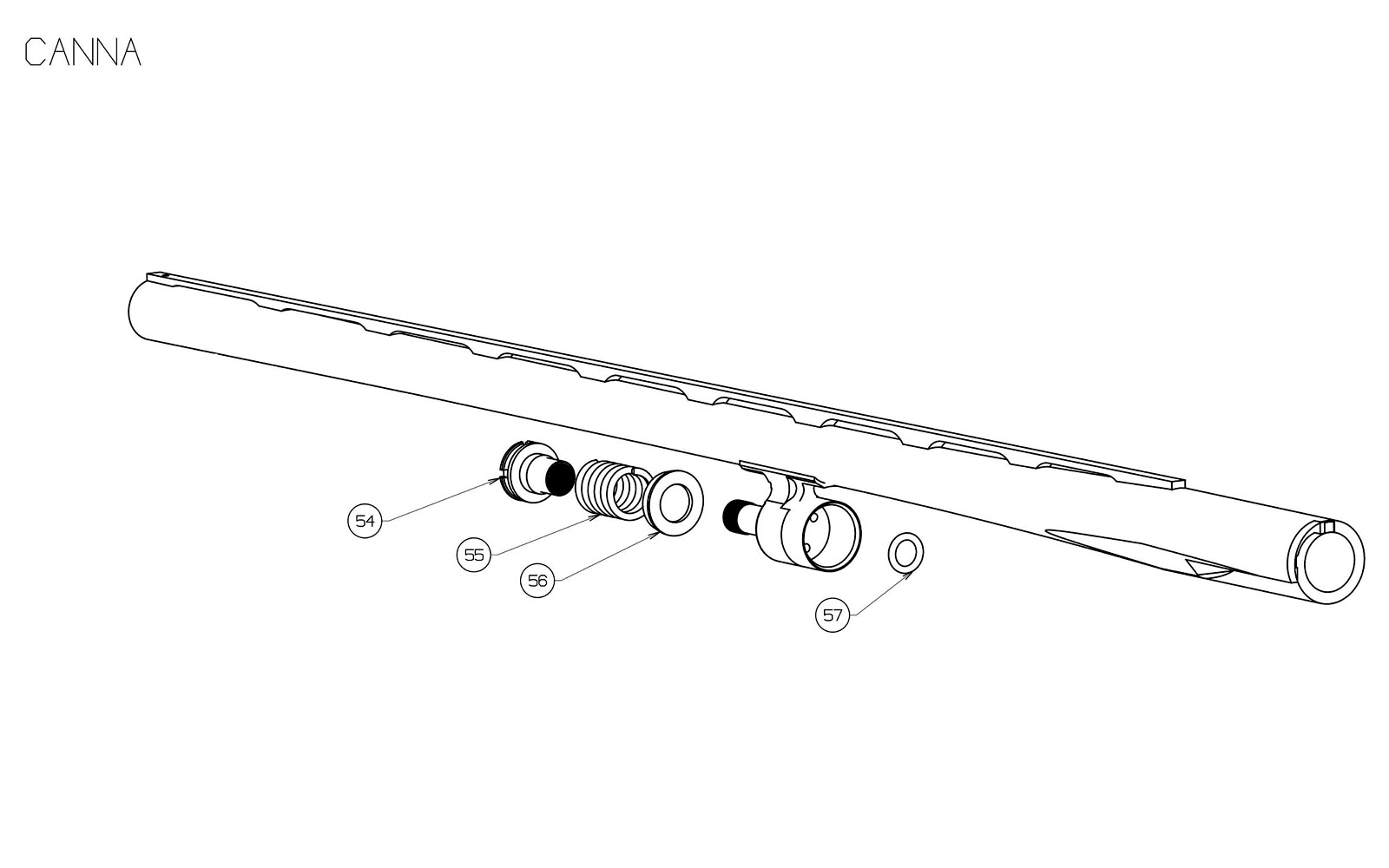

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 54 | C5E546 | Not Available | VALVE RING FOR BARRELS 61CM AND 66CM - A300 OUTLANDER GA 12 |
| 55 | C90390 | Not Available | VALVE SPRING |
| 56 | |||
| 57 |

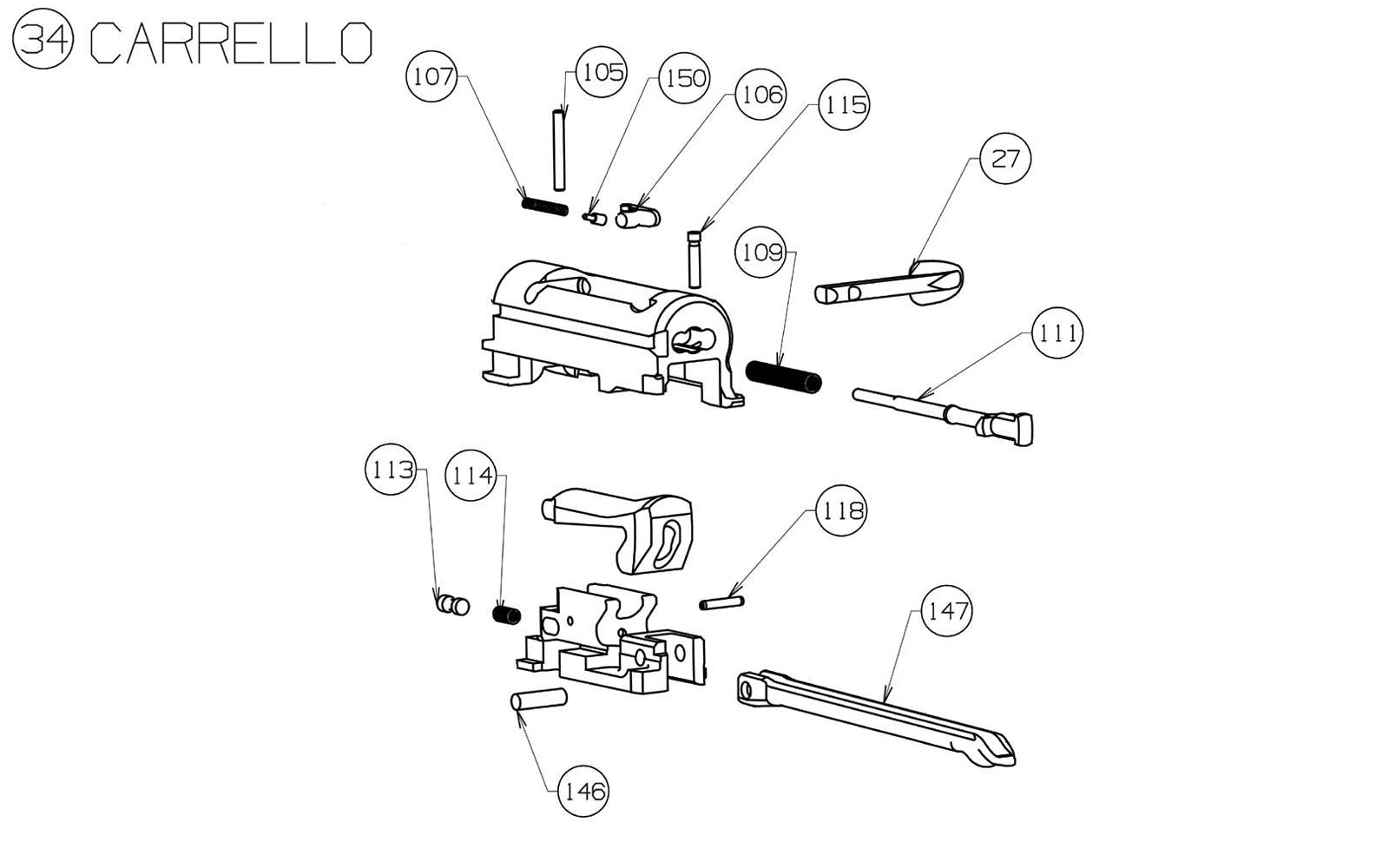

Bolt / slide
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 105 | |||
| 106 | |||
| 107 | |||
| 109 | |||
| 111 | |||
| 113 | |||
| 115 | |||
| 118 | |||
| 146 | |||
| 147 | |||
| 150 | |||
| 27 | C59216 | Not Available | COCKING HANDLE - AL391 / A300 OUTLANDER GA 12 |
| 34 | C8A412 | Not Available | SLIDE ASSY |

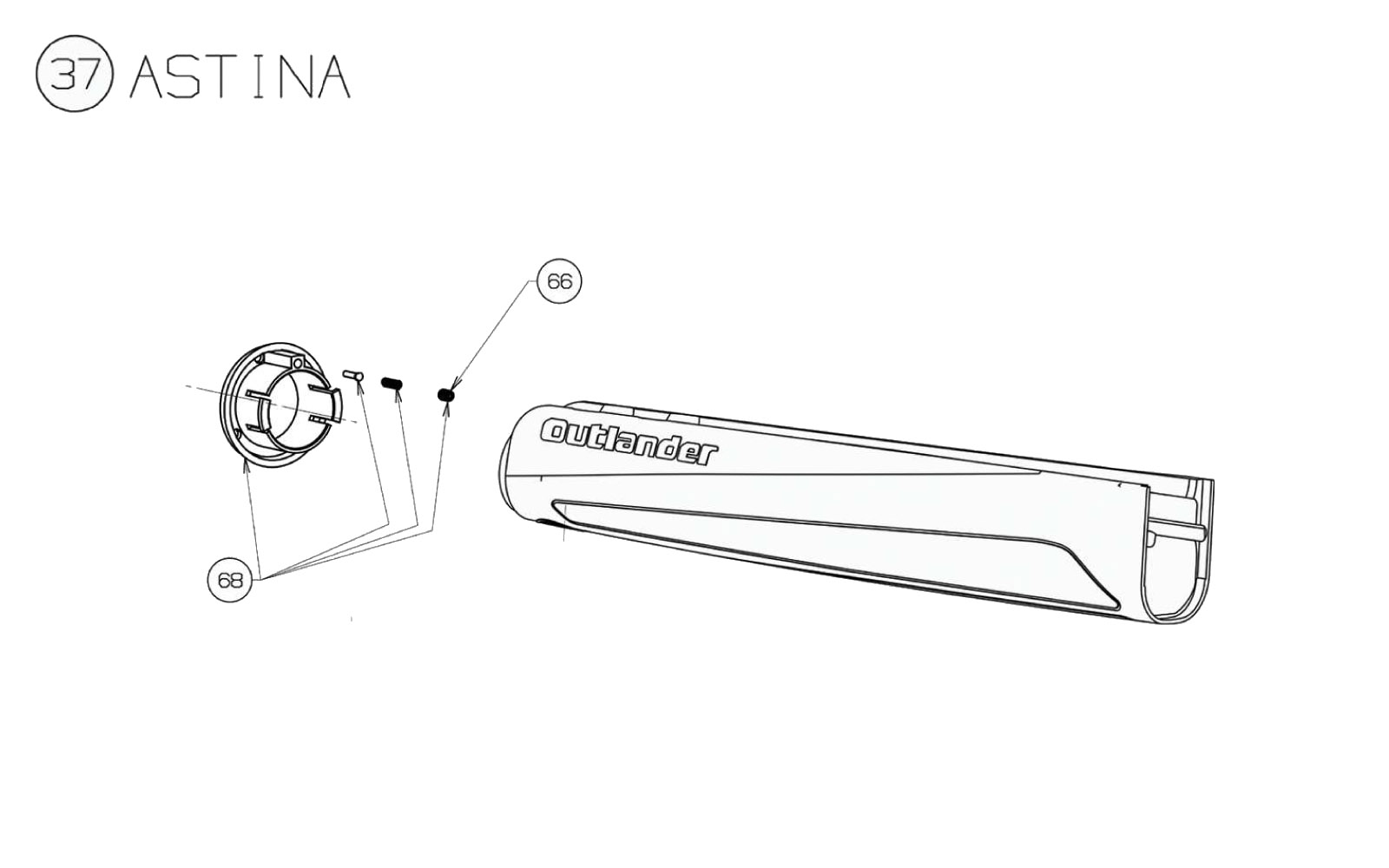

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 37 | |||
| 66 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 68 |

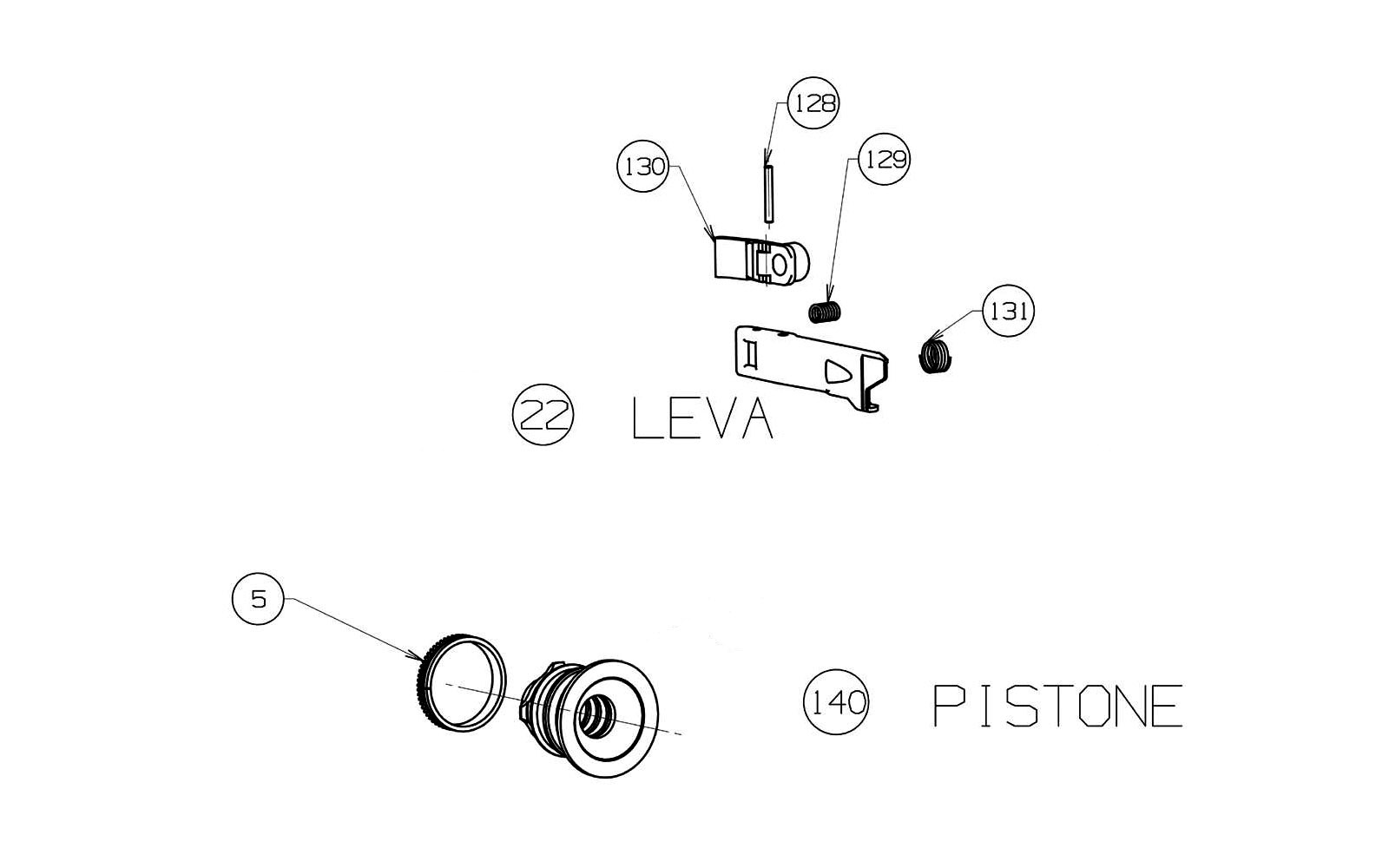

Lever and piston
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 128 | C92212 | Not Available | CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20 |
| 129 | |||
| 130 | C5D695 | Not Available | CARTRIDGE LATCH BODY |
| 131 | |||
| 140 | |||
| 22 | C89058 | Not Available | CARTRIDGE LATCH ASSY A400 3" GA 12 |
| 5 |

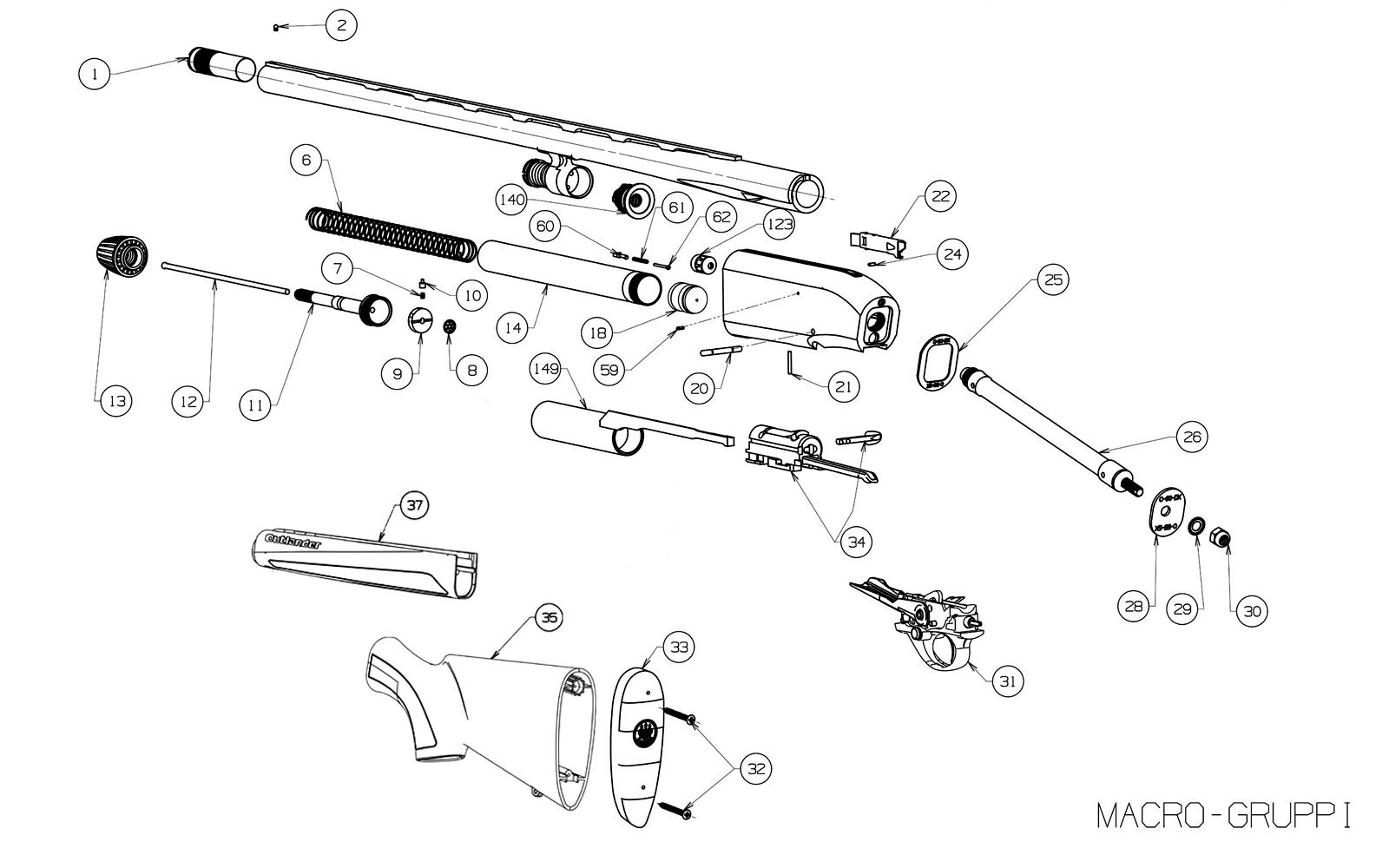

Overview
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 01 | |||
| 02 | |||
| 06 | |||
| 07 | |||
| 08 | C97192 | Not Available | MAGAZINE REDUCE PLUG RETAINING WASHER 12/20 GA AL391 - A400 |
| 09 | |||
| 10 | |||
| 11 | |||
| 12 | C5B984C5B985 | Not Available Not Available | MAGAZINE REDUCER 1 SHOT - A400 ACTION CAL 12 - 20 - 28 MAGAZINE REDUCER 2 SHOTS - A400 ACTION GA 12 - 20 - 28 |
| 123 | |||
| 13 | |||
| 14 | C5D196 | Not Available | MAGAZINE TUBE FOR A400 XPLOR GA12 |
| 140 | |||
| 149 | |||
| 18 | C5D834 | Not Available | MAGAZINE TUBE COVER A400 XPLOR CAL 12 |
| 20 | |||
| 21 | |||
| 22 | C89058 | Not Available | CARTRIDGE LATCH ASSY A400 3" GA 12 |
| 24 | |||
| 25 | |||
| 26 | C87602 | Not Available | TUBE ASSY LIGHT WIEGHT A300 OUTLANDER GA 12 |
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | C8A275 | Not Available | TRIGGER GROUP FOR 12GA. SEMIAUTO - 3.0" |
| 32 | |||
| 33 | C53661C53721C55129 | Not Available Not Available Not Available | RECOIL PAD FIELD RUBBER BLACK FULL THIN 12MM GA 12 AND GA 20 RECOIL PAD FIELD RUBBER BLACK FULL MEDIUM 18MM 12GA AND 20GA RECOIL PAD FIELD RUBBER BLACK FULL THICK 26MM 12GA AND 20GA |
| 34 | AKF16112111111AKF16118111111BOLTC8A412 | Not Available Not Available Not Available | BOLT CHROMED SEMIAUTO A300 A300 OUTLANDER SYNTHETIC E A300 OUTLANDER WOOD GA 12 BLUED SEMIAUTO A300 A300 OUTLANDER SYNTHETIC E A300 OUTLANDER WOOD GA 12 SLIDE ASSY |
| 35 | C8C192E01191 | Not Available Not Available | STOCK A300 OUTLANDER GA 12 CAMO MAX5 STOCK SYNTHETIC CAMO MAX4 FOR A300 OUTLANDER GA 12 |
| 37 | |||
| 60 | |||
| 61 | |||
| 62 |

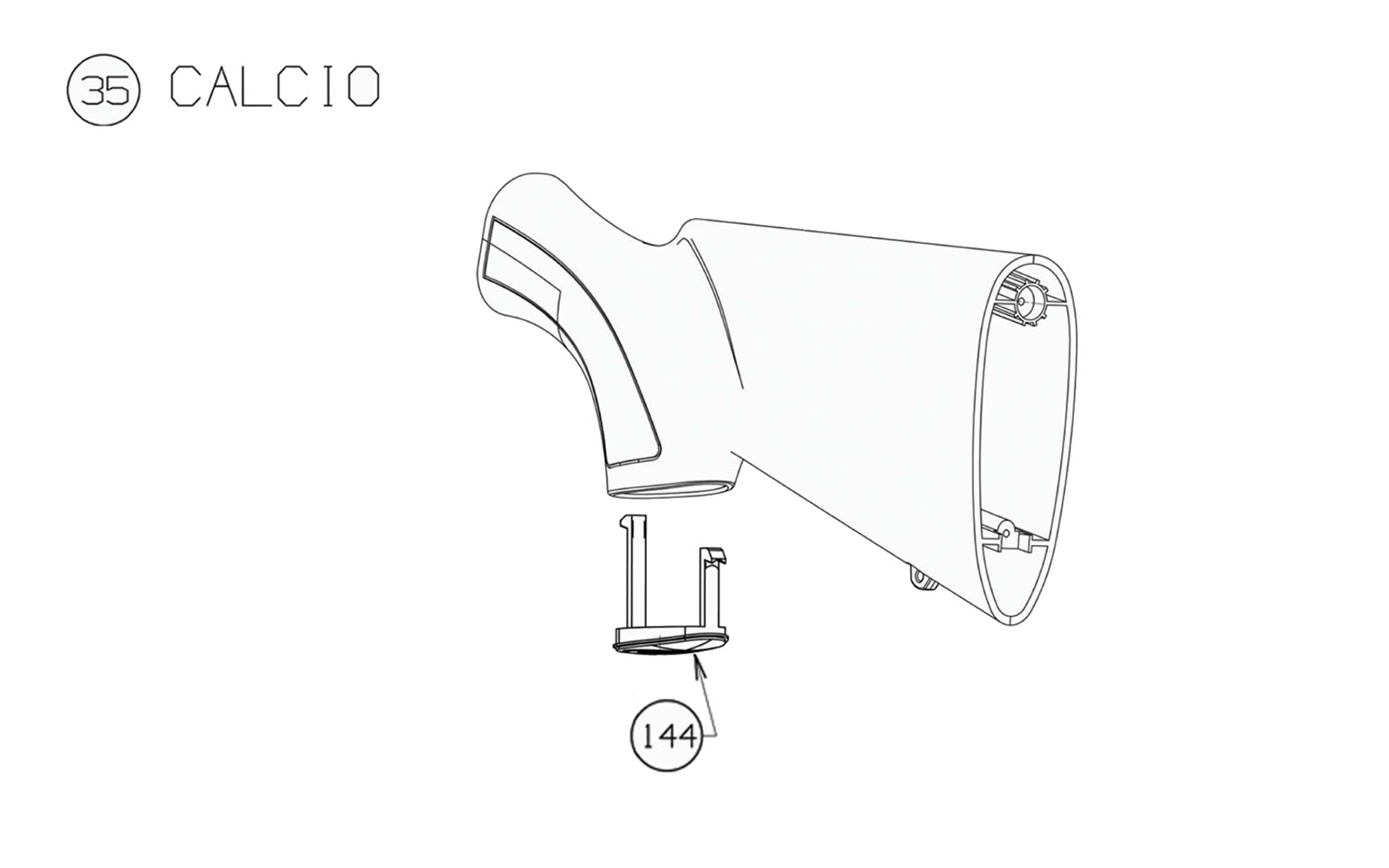

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 144 | C5E816 | Not Available | STOCK CAP A300 OUTLANDER GA 12 |
| 35 | C8C192E01191 | Not Available Not Available | STOCK A300 OUTLANDER GA 12 CAMO MAX5 STOCK SYNTHETIC CAMO MAX4 FOR A300 OUTLANDER GA 12 |

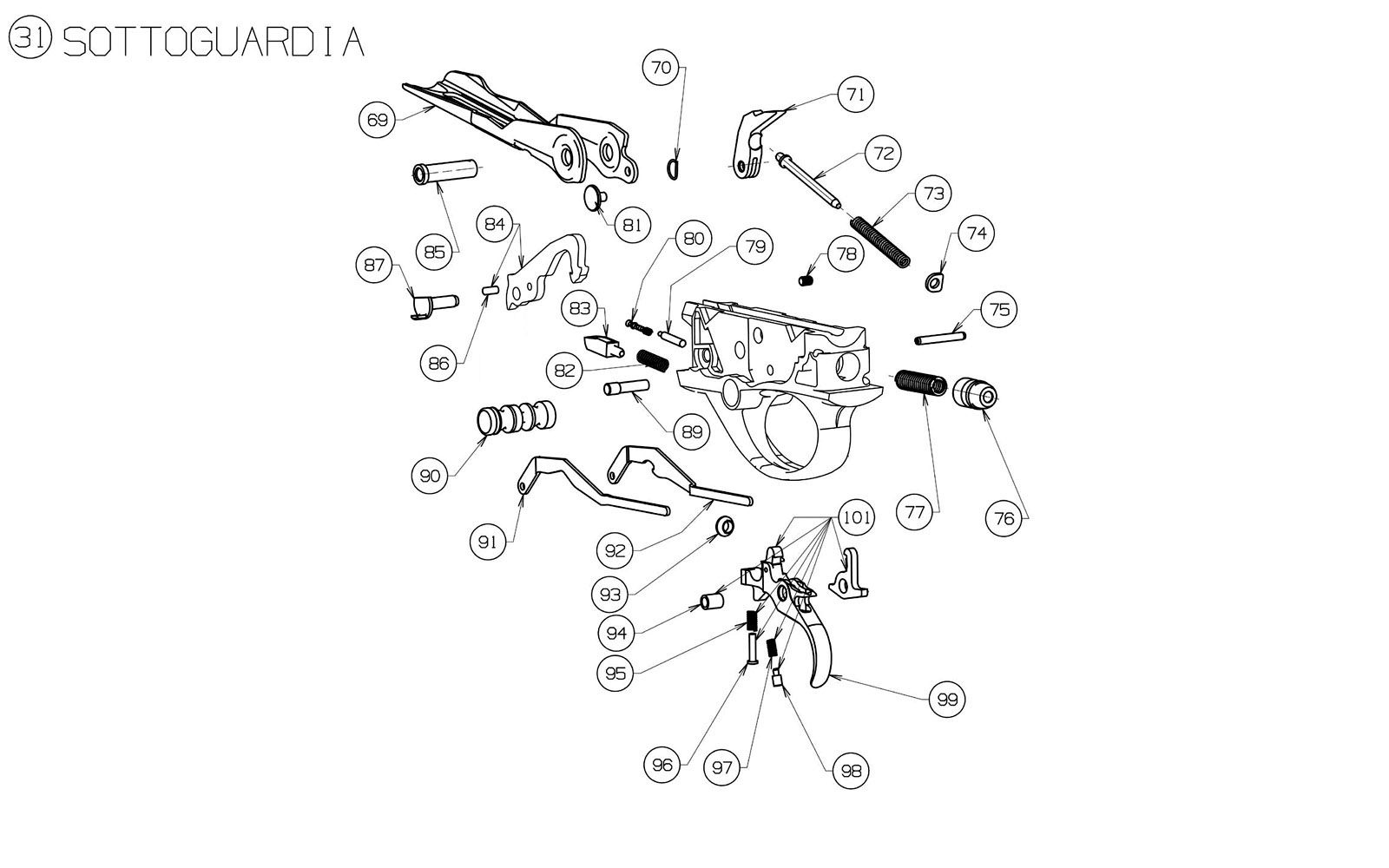

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 101 | |||
| 31 | C8A275 | Not Available | TRIGGER GROUP FOR 12GA. SEMIAUTO - 3.0" |
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | C5D533 | Not Available | ELEVATOR LEVER SPRING GUIDE A400 |
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | C5B992 | Not Available | HAMMER SPRING GUIDE 12 GA A400 |
| 77 | |||
| 78 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 79 | |||
| 80 | |||
| 81 | |||
| 82 | C95323 | Not Available | ELEVATOR STOP PIN SPRING A400 |
| 83 | |||
| 84 | C76579 | Not Available | HAMMER ASSY A300 OUTLANDER GA 12 |
| 85 | |||
| 86 | C92398 | Not Available | BRACE CONNECTION PIN A400 XPLOR |
| 87 | C92213 | Not Available | HAMMER PIN |
| 89 | |||
| 90 | C5E454 | Not Available | SAFETY AMBIDEXTROUS |
| 91 | |||
| 92 | |||
| 93 | C5D426 | Not Available | HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20 |
| 94 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 95 | |||
| 96 | C5D697 | Not Available | TRIGGER SPRING GUIDE A400 |
| 97 | |||
| 98 | |||
| 99 | C5D400 | Not Available | TRIGGER CHROMED GLOSSY A400 XPLOR GA 12 |
